Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness

I'm Online Chat Now

Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness

China Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness supplier
Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness supplier Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness supplier Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness supplier

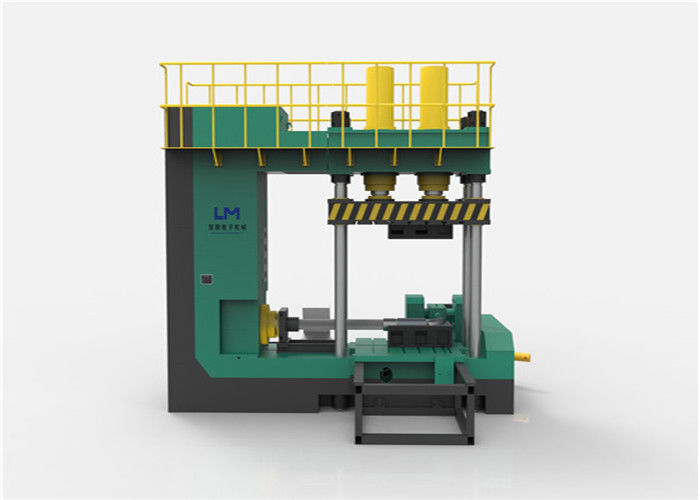

Large Image :  Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness

Product Details:

Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Contact Now
Detailed Product Description
Machine Type: Cold Push Elbow Machine Wall Thickness: 3~30mm
Main Thrust (KN): 630-12000 Work Pressure (MPa): 25
Motor Power (KW): 11-110 Radius: 1D,1.5D
Degree: 30°,45°,90° Bending Material: Carbon Steel,alloy Steel,satinless Steel
High Light:

elbow making equipment

,

cold push elbow machine

Suitable for the production of seamless 273mm diameter and welding elbow forming cold bending machine





1. Product Presentation



It includes a rack, a work table, a side work table, an oil press, a fuel tank, an electrical box and a control panel, as well as a forming die, a die lifter and a stripper.The frame is a whole frame structure.The hydraulic press includes a vertical hydraulic press arranged vertically between the columns and a horizontal hydraulic press arranged horizontally between the middle sections of the columns.The motor of the oil press is arranged in the upper part of the machine.In the upper part of the machine set up a large flow of low-pressure pump connected to the vertical pressure cylinder, so that the cylinder rapid movement.The electrical box and control board control the operation of the machine through a computer microcomputer.The utility model reduces noise and the arrangement of each component is more compact and reasonable. Cold push elbow machine itself belongs to the non-standard products, so there is no specific specifications and models, we can directly customize the cold push elbow machine according to customer requirements.Elbow diameter from 25mm-630mm, wall thickness is 3mm-30mm we can do.The main characteristic of cold push elbow machine is low cost.Each pipe fitting enterprise needs to purchase cold push elbow machine or elbow machine, which needs to be customized in advance. It will take 15~25 days for our company to make this equipment, and elbow machine should be prepared for booking in advance.



2. Product Parameter





Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Ratedworking pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000





We are specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine according to customers requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customersa?? requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.





Modular Structure Elbow Cold Forming Machine 3 - 30mm Wall Thickness 0
