Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic System And Induction Heating System Elbow Making Machines | Production Range: | 15-1420mm |
|---|---|---|---|
| Process Thicness: | 3-100mm | Bending Radius: | 1-3D |
| Heating Method: | KGPS Power Source | Input Voltage: | 380V |
| High Light: | elbow making machine,elbow bending machine |
||

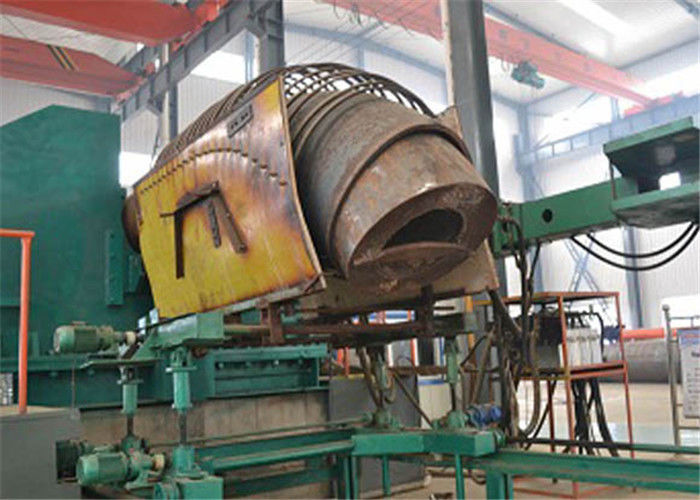

Automatic Induction Heating Bends Elbow Machine For Oil And Gas
Hei Yan Group owns HYW Series of steel products line including Hydraulic Hot Forming Elbow Machine Hot Forming Machine Making Elbow,steel pipe expandig machine, steel pipe bending machine,hydraulic tee forming machine,bevelling machine. The HY Series machinery are designed for customer's point and needs.
Hydraulic Hot Forming Elbow Machine Hot Forming Machine Making Elbow is our traditional products with year's experience.The machine can process carbon steel, alloy steel etc and it can make OD114mm, OD159mm,OD219mm,OD426mm,OD630mm etc.
Hei Yan Group have been successfully installed 630mm Automatic Induction Heating Bends Elbow Machine For Oil And Gas-largest one in Indian history.This machine is equipped with induction heat system,hydraulic control gate,hydraulic system,pump station.gear motor,making it work stable and efficiently.
The HY Series machinery are designed for customer's point and needs.Hydraulic Hot Forming Elbow Machine Hot Forming Machine Making Elbow has novel structure, safe using, reasonable price.Welcome to contact us
Characteristics: High speed and no damage for internal structure of steel
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
Machine composition
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
| 9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine |
Automatic Induction Heating Bends Elbow Machine For Oil And Gas Using the unique voltage stabilized technology, the output power can still be constant, even the input voltage fluctuated by 10%.The power supply have the advantage of energy saving ,environment friendly, small noise.
The induction coil can be adjusted by motor for movement of up and down, front and back ,rotary. Easy and safe to operate by handle control.
By adopting PLC control system, the elbow producing can be running automatically. One worker only need putting the material pipe to the feeding device which improved the producing speed , reduced the labor intensity
Induction Forming Bending Machine , SR LR Elbow Hot Forming ,Pipe Bending is a forming machine tool. Its function is to assemble a bend on a steel pipe. A bends is manufactured by using a bending tool during a linear or turning move. The in-depth category can be performed with the aid of the kinematics.
We also supply:
Tee cold forming machine, hot mandrel elbow machine, induction tube bending machine, elbow chamfer machine, tee beveling machine, reducer beveling machine, pipe&tube processing machine, pipe end facing machine, die mould and mandrills, pipe fittings.
