Product Details:
Payment & Shipping Terms:
|
| Cleaning Standard: | GB8923-88 A-B Sa2 1/2 Standard | Certification: | CE, ISO, ISO9001 |
|---|---|---|---|
| Condition: | New | Cleaning Process: | 0.3t |
| Clean Workpiece Type: | Max（L×W×H） 1500mm×1500mm×1200mm | Brand Name: | HEIYAN |
| Segregator: | Separating Capacity：30t Separating Are Wind Speed：4~5m/s Qualified Pill/shot Content In Waste：≤1% | SHOT/PILL: | Ф0.3~2.5 |
| Elevator: | Lifting Capacity：25t/h Power：2.2kw | ||
| High Light: | shot blasting equipment,industrial shot blaster |
||

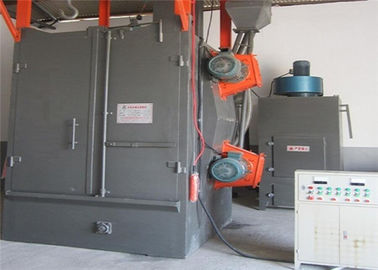

Q3710 Hook Type Carbon Steel Parts Fittings Shot Blasting Machine
How To Operate The Double Hooks Shot Blasting Machine ?
Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Operation:
1. Shot blasting chamber body is made of 6mm manganese steel precision welding; the body with double wear-resistant manganese steel shield fastened by high wear-resistant nuts; Easy to repair and maintenance, greatly improving the maintenance. Machine body ensure 20 years use life.
2. Y type double rail input and output convey system, manual control loading and unloading, input and output convey(This way is safe)
3. The shot blasting chamber adopts compact and closed design, to ensure no steel shots splash.
4. Adopting Mayflay precision casting high performance shot blaster which is equipped with semi-automatic flow control valve to adjust the shot flow.
5. The recovery steel shot adopts spiral pusher + elevator+ air separator, the bottom is equipped with photo electricity induction system to monitor and alarm the pellet recovery system which is stable and reliable.
6. Dust collecting system uses dry dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 50 mg/m3.
Shot Blast Machine ideal to treat parts of all sizes and/or particularly fragile parts.
The available units are provided with hooks or hoists for heavier parts.
By installing magnetic drums and with appropriate devices it is also possible to carry out desanding operations.
Hook enter the Blasting Room interval in the set position for the back and forth movement and rotation of the workpiece are fully ejections, reduce ejections dead ends. Two hooks, a hook shot blasting indoor ejections, another hook handling the workpiece. The blasting treatment time can be adjusted. Shot blasting machine stops running after shot blasting chamber door open to bring in and take out the workpiece. The dust generated by blasting treatment two dust collector filter emissions.
China Supplier Bulk Casting Special Hook Type Shot Blasting Detailed product description:
Need shot blasting process workpiece directly hanging on a hook or hanger, artificial brought to the front Blasting Room traction system the hook automatically enters Blasting Room. Hook into the Blasting Room, shot blasting chamber goalkeeper pneumatic Close electrical interlock to prevent the workpiece in the blast chamber Shot Blasting the others mistakenly opened Blasting Room door.
| Model | Size of cleaning piece | Max. Lifting height | Total blasting capacity | Total power |
| HSK-7/7Y |
700*1100MM 800*1100MM |
0.5T | 180KG*2 7.5KW*2 |
23KW |
| Q377/7S | ||||
| HSK-9/9Y |
900*1600MM 1000*1500MM |
1.0T | 240KG*2 11.0KW*2 |
36KW |
| Q379/9S | ||||
| HSK-10/10Y |
1200*1500MM 900*1850MM |
1.0T | 240KG*2 11.0KW*2 |
39KW |
| KTHG-10F | ||||
| KSB20/30/50/80 | Designed and manufactured according to the workpiece size | 2.0T-20.0T | According to the design specifications Shot reasonable amount of artifacts | Shot size according to the amount of power and ancillary components |
| KTHG-20/30/50 |
