Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine

I'm Online Chat Now

Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine

Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine
Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine

Large Image :  Intermediate Frequency Heating Hydraulic 2.5D Elbow Forming Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE
Model Number: EWT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 2 inch to 12 inch Hot Induction Pipe Hot CS Elbow Forming Machine Pack by Wooden case with plastic film
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2 sets per month
Detailed Product Description
Production Range:: φ15mm~φ1420mm Elbow Wall Thickness: 3mm~100mm
Angle: 22.5°、45°、90°、135°And Any Angle Of The User's Needs Bending Radius: 1-2.5D
Heating Power: 100-1000KW Bending Material: Carbon And Alloy Steel
Product Name: 2 Inch To 12 Inch Hot Induction Pipe Hot CS Elbow Forming Machine Heating Method: Induction Heating
Control System: Hydraulic
High Light:

intermediate frequency heating elbow machine

,

hydraulic elbow forming machine

,

2.5d elbow forming machine

Intermediate Frequency Heating Hydraulic Elbow Forming Machine

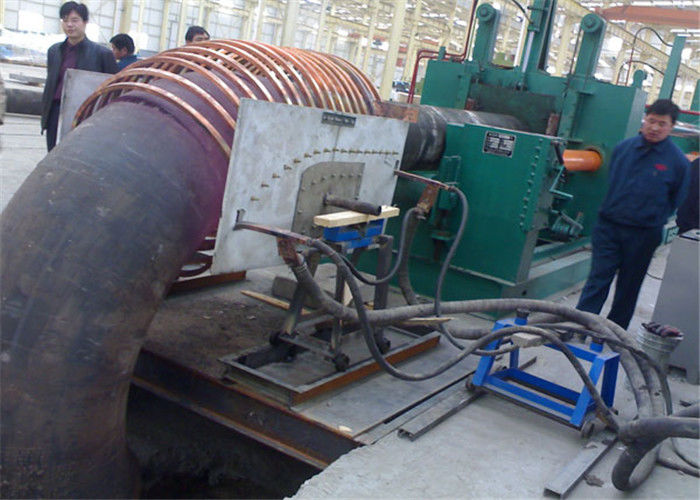

The hydraulic medium frequency heating hydraulic elbow pusher is the traditional product of Hei Yan Int'L Development Limited. It is mainly used to produce elbow pipe fittings with various diameters and wall thickness of radius of curvature 1 ~ 2.5d.With the development of deep processing technology of steel pipe, the product has been improved in all directions.The equipment has integrated ultra-short stress line cone die expansion, digital control if induction heating, the application of no back low energy consumption hydraulic transmission technology.All the gates are opened and closed with electromagnetic directional valves, realizing the double control of the gate site and the operation table, and adding a number of automation technologies such as the hydraulic clamping of raw material steel tube, and combining with the thermal expanding pipe machine technology of our factory, we have correspondingly produced four oil cylinder extra large thick elbow pipe fittings pushing machine and other hydraulic pushing equipment.Equipped with an intelligent constant temperature control system for intermediate frequency power heating, the device can realize the functions of one person operating and controlling multiple devices, energy saving, environmental protection, safe operation and so on.





Elbow Forming Machine I. Technical parameters of hot push elbow: elbow production of raw steel pipe: seamless steel pipe, straight seam welded steel pipe and spiral welded pipe.


Elbow Forming Machine1, the elbow specification range: diameter: 25mm ~ 1420mm;Wall thickness: 5mm ~ 120mm;(Design and manufacture the equipment in sections)
Elbow Forming Machine2. Angle: 22.5°, 45°, 90°, 135° and any Angle required by the user;
Elbow Forming Machine3. The radius of curvature of elbow is 1D ~ 2.5d
Elbow Forming Machine4, according to the needs of various radius of curvature of the bending steel pipe, also known as unequal diameter bend.



Elbow Forming MachineII.Structure: elbow push system unit equipment frame rails and the main cylinder and the plate, activities before pushing plate, plate, feeding device, intermediate frequency coil adjustment device (intermediate frequency heating coil, bend mold, mold rod), intermediate frequency power supply heating equipment, electrical control system, hydraulic control system, work station (touch screen), cooling water circulation system, etc.


Elbow Forming MachineIII.Auxiliary equipment for elbow pushing unit: hydraulic press (elbow shaping and whole use), elbow shaping mould, elbow whole opening mould, elbow beveling machine, steel pipe saw machine, high temperature lubricant (graphite) spraying equipment for inner wall of steel pipe.





Machine composition

1. machine base/frame
2. Main cylinder and supporting plate
3. pushing plate
4. front supporting plate
5. loading table
6. induction coils and adjusting device
7. medium frequency power supply
8. electrical control system
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine
