Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine

I'm Online Chat Now

Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine

Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine
Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine

Large Image :  Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE/ISO
Model Number: HYG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case or plastic film
Delivery Time: 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1 sets per month
Detailed Product Description
Bend Size: 3-110 Bend Angle: 0-180degree
Bend Radius: Up To 10D Bend Material: CS SS
Heating Power: 6KW Standard: CE ISO
Control System: Intelligence System Adjusting Device: Medium Frequency
Customization: Email Contact
High Light:

Heavy Calibre hydraulic tube bender

,

10D Hydraulic Pipe Bending Machine

,

6KW Hydraulic Pipe Bending Machine

Heavy Calibre Medium Frequency Heating Hydraulic Pipe Bending Machine



Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine 0

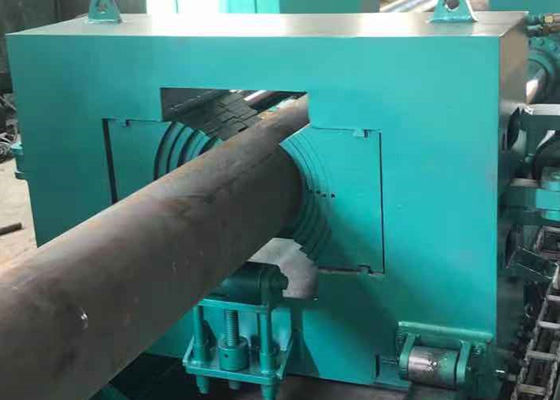

Machine content:



PLC:
Automatic operation,easy to operate,fast efficiency and save labors for whole pipe bender's operation. Support any language sites.

Shift arm:
Long layout design to achieve bends radius from 2D-10D even more.Centre Axis is important position to measure various bends radius.Pieces are casting and machining to get precise running when coordinated with PLC systems.

Support board:
Strong plate welded,mainly for rolling work piece. The supporter of Punching transformer.

Pushing board:
Clamp and fix the work piece, drive work piece go ahead or back return during machine working.Different diameter work piece's fixing by steel pads add and lock on Pushing board.

Cooling tower:

Good brand cooling tower provide enough cooling water flow out when machine working.

We supply high quality Ss Cs Steel Hot Pipe Bending Machine For Oil Pipelines And Profile Steel, induction heating pipe bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service



Max size Model Heating power Cylinder capacity Thickness
6” HYG-159 200KW IDΦ140 ODΦ168 5-20
8” HYG-219 200KW IDΦ140 ODΦ168 5-20
12” HYG-325 250KW IDΦ180 ODΦ219 5-20
16” HYG-426 350KW IDΦ180 ODΦ219 5-20
20” HYG-530 400KW IDΦ180 ODΦ219 5-20
24” HYG-630 500KW IDΦ200 ODΦ245 5-20
28” HYG-720 600KW IDΦ200 ODΦ245 5-20
32” HYG-813 800KW IDΦ220 ODΦ273 5-20
36” HYG-914 800KW IDΦ250 ODΦ299 5-20
48” HYG-1220 1000KW IDΦ280 ODΦ325 5-20
56” HYG-1420 1000KW IDΦ280 ODΦ325 5-20
60” HYG-1520 1000KW IDΦ280 ODΦ325 5-20
64” HYG-1620 1000KW IDΦ320 ODΦ377 5-20

Bending technical parameters:

1. The bending pipe of the equipment adopts the raw steel pipe: seamless steel pipe, straight seam welded pipe or spiral welded pipe.



2. The bending radius of the bend must be greater than 2.5d (it is manufactured with elbow push technology below 2.5D), and the Angle of the bend should be intelligently controlled by programming (the Angle of the bend should be set arbitrarily within a certain range according to needs).



3, push the diameter of the elbow and wall thickness range: diameter 89 ~ 1420mm, wall thickness: 5 ~ 120mm (section design and manufacture of the equipment).



4. The stroke of the main oil cylinder is determined according to the maximum diameter and maximum bending radius of the elbow (provided by the user).

Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine 1Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine 2Heavy Calibre 10D 6KW Hydraulic Pipe Bending Machine 3
