Product Details:
Payment & Shipping Terms:
|
| Belt Line Speed(m/min): | 40/60/80 | Main Generator Power(kw): | 3 |
|---|---|---|---|
| Cooling Generator Power (kw): | 0.09 | Working Clamp Style: | Hydraulic |
| Saw Belt Tighten Style: | Hand | Loading Style: | Extra Roller |
| Name: | Cut Diameter 300 Mm Metal Double Column Band Sawing Machine | Certification: | CE |
| High Light: | double column fully automatic bandsaw machine,diameter 300mm fully automatic bandsaw machine,double column bandsaw machine fully automatic |
||

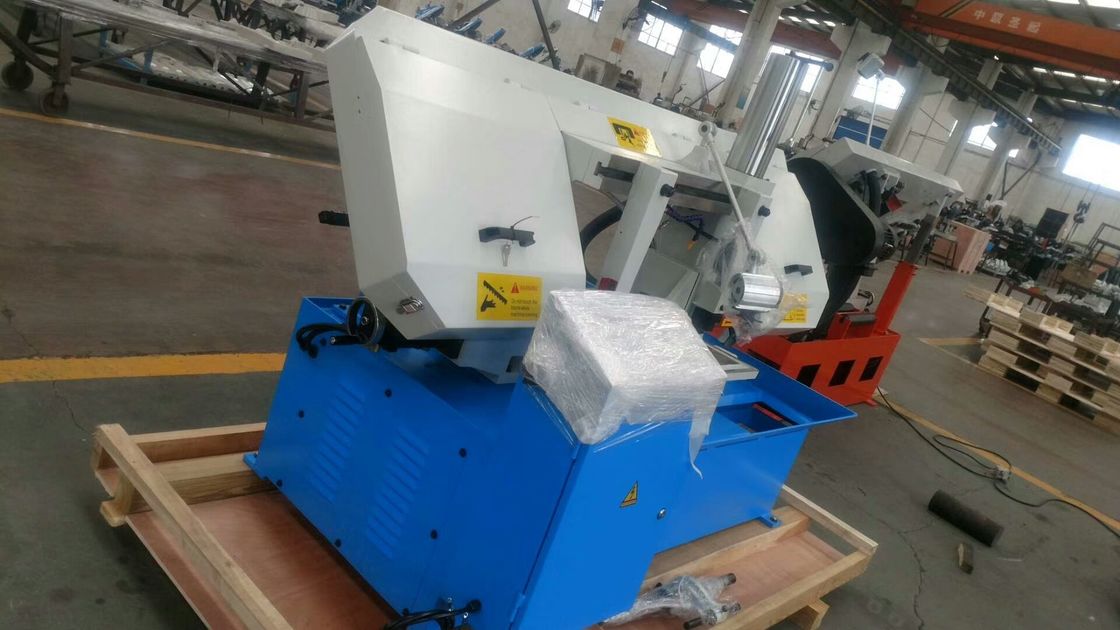

Cut Diameter 300 mm Metal Double Column Band Sawing Machine
Main Features:
1.Centralized control panel on top of saw bow
2.One-piece saw bow
3.Deluxe blade tension hand wheel
4.Deluxe Tru-lock vise system with absolute clamping force
5.Easy speed changes
6.Heavy-duty all steel, one piece base
7.Adjustable hydraulic down feed; just dial your feed rate on the control panel
8.Worm gear box has hardened and ground gears
9.Quick-release vise for fast job changes
10.Miter cutting ability
11.Blade wheels have heavy-duty ball bearings
12.Magnetic safety switch
13.Automatic shut off
14.Adjustable blade guide system
| Type | GZ4230 |
| Cut capcity W*H (mm) | round 300 |
| square 300*300 | |
| Bundle cutting W*H (mm) | Max. 200*90 |
| Min. 100*20 | |
| Saw belt size(mm) | 3620*27*0.9 |
| belt line speed(m/min) | 15-80 frequency control |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.04 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Volume of oil case (L) | 80 |
| Volume of water case (L) | 60 |
| Max single feeding (mm) | 500 |
| Working table height (mm) | 650 |
| Weights of machine (kgs) | 700 |
| Packing dimensions(mm) L*M*H | 1750*2200*1450 |
The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
