H Beam Channel Steel Plc Control Metal Bandsaw Machine

I'm Online Chat Now

H Beam Channel Steel Plc Control Metal Bandsaw Machine

H Beam Channel Steel Plc Control Metal Bandsaw Machine
H Beam Channel Steel Plc Control Metal Bandsaw Machine H Beam Channel Steel Plc Control Metal Bandsaw Machine

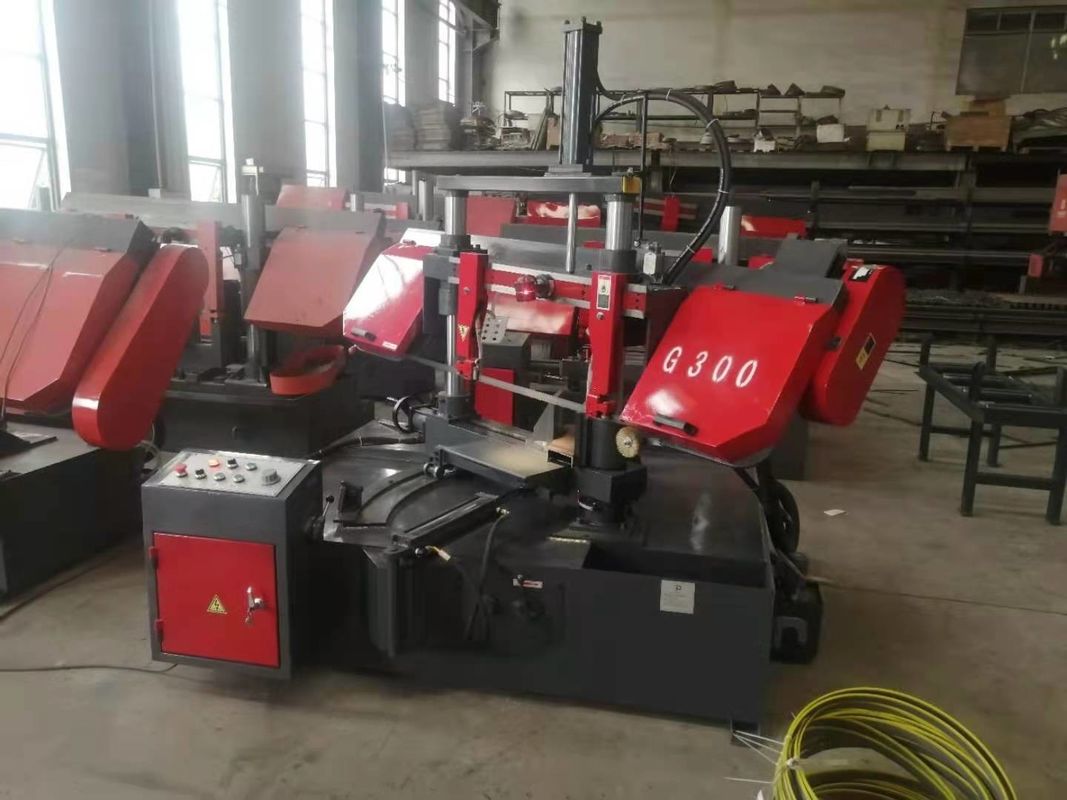

Large Image :  H Beam Channel Steel Plc Control Metal Bandsaw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: G300

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Main Generator Power(kw): 3
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Loading Style: Extra Roller
Name: H Beam Channel Steel PLC Control Metal Angel Cutting Machine Certification: CE
High Light:

plc control metal bandsaw machine

,

plc metal bandsaw machine

,

h beam channel metal bandsaw machine

H beam Channel steel PLC Control Metal Angel Cutting Machine





Main structure
The machine tool consists of a base part, a guide part, a main transmission system, a saws tensioning device, a feed positioning system, a hydraulic system, an electrical system, a protection device, and a cooling system; A series of command actions are performed through the cooperation of each part to complete the material feed, positioning and sawing.
1 Base section
The entire base is a box-shaped structure welded by A3 steel plates. The left side of the base is a hydraulic tank, and the right side is a cooling tank. After the base is welded, it is subjected to vibration aging to remove the welding internal stress.
2 Orientation
The guide part is divided into saw beam guide and saw bar guide part. The guide part of the saw beam is composed of a large diameter column and an auxiliary square column. Through the lifting cylinder, the action direction of the saw cutting feed and the cutting knife is made. The reasonable structure layout makes the sawing guide more stable and the accuracy higher. Saw guide
It consists of a pair of guide arms and a guide head. The guide head distorts the saw bar around the edge of the saw wheel into a vertical state with the work table, making the cut material cut vertical.
3 Main transmission system
The main transmission system consists of a worm gear reducer, a triangular belt wheel, and a main motor. The worm wheel is made of tin bronze materials and is processed on a precision roller hob using a precision worm hob. After harrowing, the worm is ground in a precision worm grinder with high surface finish and high precision. The box body adopts HT250 cast iron, which guarantees the processing accuracy with the special boring mode, and the worm wheel has a long service life. The output end of the worm wheel box is connected with the active wheel, and the slave wheel is rotated by a saw bar around the rim to perform rotary cutting.
4 Saw bar tensioning device
It consists of tensioning handle, Zhangjinsi rod tensioning drawing board, tensioning sliding block, hollow adjusting screw, etc.. By tightening the wire bar adjustment, the saw bar can be tightened and relaxed and replaced. It is also possible to adjust the angle relationship between the saw wheel and the beam plate through hollow adjusting screws.
2.5 Material feed positioning system
The feed positioning system consists of a feed bed, a cylindrical guide rail, a drum, and a sawing machine. When it is sent to the sawing setting data, the feed is stopped and sawn. One-time feed trip: 420mm,
6 Hydraulic system
The hydraulic system consists of a hydraulic motor, a pump, an electromagnetic valve, a speed regulating valve, an oil cylinder, a tubing, and a fuel tank. The required operation is completed through the output of the electrical system.
7 Electrical systems
The electrical system consists of Transformers, contactors, touch screens, PLCs, relays, proximity switches, wires and switches. By entering data and parameter settings into the touch screen, and the hydraulic system, to complete a series of sawing action requirements.
8 Protective devices
The protective devices are divided into safety protection and electrical system protection. The safety protection devices include saw wheel Shields, belt wheel Shields and other facilities. These facilities are facilities for the protection of personal safety and must not be demolished at will. Electrical system protection includes the main circuit overload protection, motor overload protection, saw bar break stop protection.
9 Cooling system
The cooling system is divided into saw-cut cooling and hydraulic oil cooling. By pumping the coolant into the cooling line, the saw strip is cooled and the sawdust is washed so that it is sawn more smoothly. Hydraulic oil is cooled by the hydraulic oil flowing back through the tubing through the cooler and then back to the hydraulic fuel tank, so that the oil temperature remains stable and does not rise during work, so as to ensure that the hydraulic system is working normally and steadily.

Type G300
Cut capcity W*H (mm) 90° round 300
      square 300*400
  45° round 280
        square 280*280
  60° round 280
        square 180*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450



1, when the sawing is completed, it will automatically stop and raise the saw frame for high efficiency operation.
2, the saw belt can adjust the load to ensure that the band saw does not fatigue and the feed rate is steplessly changed, and can be adjusted to the best cutting effect.
3, when the sawing machine can cut the cutting speed according to the material structure properties, the saw blade can effectively improve the service life of the saw blade.
4, hydraulic tensioning saw blade (easy operation and improve work efficiency)
5, saw blade break automatically stop (safe)
