Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine

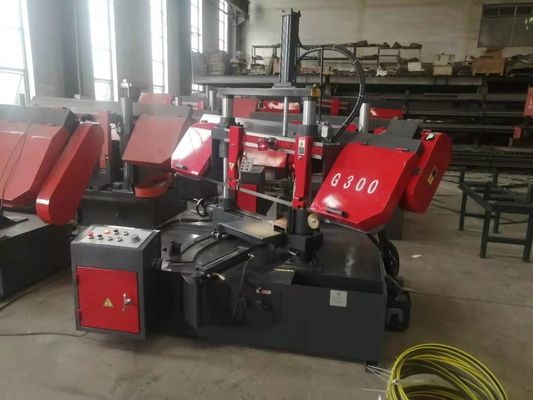

Large Image : Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HEIYAN
Certification:	CE/ISO
Model Number:	G300

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	NEGOTIABLE
Packaging Details:	Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time:	7-15DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	50SETS PER MONTH

Contact Now

Detailed Product Description

Belt Line Speed(m/min):	40/60/80	Main Generator Power(kw):	3
Cooling Generator Power (kw):	0.09	Working Clamp Style:	Hydraulic
Saw Belt Tighten Style:	Hand	Loading Style:	Extra Roller
Name:	Cut 45 Degree 60 Degree Metal Swivel Sawing Band Saw Machine	Certification:	CE
High Light:	swivel sawing metal band saw machine , 3kw Metal Band Saw Machine , 45 degree automatic bandsaw machine

Cut 45 Degree 60 Degree Metal Swivel Sawing Band Saw Machine

1. Double column structure, vertical lifting, high stability;

2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;

3. Cutting speed hydraulic control, stepless speed regulation;

4. The workpiece is clamped to hydraulic clamping, which is easy to operate;

5. Customizable three-way hydraulic clamping device.

Type	G300
Cut capcity W*H (mm)	90° round 300
Cut capcity W*H (mm)	square 300*400
	45° round 280
	square 280*280
	60° round 280
	square 180*300
Bundle cutting W*H (mm)	Max. 200*90
Bundle cutting W*H (mm)	Min. 100*20
Saw belt size(mm)	3505270.9
belt line speed(m/min)	15-80 frequency control
Main generator power(kw)	2.2
Hydraulic generator power(kw)	0.75
Cooling generator power (kw)	0.09
Working clamp style	Hydraulic
Saw belt tighten style	Hydraulic
Main trasmit structure	Turbine
Loading style	Extra roller
Volume of oil case (L)	60
Volume of water case (L)	40
Max single feeding (mm)	400
Working table height (mm)	650
Weights of machine (kgs)	1100
Packing dimensions(mm) LMH	175022001450

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
