325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube

I'm Online Chat Now

325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube

325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube
325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube 325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube 325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube

Large Image :  325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE/ISO
Model Number: HYG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2 sets per month
Detailed Product Description
Product Name: Pipe Expanding Machine Model Number: HY-325
Length (m): 3-24m Wall Thick (mm): 30-150mm
Voltage: 220V/380V/600V Thrust: 106T
Diameter: φ60——φ1420mm Steel Tube Type: Seamless Steel Tube, Straight Seam Welded Pipe, Spiral Welded Pipe
Varieties Of Steel Pipe: General Carbon Steel, Alloy Steel, Stainless Steel, Etc
High Light:

325mm pipe expanding machine

,

325mm tube expansion machine

,

3M Length pipe expanding machine

325mm 3 - 24m Length For Steel Tube Hot Hole Enlargement Pipe Expanding Machine



I. Product Features:



The patent product set cone die hole enlargement technology, medium frequency induction heating technology, hydraulic technology in one, with its reasonable technology, low construction investment, wide range of raw materials and products specifications suitability, flexible variable low input of production batch adaptability to replace the traditional steel pipe industry tension dial hole enlargement technology, became the resolve the shortage of large diameter seamless pipe at home and abroad, a series of large and medium diameter welded pipe specification is difficult to complete an important and indispensable production capacity.



Ii. Equipment advantages: intelligent constant temperature system



1, the intelligent control of intermediate frequency power supply at the time of expanding production will steel tube heated to the required temperature and constant, effectively avoid the human factors caused by the steel tube burnt (high temperature) to produce the scrap quality decline and die for steel tube, at the same time avoid the low temperature and the thermal expansion unit thrust lever or die fracture is caused by the rising, to eliminate the unsafe factors.





2. Compared with manual operation, heating the steel pipe is energy-saving and environmental friendly, which simplifies the operation procedure and reduces the labor cost, and enables one operator to monitor the normal production of 10 pipe expanding units at most at the same time



3, each unit set up two temperature measuring point intelligent automatic temperature control, according to the different type of preset steel pipe heating temperature, choice for expanding tube heating and constant temperature, and the real-time display and record, can print and save heating temperature parameters in real time curve and history curve, which guarantees the traceability data.



he equipment mainly includes: machine base, main oil cylinder support plate (including main oil cylinder), movable push plate, front support plate, automatic feeding mechanism, blanking roller table, mold support, intermediate frequency coil adjustment frame (including intermediate frequency heating coil), intermediate frequency power supply, electrical control system and so on.
Specification of hot expanding steel pipe: diameter 89 ~ 1420mm, wall thickness 30 ~ 150mm, length 3 ~ 24m.Steel tubes of various materials can be expanded (such as p91-92 / t91-92, Q235, Q345, 45#, a106b-c, 12CrMoV).
Special equipment for steel tube hot hole enlargement, mainly for domestic large diameter steel pipe production cannot meet the demand of market and all kinds of steel pipe specification is not complete, meet the needs of small batch more varieties of steel pipe production, can satisfy the different material steel pipe hole enlargement and various non-standard steel tube expanding needs, is currently the main production process of large diameter steel pipe.It has been widely used in military industry, power plant construction, aerospace industry and Marine industry equipment manufacturing industry, making a great contribution to the steel pipe industry and energy construction.
The equipment is used in the production of seamless steel pipe, straight seam welded pipe, coil pipe and so on.Expandable steel tube varieties are: various carbon steel, alloy steel, stainless steel and so on.
The patent product set cone die hole enlargement technology, medium frequency induction heating technology, hydraulic technology in one, with the reasonable technique, simple equipment structure, the construction of low energy consumption, low investment, good product quality, wide range of raw materials and products specifications suitability, flexible variable low input of production batch adaptability to replace the traditional steel pipe industry tension dial hole enlargement technology, became the resolve the shortage of large diameter seamless pipe at home and abroad, a series of large and medium diameter welded pipe specification is difficult to complete an important and indispensable production capacity.With the utilization and development of energy from solid (coal), liquid (oil) to gas (natural gas), it is suitable for the steel pipe demand of energy transmission pipeline.Has formed a complete hot - expanding steel pipe processing industry.



NO. Model Finished pipe
ranges(mm)
Thrust(t) Max working feed
speed (mm/min)
Return speed
(mm/min)
M.F power(kw) Max working
thrust(t)
Mother pipe
length(mm)
Max wall thickness of finished pipe(mm)
1 HY-219 89-219 84 2200 6500 200-250 72 ≤24000 30
2 HY-325 168-325 106 1700 5000 250-300 91 ≤24000 40
3 HY-426 219-426 160 1600 4500 350-400 137 ≤24000 50
4 HY-530 273-530 206 1250 3500 400-450 177 ≤24000 60
5 HY-630 325-630 260 1200 3200 450-500 220 ≤24000 80
6 HY-720 355-720 300 1200 2300 500-600 257 ≤24000 100
7 HY-820 426-820 300 1200 2200 600-800 257 ≤24000 100
8 HY-914 457-914 330 1000 1800 600-800 282 ≤24000 100
9 HY-1020 530-1020 510 900 1600 800-1000 437 ≤24000 120
10 HY-1220 630-1220 670 800 1600 800-1000 574 ≤24000 120
11 HY-1420 720-1420 850 740 1400 1000-1200 728 ≤24000 150

325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube 0325mm 3 - 24m Length Pipe Expanding Machine For Steel Tube 1

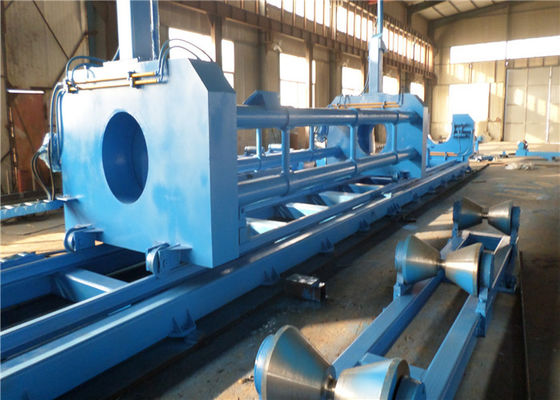

The equipment mainly consists of: machine stand, main oil cylinder support plate (including main oil cylinder), movable push plate, front support plate, automatic feeding mechanism, feeding roller table, die bracket, intermediate frequency coil adjusting frame (including intermediate frequency heating coil), intermediate frequency power supply, electrical control system, etc.
