Product Details
Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Machine Type: |
Cold Push Elbow Machine |
After-sales Service Provided: |
Field Maintenance And Repair Service |
Wall Thickness: |
3~30mm |
Mould Clamping Force (KN): |
1000-23000 |
Main Thrust (KN): |
630-12000 |
Work Pressure (MPa): |
25 |
Motor Power (KW): |
11-110 |
Radius: |
1D,1.5D |
Machine Type: |
Cold Push Elbow Machine |
After-sales Service Provided: |
Field Maintenance And Repair Service |
Wall Thickness: |
3~30mm |
Mould Clamping Force (KN): |
1000-23000 |
Main Thrust (KN): |
630-12000 |
Work Pressure (MPa): |
25 |
Motor Power (KW): |
11-110 |
Radius: |
1D,1.5D |
Manufacturing of small diameter carbon steel elbow cold push elbow machine equipment
1. Product Presentation

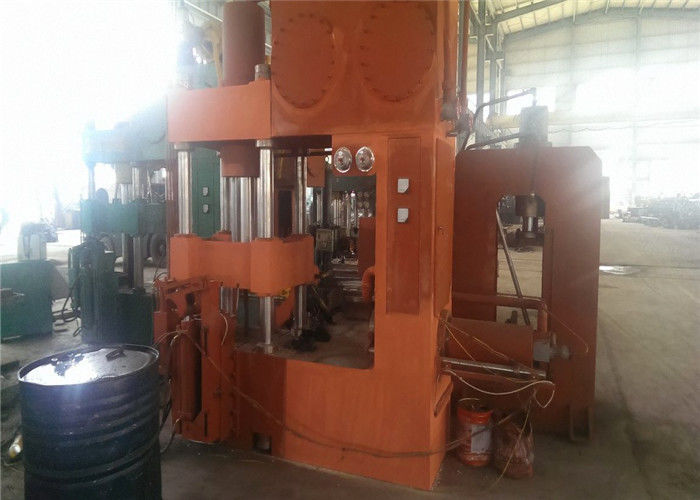

Cold push elbow machine is mainly composed of main engine, hydraulic station, electric control cabinet, limit device four parts, production products have a variety of types, can be used for the production of carbon steel, stainless steel, alloy steel and other materials of the elbow, in the daily industrial production, we mainly used for the production of stainless steel elbow.
2. Product Paramete
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Rated working pressure (MPa) | Total power of motor (KW) | Total Weight (kg) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 | 6300 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 | 9000 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 | 38000 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 | 35000 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 | 48000 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 | 76000 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 | 98000 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 | 130000 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 | 200000 |
Introduction to the classification of cold push elbow press:
1.Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon-tarry, PVC, PPR, RFPP(reinforced polypropylene), etc.
2.It can be divided into pushing, pressing, forging, casting, etc.
3.The manufacturing standard can be divided into national standard, electrical standard, ship standard, chemical standard, water standard, American standard, German standard, Japanese standard, Russian standard, etc.
4.According to its radius of curvature, it can be divided into long radius elbow and short radius elbow.A long radius elbow is the outer diameter of a tube whose radius of curvature is equal to 1.5 times, i.e. R= 1.5d.The short radius elbow means that its radius of curvature is equal to the outside diameter of the pipe, i.e. R= 1.0d.(D is the diameter of the elbow and R is the radius of curvature).
5.According to the pressure level, there are about 17 kinds of pipes, which are the same as the American pipe standards, such as: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS;Sch80, SCH100, Sch120, Sch140, Sch160, XXS;Among them, STD and XS are more commonly used.
6.According to different shapes, it can be divided into: groove bend, card sleeve bend, double bearing bend, flange bend, reducing bend, stay seat bend, internal and external tooth bend, stamping bend, push bend, socket and socket bend, butt welding bend, internal wire bend, etc.
