Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life

I'm Online Chat Now

Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life

Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life
Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life

Large Image :  Cold Push Elbow Manufacturing Machine 1D 1.5D Radius Long Service Life

Product Details:

Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Machine Type: Cold Push Elbow Machine After-sales Service Provided: Field Maintenance And Repair Service
Wall Thickness: 3~30mm Mould Clamping Force (KN): 1000-23000
Main Thrust (KN): 630-12000 Work Pressure (MPa): 25
Motor Power (KW): 11-110 Radius: 1D,1.5D
Degree: 30°,45°,90° Bending Material: Carbon Steel,alloy Steel,satinless Steel
High Light:

automatic elbow machine


cold push elbow machine

Straight seam carbon steel cold push elbow manufacturing machine equipment



1. Product Presentation

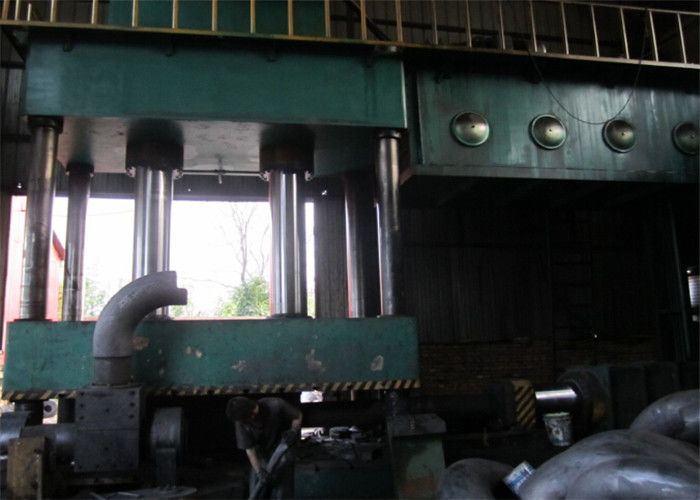

It includes a rack, a work table, a side work table, an oil press, a fuel tank, an electrical box and a control panel, as well as a forming die, a die lifter and a stripper.The frame is a whole frame structure.The hydraulic press includes a vertical hydraulic press arranged vertically between the columns and a horizontal hydraulic press arranged horizontally between the middle sections of the columns.The motor of the oil press is arranged in the upper part of the machine.In the upper part of the machine set up a large flow of low-pressure pump connected to the vertical pressure cylinder, so that the cylinder rapid movement.The electrical box and control board control the operation of the machine through a computer microcomputer.The utility model reduces noise and the arrangement of each component is more compact and reasonable.
Cold push elbow machine itself belongs to the non-standard products, so there is no specific specifications and models, we can directly customize the cold push elbow machine according to customer requirements.Elbow diameter from 25mm-630mm, wall thickness is 3mm-30mm we can do.The main characteristic of cold push elbow machine is low cost.Each pipe fitting enterprise needs to purchase cold push elbow machine or elbow machine, which needs to be customized in advance. It will take 15~25 days for our company to make this equipment, and elbow machine should be prepared for booking in advance.


2. Product Parameter


Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Rated working pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000


Before the use of the cold push elbow machine should pay attention to some problems, we will give you an introduction:
1, the machine is necessary to outstanding grounding, wire must not be less than 4mm2 copper soft wire.The cold push elbow machine is not allowed to access the power supply voltage beyond the specified scale, can not plug plug plug, can not use megohm test control circuit, otherwise it may damage the equipment.
2. When the plug plug is inserted, the wind pipe elbow machine shall not pull the wires or cables to prevent the welding from pulling out.
3. Add smooth oil to the chain and other sliding parts regularly.
4, the machine should be kept clean, especially should pay attention to the clamping block, slider and other sliding groove should not have foreign bodies.
5, close to the switch, encoder, etc. can not be hit by hard objects.
6. Sharp objects shall not be used to bump the development unit.
7. It is necessary to place the electrical box in a ventilated place to prevent working in dust and corrosive gas.
8. Do not install or replace PC input and output terminal without permission.
9, it is necessary to switch machine power from scratch to recognize the motor steering.
10. Mold adjustment: mold device. Mold and clamping block are required to be in the middle.The booster block is in the middle of the mold, and the booster block is adjustable;Center the core head and the mold, loosen the bolt of the core head frame, adjust it to the middle and then tighten the bolt.
11. It is necessary to disconnect the power supply during cleaning and maintenance.
12. Preparation before starting: check whether the oil level of the oil tank is to the oil level line, add oil at each smooth point of the cold-push elbow machine, acknowledge the motor turning when starting, check whether there is abnormal sound of the oil pump, and check whether there is oil leakage appearance of the hydraulic system after starting (the view encoder is not allowed to add oil);
13. Pressure adjustment: adjust the pressure with the electromagnetic overflow valve, and ensure that the system pressure reaches the required operating pressure, usually no higher than 12.5mpa.
Be sure to pay attention to these very important issues when using to prevent the following accidents.
