| Model Number: | HYT | Voltage: | 220V/380V/600V |
|---|---|---|---|
| Slide Stroke (mm): | 200mm | Working Speed: | 10-24mm/s |
| Nominal Pressure (KN): | 360KN | Return Force (KN): | 300KN |
| Weight (T): | 58T | After-sales Service: | Field Maintenance And Repair Service |
| High Light: | automatic forming machine,tee forming equipment |
||

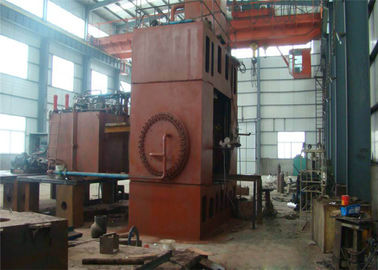

Manufacturing carbon steel, stainless steel, alloy steel material and various specifications of the tee machine
Tee equipment is mainly able to produce tee pipe fitting equipment, tee machine production of tee mainly have the same diameter and reducing tee, tee shape is divided into T shape and Y shape.Tee machine main production tee material has carbon steel, alloy steel stainless steel and so on. The main power of the tee machine is the hydraulic cylinder, the body of the tee machine belongs to the non-standard products, so there is no specific specifications and models, we can directly customize according to the specific requirements provided by the customer.First tee machine is the production of tee most advanced mechanical equipment.Tee machine leading technology through the water pressure to squeeze straight pipe into three, reduce lead, repair lead blank drilling, return lead and other technology, save cost and production time, in order to ensure the stability of water pressure, we use a pressure equalizer to stabilize the pressure in the copper pipe squeeze three, is the copper pipe in the extrusion process to maintain a constant pressure.
| Specification | Unit | HYT-315 | HYT-500 | HYT-1000 | HYT-1500 | HYT-2000 | HYT-4000 | |
| Tee OD range | lnch | 1~4 | 3~6 | 4~8 | 8~12 | 10~16 | 20~28 | |
| Master cylinder | Normal force | KN | 3150 | 5000 | 10000 | 15000 | 20000 | 40000 |
| Work stroke | mm | 450 | 480 | 610 | 670 | 800 | 1200 | |
| Go down speed | mm/s | 60 | 80 | 80 | 80 | 80 | 80 | |
| Work forward speed | mm/s | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | |
| Return stroke speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 | |
| Side cylinder | Normal force | KN | 3150 | 5000 | 8000 | 12500 | 18000 | 40000 |
| Work stroke | mm | 300 | 320 | 340 | 360 | 410 | 500 | |
| Advance speed | mm/s | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | |
| Return stroke speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 | |
| Push-out cylinder | Normal force | KN | 300 | 400 | 500 | 630 | 1500 | 2000 |
| Work stroke | mm | 300 | 300 | 400 | 450 | 550 | 700 | |
| Workbench effective area | Right and left | mm | 550 | 750 | 900 | 1200 | 1400 | 1800 |
| Front and back | mm | 400 | 580 | 800 | 1000 | 1200 | 1500 | |
| The max distance from slide block to workbench | mm | 190 | 250 | 370 | 460 | 520 | 650 | |
| Center high of side cylinder | mm | 980 | 1100 | 1350 | 1800 | 1900 | 2500 | |
| Motor power | KW | 30 | 45 | 74 | 110 | 220 | 330 | |
Tee molding machine is used for carbon steel, stainless steel pipe into a special hydraulic machine, suitable for a variety of specifications of tee pipe fitting joint extrusion molding change the position of the cylinder, can be processed and manufactured 90 degrees, 135 degrees and other angles of tee pipe joint.The diameter of the tee is 21mm-630mm, and the wall thickness is 3mm-20mm.Hydraulic system of three-way forming machine is hydraulic power mechanism installed on the top of the fuselage, by pump, motor, cartridge valve integration block, fuel tank and other components, the power mechanism includes oil filtration, oil temperature oil level display and other devices.The output flow of the main oil pump is constant power and can vary with the pressure.The structure of the three-way forming machine is the optimized design of the whole frame fuselage to ensure the strength, the welding parts for non-destructive flaw detection, after welding operation aging treatment, to ensure the complete elimination of stress, equipment in use without deformation.Tee machine is provided with T row groove under the slider and above the work table for mounting the mold.The dead point lock device on the slider is provided to prevent the slider from sliding.The power mechanism is placed on the top of the machine, and the top of the fuselage is provided with a safety platform and a fence.Slide guide adopts non-recovery type automatic circulation thin oil ruiyu sliding, and is equipped with oil box and fault display device.
