Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine

I'm Online Chat Now

Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine

Product Details:

Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Machine Type: Cold Push Elbow Machine After-sales Service Provided: Field Maintenance And Repair Service
Wall Thickness: 3~30mm Mould Clamping Force (KN): 1000-23000
Main Thrust (KN): 630-12000 Work Pressure (MPa): 25
Motor Power (KW): 11-110 Radius: 1D,1.5D
Degree: 30°,45°,90° Bending Material: Carbon Steel,alloy Steel,satinless Steel
High Light:

automatic elbow machine

,

cold push elbow machine

Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine​



1.Product Presentation



What is the effect that buys cold push elbow machine, affirmation is the thing so that use above all, cold push elbow machine is to do what, we need to understand clearly.First of all, the composition of the cold push elbow machine is explained.The nose section and the design of the lathe bed of the stiffener, and through special processing to eliminate the internal pressure, let you have enough resistance to pressure, to avoid deformation. The transmission shaft is disassembled directly from the nose upside inserts, accurate installation, shield is convenient, the bend axis and sprocket and integral casting, whole process, the overall hob,keyless connection, force uniform, driven by double oil cylinder, pipe bending process, the turning arm in front of the near front set the Angle of the hydraulic system of active frugal servant buffer, great front forward precision, fast restoration, in the process of the return on the verge of starting point with waste oil buffer, greatly advance the reset accuracy and efficiency. Full hydraulic pressure drive, microThe computer controller can be preset 16 kinds of angles, can only control the foot switch of the cold push elbow machine to complete the cold push elbow machine at one time.Whole processing, the overall hob, keyless connection, force uniform, driven by double oil cylinder, pipe bending process,the turning arm in front of the near front set the Angle of the hydraulic system of active frugal servant buffer, great front forward precision, fast reset, return process to the brink of starting point with waste oil buffer, greatly advance the reset accuracy and efficiency.Full hydraulic drive.Microcomputer controller can be preset 16 kinds of angles, can dominate the cold push elbow machine foot switch to complete a number of processes.



Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Rated working pressure (MPa) Total power of motor (KW)
HYLW-100 Φ25-Φ76 1000 630 25 11
HYLW-200 Φ34-Φ114 2000 1250 25 18.5
HYLW-400A Φ133-Φ273 4000 2500 25 29.5
HYLW-400B Φ108-Φ219 4000 2500 25 29.5
HYLW-630 Φ133-Φ325 6300 3150 25 36
HYLW-800 Φ219-Φ377 8000 4500 25 42
HYLW-1000 Φ273-Φ426 10000 5000 25 65
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5
HYLW-2000 Φ406-Φ630 23000 12000 25 110





We are specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine according to customers requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customersa?? requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

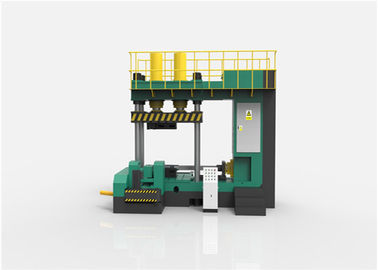

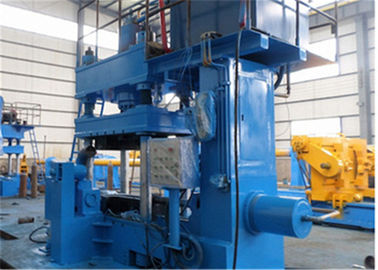

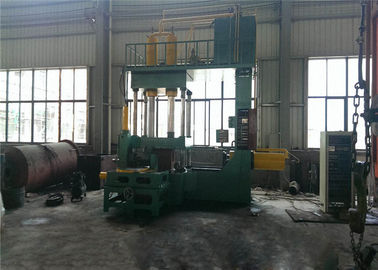

Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine 0Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine 1Suitable for the production of seamless 114mm diameter and welding elbow forming cold bending machine 2
