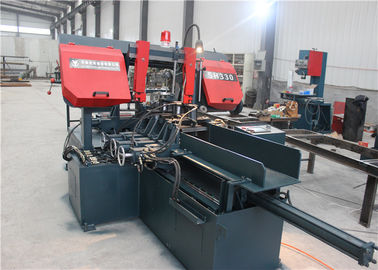

Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power

I'm Online Chat Now

Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power

Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power
Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power

Large Image :  Industrial Automatic Band Saw Machine 0.09KW Cooling Generator Power

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: GZ4240

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Industrial Sawing Automatic Horizontal Metal Bandsaw Cutting Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50sets per month
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Hydraulic Generator Power(kw): 1.5
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Main Transmit Structure: Turbine
High Light:

metal cutting band saw

,

band sawing machine

Industrial Sawing Automatic Horizontal Metal Bandsaw Cutting Machine





Safety operation specification for horizontal band saw
1. Operation procedure:
1.1 turn on the power switch, turn the emergency stop button, the oil pump starts, the indicator light is on, press the saw frame up button, and the saw frame up is placed in the up position. A kind of
1.2 place the clamp button of the vise at the release position, rotate the hand wheel behind the clamp cylinder according to the size of the material, move the working vise, so that the neutral between the two vises is greater than the distance of about 10 mm from the workpiece, at this time, send the workpiece to the length of the saw, and rotate the clamp button to the clamp position. A kind of
1.3 press the start button of the band saw blade, the indicator light will be on, the band saw blade will operate, rotate the coolant switch, and the coolant will be ejected from both sides of the two guide frames. A kind of
2. Emergency stop: if there is an emergency state in sawing, the stop can be realized through the emergency stop button. Generally, as long as pressing the emergency stop button, the machine tool can stop sawing. Start the emergency stop button, press the up button to make the saw blade leave the workpiece SAW seam, and then the saw can be cut again. A kind of
3. Feed speed adjustment: the speed control knob is located on the operation platform. It is recommended to use 50 mm / min for the value of the empty distance, i.e. the height from the saw frame to 50 mm from the saw blade to the working platform (measured from the specified vise surface). After the machine tool idles for 10 minutes, adjust the knob clockwise, and the feed speed increases, otherwise, it decreases until the feed time is 1 minute. During operation, the adjustment of feed speed can be changed according to the actual sawing workpiece material and material brand. For pipe and profile sawing, the feed speed is not easy to be too large. The appropriate feed speed in sawing can be adjusted according to the sawdust thickness, which is generally uniform, curly and elastic. Generally speaking, if the feed speed is too fast, it is easy to produce the cutting tooth fracture of the saw blade, otherwise, it will reduce the productivity. A kind of
4. Band sawing speed: the selection of band sawing speed mainly depends on the processing performance of the workpiece. For general small-diameter steel, the band sawing speed is 45m / min or 65m / min. for general large-diameter steel (i.e. 45 steel with diameter of over 180mm), 25m / min is recommended. For aluminum or copper, the band sawing speed is 65m / min. for bearing steel and stainless steel, the band sawing speed is 25 M / min is enough. Generally speaking, too high cutting speed is easy to cause premature burn of the cutting edge, and too low cutting speed leads to low productivity and fracture of the cutting edge



Type GZ 4240
Cut capcity W*H (mm) round 400
square 400*470
Bundle cutting W*H (mm) Max. 400*280
Min.200*20
Saw belt size(mm) 4750*34*1.1
belt line speed(m/min) 40/60/80
Main generator power(kw) 3
Hydraulic generator power(kw) 1.5
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hand
Main transmit structure Turbine
Loading style Extra roller
Packing dimensions(mm) L*M*H 2200*1150*1650
Weights of machine (kgs) 2280
