Product Details
Place of Origin: Hebei,China
Brand Name: heiyan
Certification: CE
Model Number: HY-630
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 25 days
Payment Terms: L/C , D/A , D/P , T/T
Supply Ability: 15 sets per month
Product Name: |
Pipe Expanding Machine |
Model Number: |
HY-630 |
Diameter (mm): |
89-1420mm |
Length (m): |
3-24m |
Wall Thick (mm): |
30-150mm |
Voltage: |
220V/380V/600V |
Thrust(t): |
260T |
After-sales Service: |
Field Maintenance And Repair Service |
Product Name: |
Pipe Expanding Machine |
Model Number: |
HY-630 |
Diameter (mm): |
89-1420mm |
Length (m): |
3-24m |
Wall Thick (mm): |
30-150mm |
Voltage: |
220V/380V/600V |
Thrust(t): |
260T |
After-sales Service: |
Field Maintenance And Repair Service |

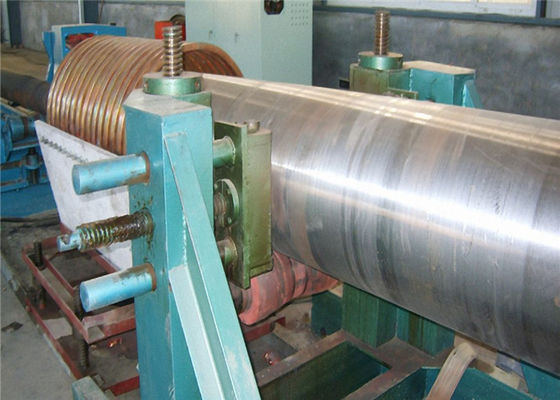

Intermediate frequency seamless steel tube expanding machine is used for producing pressure pipe
Medium frequency tube expanding machine is used in the production of seamless steel pipe, straight seam steel pipe, coil pipe and other steel pipe.Expandable steel tube variety, all kinds of carbon steel, alloy steel, stainless steel and so on.
Specification: diameter: 89*-1420mm, wall thickness: 30-150mm, length: 3-24m.Various materials of steel tube :(p91-92 / t91-92, q235.q345.q45 #. A106b-c.12CrMOV).
Intermediate frequency tube expanding machine mainly includes: machine base, main oil cylinder support plate, movable push plate, front support plate, automatic feeding mechanism, roller table, mold support, intermediate frequency coil adjusting frame including intermediate frequency heating coil, intermediate frequency power supply, electrical control system and so on.
Intermediate frequency tube expander is a special fitting equipment for hot expansion of steel pipe.Mainly for domestic large diameter steel pipe production cannot meet the demand of market and all kinds of steel pipe specification is not complete, meet the needs of small batch more varieties of steel pipe production, can satisfy the different material steel pipe hole enlargement and enlargement of head all kinds of non-standard steel tube company, is currently the main production process of large diameter steel pipe, is now widely used in aerospace industry equipment manufacturing, for the country's steel pipe industry and made great contribution to energy construction.
| NO. | Model | Finished pipe ranges(mm) |
Thrust(t) | Max working feed speed (mm/min) |
Return speed (mm/min) |
M.F power(kw) | Max working thrust(t) |
Mother pipe length(mm) |
Max wall thickness of finished pipe(mm) |
| 1 | HY-219 | 89-219 | 84 | 2200 | 6500 | 200-250 | 72 | ≤24000 | 30 |
| 2 | HY-325 | 168-325 | 106 | 1700 | 5000 | 250-300 | 91 | ≤24000 | 40 |
| 3 | HY-426 | 219-426 | 160 | 1600 | 4500 | 350-400 | 137 | ≤24000 | 50 |
| 4 | HY-530 | 273-530 | 206 | 1250 | 3500 | 400-450 | 177 | ≤24000 | 60 |
| 5 | HY-630 | 325-630 | 260 | 1200 | 3200 | 450-500 | 220 | ≤24000 | 80 |
| 6 | HY-720 | 355-720 | 300 | 1200 | 2300 | 500-600 | 257 | ≤24000 | 100 |
| 7 | HY-820 | 426-820 | 300 | 1200 | 2200 | 600-800 | 257 | ≤24000 | 100 |
| 8 | HY-914 | 457-914 | 330 | 1000 | 1800 | 600-800 | 282 | ≤24000 | 100 |
| 9 | HY-1020 | 530-1020 | 510 | 900 | 1600 | 800-1000 | 437 | ≤24000 | 120 |
| 10 | HY-1220 | 630-1220 | 670 | 800 | 1600 | 800-1000 | 574 | ≤24000 | 120 |
| 11 | HY-1420 | 720-1420 | 850 | 740 | 1400 | 1000-1200 | 728 | ≤24000 | 150 |
The main components of hydraulic tube expanding machine include: frame, main oil cylinder support plate, oil cylinder, movable push plate, front support plate, automatic feeding mechanism, blanking roller table, mold support, intermediate frequency coil adjusting frame, intermediate frequency heating coil, intermediate frequency power supply, electrical control system and so on.The fitting equipment is used in the production of seamless steel pipe, straight seam steel pipe, straight seam welded pipe, coil pipe and so on.Carbon steel, alloy steel, stainless steel and so on.
Of hydraulic expanding machine we have advanced technology and enlarge head machine, according to customer's specific requirements for each customer to produce different models of expanding machine and hydraulic expansion head machine, pipe equipment for customers, ensure that customers at the lowest price to buy the best fitting equipment, for each customer to set foot on the road of entrepreneurship, complete your wealth dream.
