Electrical Control System Pipe Expanding Machine For Producing 426mm Diameter Tubes

I'm Online Chat Now

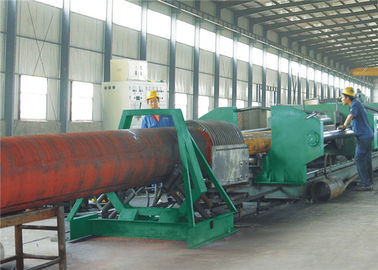

Electrical Control System Pipe Expanding Machine For Producing 426mm Diameter Tubes

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Electrical Control System Pipe Expanding Machine For Producing 426mm Diameter Tubes

Product Details:

Place of Origin: Hebei,China
Brand Name: heiyan
Certification: CE
Model Number: HY-426

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 25 days
Payment Terms: L/C , D/A , D/P , T/T
Supply Ability: 15 sets per month
Detailed Product Description
Product Name: Pipe Expanding Machine Model Number: HY-426
Diameter (mm): 89-1420mm Length (m): 3-24m
Wall Thick (mm): 30-150mm Voltage: 220V/380V/600V
Thrust(t): 160T
High Light:

tube expander machine

,

tube expanding equipment

Used for produce diameter of 426mm carbon steel and alloy steel pipe hot induction tube expander





The main components of the tube expanding machine include: stand, main oil cylinder support plate, movable push plate, front support plate, automatic feeding mechanism, discharging roller table, mold support, intermediate frequency coil adjusting frame, (including intermediate frequency heating coil) intermediate frequency power supply, electrical control system.

Operating process of the expanding machine: the rinsed pipe is sent to the rotary idler device on the center line of the expanding machine.Using this rotating idler device, combined with the camera system, the tube weld is precisely rotated to the 12 o 'clock position to ensure that the weld can enter the groove of the upper sector of the tool during subsequent diameter enlargement.The lifting cone roller way lifts the pipe to the center line of the reaming machine and the position is controlled by the displacement sensor in the lifting hydraulic cylinder.The clamping trolley moves forward and is controlled by a metal detector to detect the end of the tube and to secure it. At the same time, a signal is sent to start the feeding roller of the clamping trolley. The position is controlled by an encoder.The pipe length is combined with the reaming head to automatically calculate the optimal reaming steps.The clamp jaws can be rotated to avoid damaging the tube wall.During the advance, the height of the clamp can be adjusted to compensate for the pipe straightening deviation and optimize the straightening effect of the reamer.



NO. Model Finished pipe
ranges(mm)
Thrust(t) Max working feed
speed (mm/min)
Return speed
(mm/min)
M.F power(kw) Max working
thrust(t)
Mother pipe
length(mm)
Max wall thickness of finished pipe(mm)
1 HY-219 89-219 84 2200 6500 200-250 72 ≤24000 30
2 HY-325 168-325 106 1700 5000 250-300 91 ≤24000 40
3 HY-426 219-426 160 1600 4500 350-400 137 ≤24000 50
4 HY-530 273-530 206 1250 3500 400-450 177 ≤24000 60
5 HY-630 325-630 260 1200 3200 450-500 220 ≤24000 80
6 HY-720 355-720 300 1200 2300 500-600 257 ≤24000 100
7 HY-820 426-820 300 1200 2200 600-800 257 ≤24000 100
8 HY-914 457-914 330 1000 1800 600-800 282 ≤24000 100
9 HY-1020 530-1020 510 900 1600 800-1000 437 ≤24000 120
10 HY-1220 630-1220 670 800 1600 800-1000 574 ≤24000 120
11 HY-1420 720-1420 850 740 1400 1000-1200 728 ≤24000 150



The equipment mainly includes: machine base, main oil cylinder support plate (including main oil cylinder), movable push plate, front support plate, automatic feeding mechanism, blanking roller table, mold support, intermediate frequency coil adjustment frame (including intermediate frequency heating coil), intermediate frequency power supply, electrical control system and so on.

Specification of hot expanding steel pipe: diameter 89 ~ 1420mm, wall thickness 30 ~ 150mm, length 3 ~ 24m.Steel tubes of various materials can be expanded (such as p91-92 / t91-92, Q235, Q345, 45#, a106b-c, 12CrMoV).

Special equipment for steel tube hot hole enlargement, mainly for domestic large diameter steel pipe production cannot meet the demand of market and all kinds of steel pipe specification is not complete, meet the needs of small batch more varieties of steel pipe production, can satisfy the different material steel pipe hole enlargement and various non-standard steel tube expanding needs, is currently the main production process of large diameter steel pipe.It has been widely used in military industry, power plant construction, aerospace industry and Marine industry equipment manufacturing industry, making a great contribution to the steel pipe industry and energy construction.
