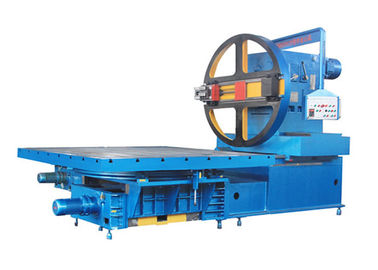

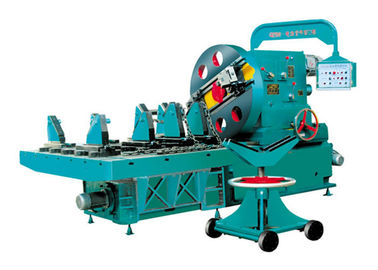

Butt Welding Elbow Beveling Machine 0° - 45° Bevel Angle Of Tool Rest

Fixed-Type High Speed Numerical Control Eblow Beveling Machine
CNC Elbow BEVELING MACHINE(PLC)

Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)

Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm

Conveying system: End beveling vf conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.

1. Elbow beveling machine has the features of unique design, compact structure, beautiful look and convenience to operate.
It is an ideal equipment for chamfering metal right-angel elbow end.
The products processed by the machine are comply with relevant elbow beveling standard.
2. This machine drives strongly, cuts quickly and works efficiently.
It contains novel- structured floating cutter support, well and truly oriented workpiece clamp and qualified excellent hydraulic feed lock device to ensure normal and quick forward/ backward movement of the workpiece on the slipway,
It could beveling at both ends to confirm the correct 90 and 180 degree.

Technical parameters

3. Equipment performance
3.1 the beveling mainframe use(GB707-1988)Q235B steel plate welding to fit the working pressure .
3.2 the milling power head is use the high level standard power head make
3.3 main hydraulic station control press material oil cylinder fix ,keep pressure and loose .
3.4 oil tank is Q235-4mm steel plate welding combine 0.7M*0.6M*0.6M square oil tank box one piece the cubage is 0.28m3, working media L-HM46 anti-wear hydraulic oil.
3.5 hydraulic station motor :1set
3.6 gear pump 1set
4. CNC system
Cabinet body adopt JJT sheet make ,control electrical appliance(Star delta start)Domestic high level quality components are adopted,PLC control with automatic , point move ,manual three operate way,working cost low ,all the button all pit on the control cabinet ,easy to control .
