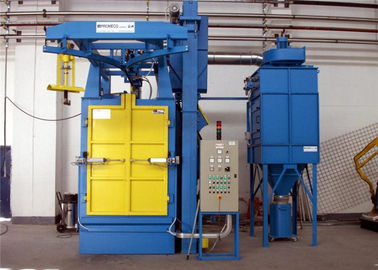

Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body

I'm Online Chat Now

Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body

Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body
Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body

Large Image :  Big Diameter Parts Shot Blasting Machine 6mm Manganese Steel Precision Welding Body

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: ISO9001
Model Number: Q378

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Shot Blasting Machine Big Diameter Parts Shot Peening Blaster as your required
Delivery Time: 25-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50Sets per month
Detailed Product Description
Condition: New Cleaning Process: 0.3t
Certification: CE, ISO, ISO9001 Elevator: Lifting Capacity:25t/h Power:2.2kw
Brand Name: HEIYAN Segregator: Separating Capacity:30t Separating Are Wind Speed:4~5m/s Qualified Pill/shot Content In Waste:≤1%
Clean Workpiece Type: Max(L×W×H) 1500mm×1500mm×1200mm Cleaning Standard: GB8923-88 A-B Sa2 1/2 Standard
High Light:

shot blasting equipment

,

shot blasting chamber

Shot Blasting Machine Big Diameter Parts Shot Peening Blaster





How To Operate The Double Hooks Shot Blasting Machine ?

Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Operation:



Roller conveyor machine is mainly used for processing long and (or) flat shape of the workpiece. These workpieces are continuously passed through the entering chamber, the shot blasting chamber and the cleaning chamber on a special conveyor roller table. The high efficiency shot wheel mounted on the shotcrete case can be used to handle the workpiece from each direction. The heavy duty shot wheel produced by TED The system due to the accelerated production cycle and its processing costs greatly reduced, but also to reduce the consumption of pellets, lower energy consumption.
Q69 shot blasting machine consists of automatic load and unloading system (Optional), roller conveyor system (Input roller, output roller and inside roller), blasting chamber (chamber frame, protection linear, shot blasting turbines, abrasive supply device), abrasive circulation system (Separator, bucket elevator, screw conveyor), abrasive collection unit (Customized), dust collection system and electric control system.



1. Dust collecting system uses dry dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 50 mg/m3.

2. Electrical system adopts Siemens system, and human-machine interface use 7 inches color touch control panel, 3D animation guidance prompt, powerful function.

3. All necessary labels on the machine are posted at distinct positions, such as safety tips, maintenance tips, operation standard, equipment status, customer service engineer card and service record sheet, etc.

4. All motors of the machine are driven by direct transmission, and the safety and maintenance performance are greatly improved.

Shot Blast Machine ideal to treat parts of all sizes and/or particularly fragile parts.
The available units are provided with hooks or hoists for heavier parts.
By installing magnetic drums and with appropriate devices it is also possible to carry out desanding operations.

Hook enter the Blasting Room interval in the set position for the back and forth movement and rotation of the workpiece are fully ejections, reduce ejections dead ends. Two hooks, a hook shot blasting indoor ejections, another hook handling the workpiece. The blasting treatment time can be adjusted. Shot blasting machine stops running after shot blasting chamber door open to bring in and take out the workpiece. The dust generated by blasting treatment two dust collector filter emissions.

China Supplier Bulk Casting Special Hook Type Shot Blasting Detailed product description:

Need shot blasting process workpiece directly hanging on a hook or hanger, artificial brought to the front Blasting Room traction system the hook automatically enters Blasting Room. Hook into the Blasting Room, shot blasting chamber goalkeeper pneumatic Close electrical interlock to prevent the workpiece in the blast chamber Shot Blasting the others mistakenly opened Blasting Room door.


Model Size of cleaning piece Max. Lifting height Total blasting capacity Total power
HSK-7/7Y

700*1100MM

800*1100MM

0.5T 180KG*2

7.5KW*2
23KW
Q377/7S
HSK-9/9Y

900*1600MM

1000*1500MM

1.0T 240KG*2

11.0KW*2
36KW
Q379/9S
HSK-10/10Y

1200*1500MM

900*1850MM

1.0T 240KG*2

11.0KW*2
39KW
KTHG-10F
KSB20/30/50/80 Designed and manufactured according to the workpiece size 2.0T-20.0T According to the design specifications Shot reasonable amount of artifacts Shot size according to the amount of power and ancillary components
KTHG-20/30/50
