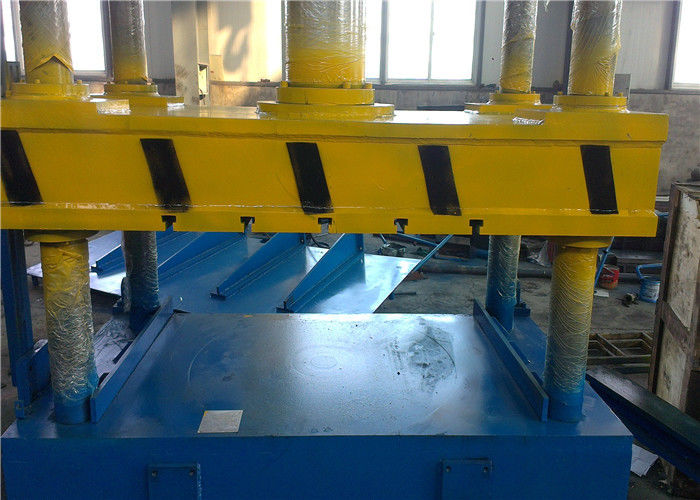

H Frame Type Hydraulic Press Machine For Reducer Cold Forming
Main feature of H Frame Type Hydraulic Press Machine For Reducer Cold Forming:
Manual and semi-automatic operation methods
The working pressure, travel range of slider can be adjusted according to process requirements. Two process modes for choose: constant pressure process and constant stroke process
The slider has two speeds, fast and slow speed mode, is convenient for the operator to control the workpiece.
Sliders and tables have T –slots, easy for installation of molds.
Four-column guides ensure stable accuracy and easy maintenance .
| Specification | |||||||||||||||
| Item | Unit | HYY-63 | HYY-100 | HYY-200 | HYY-315 | HYY-315A | HYY-500 | HYY-500A | HYY-630 | HYY-800 | HYY-1000 | HYY-1600 | HYY-2000 | HYY-2500 | |
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 5000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 | |
| Ejecting Force | KN | 180 | 190 | 300 | 400 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2500 | - | |
| Back Stroke Force | KN | 190 | 320 | 470 | 600 | 600 | 1000 | 1000 | 1000 | 1100 | 1300 | 1000 | 2600 | 1000 | |
| Stroke Length | mm | 400 | 600 | 710 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1200 | |
| Ejecting Stroke | mm | 150 | 200 | 200 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 400 | 300 | - | |
| Opening Height | mm | 600 | 900 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2500 | 2500 | |
| Speed of Slide | Idle Stroke | mm/S | 76 | 80 | 120 | 100 | 100 | 100 | 140 | 80 | 120 | 120 | 150 | 150 | 150 |
| Work | mm/S | 15 | 10 | 10-15 | 6-12 | 6-12 | 4-10 | 4-10 | 4-10 | 5-12 | 4-12 | 5-12 | 4-10 | 5-12 | |
| Back Stroke | mm/S | 70 | 50 | 80 | 65 | 65 | 80 | 80 | 70 | 90 | 90 | 150 | 150 | 120 | |
| Ejecting Speed | Upward | mm/S | 80 | 80 | 95 | 95 | 95 | 80 | 80 | 80 | 65 | 80 | 50 | 40 | - |
| Back | mm/S | 160 | 160 | 135 | 135 | 135 | 160 | 160 | 220 | 200 | 170 | 80 | 120 | - | |
| Bolster Surface | L.R. | mm | 520 | 690 | 1000 | 1260 | 2000 | 1400 | 2200 | 1600 | 1500 | 1500 | 2500 | 2000 | 2800 |
| F.B. | mm | 490 | 630 | 900 | 1120 | 1400 | 1400 | 1400 | 1600 | 1500 | 1500 | 1800 | 2000 | 2400 | |
| Overall Dimension | L.R. | mm | 4060 | 5000 | 5145 | 5100 | 4900 | 8300 | 8000 | 3650 | |||||
| F.B. | mm | 3525 | 3525 | 4600 | 4200 | 3400 | 3000 | 3000 | 5900 | ||||||
| Above Ground | mm | 2592 | 3090 | 3950 | 4390 | 4680 | 5700 | 5700 | 6000 | 7100 | 7500 | 5925 | 7660 | 7530 | |
| Power of Motor | KW | 7.5 | 7.5 | 22 | 22 | 22 | 44 | 46 | 60 | 74 | 68 | 91..6 | 183 | 156 | |
| Weight | Kg | 3000 | 3500 | 10500 | 15500 | 28000 | 29000 | 42000 | 42000 | 51000 | 54000 | 142000 | 148000 | ||
H Frame Type Hydraulic Press Machine For Reducer Cold Forming for the universal hydraulic machine, by the host and the drive mechanism composed of a wide range of universal plastic material applied to suppress, punching, bending, and calibration equipment pressure and press molding and so on.
