Short Radius 45 Degree 1D 316L Stainless Steel Elbow Forming Machine

I'm Online Chat Now

Short Radius 45 Degree 1D 316L Stainless Steel Elbow Forming Machine

small.img.alt small.img.alt small.img.alt

Large Image :  Short Radius 45 Degree 1D 316L Stainless Steel Elbow Forming Machine

Product Details:

Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Machine Type: Cold Push Elbow Machine After-sales Service Provided: Field Maintenance And Repair Service
Wall Thickness: 3~30mm Mould Clamping Force (KN): 1000-23000
Main Thrust (KN): 630-12000 Work Pressure (MPa): 25
Motor Power (KW): 11-110 Radius: 1D,1.5D
Degree: 30°,45°,90° Bending Material: Carbon Steel,alloy Steel,satinless Steel
High Light:

316L Stainless Steel Elbow Forming Machine


Short Radius Elbow Forming Machine


1D Elbow Making Machine

China Short Radius 45 Degree 1D 316L Stainless Steel Elbow Forming Machine


1.Main Features

1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.


The main feature of the ball-type cold push elbow machine is that it is cheap in cost but low in efficiency and requires more labor.
The main feature of the mandrel cold return elbow machine is the high cost, but the efficiency is also high, and it saves manpower
Cold push elbow machine is suitable for producing stainless steel and carbon steel elbow of φ21mm-φ530mm, 1D, 1.5D.

We not only produce elbow machines, but also mechanical equipment such as pipe benders, tees, pipe expanders, presses, beveling machines and supporting molds.


Cold push elbow machine is mainly used for stainless steel elbow forming. If your product is carbon steel or alloy steel elbow, it is recommended to choose intermediate frequency heating elbow machine.
Cold push elbow machine is used to form the elbow. The main power is hydraulic cylinder. There are two ways to form the ball, the ball type and the core rod type.


3.Product Paramete


Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Ratedworking pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000

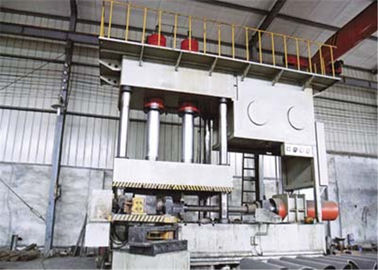

Short Radius 45 Degree 1D 316L Stainless Steel Elbow Forming Machine 0
