Carbon Steel And Stainless Steel Tee Forming Machine

I'm Online Chat Now

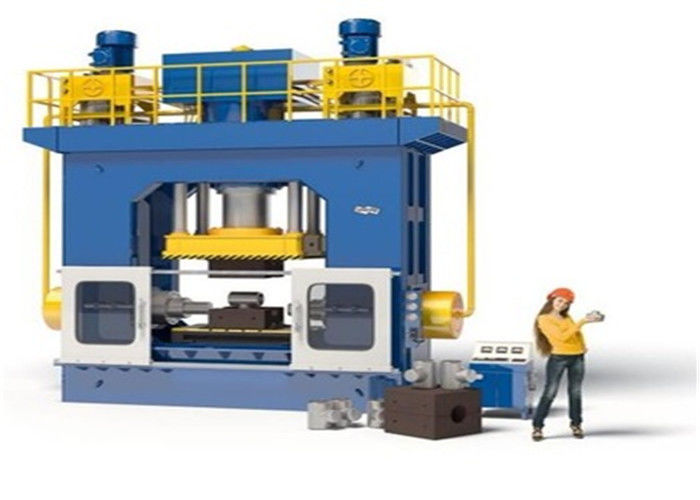

Carbon Steel And Stainless Steel Tee Forming Machine

Carbon Steel And Stainless Steel Tee Forming Machine
Carbon Steel And Stainless Steel Tee Forming Machine Carbon Steel And Stainless Steel Tee Forming Machine Carbon Steel And Stainless Steel Tee Forming Machine

Large Image :  Carbon Steel And Stainless Steel Tee Forming Machine

Product Details:

Place of Origin: Hebei,China
Brand Name: HeiYan
Certification: CE
Model Number: HYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 sets per month
Detailed Product Description
Model Number: HYT Dimension (L*W*H): 4500*2550*6000
Voltage: 220V/380V/600V Motor Power (KW): 30KW
Slide Stroke (mm): 200mm Working Speed: 10-24mm/s
Nominal Pressure (KN): 360KN Return Force (KN): 300KN
Weight (T): 65T After-sales Service: Field Maintenance And Repair Service
High Light:

automatic forming machine

,

steel tee making machine

Diameter 325mm reducing diameter carbon steel and stainless steel tee machine


Tee machine for the formation of tee, the main power is hydraulic cylinder.Tee machine itself belongs to non - standard products, so there is no specific specifications and models, we can directly customized according to customer requirements.Tee diameter from 21mm to 630mm, wall thickness from 3mm to 20mm we can do.
In order to ensure the stability of water pressure, we use a pressure equalizer to stabilize the water pressure in the copper pipe to squeeze the three, so that the copper pipe in the extrusion process to maintain a constant pressure;The two sides of the cylinder to adjust the synchronization performance, we also used the synchronizer to synchronize the two sides of the cylinder, so as to achieve a higher yield (can process the diameter of more than 7 mm of copper tube, pass rate of more than 98%, molding cycle of about 10 seconds/time).
The tee machine is suitable for the special hydraulic press made of carbon steel and stainless steel pipes, suitable for the extrusion molding of tee fitting joints of various specifications to change the position of the side cylinder, can be processed and manufactured 90 degrees, 135 degrees and other angles of tee pipe joints.
Our tee machine factory is the most professional hydraulic three-way machine equipment manufacturers, specializing in the production and manufacturing of various mechanical equipment.The company after many years of production on the three - way machine gradually developed.Modern cutting skills are mainly numerical control skills, as long as the use of this skill to ensure the full automation of cutting skills, precision.The use of this commodity is must pay attention to careful maintenance, a number of operations, at any time to listen to the sound of the use of this commodity is not normal, use adhere to an outstanding environment, if you meet any problems by professional repair.


SpecificationUnitHYT-315HYT-500HYT-1000HYT-1500HYT-2000HYT-4000
Tee OD rangelnch1~43~64~88~1210~1620~28
Master
cylinder
Normal forceKN3150500010000150002000040000
Work strokemm4504806106708001200
Go down speedmm/s608080808080
Work forward speedmm/s8~128~128~128~128~128~12
Return stroke speedmm/s80100100100100100
Side
cylinder
Normal forceKN315050008000125001800040000
Work strokemm300320340360410500
Advance speedmm/s10~1510~1510~1510~1510~1510~15
Return stroke speedmm/s606060606060
Push-out
cylinder
Normal forceKN30040050063015002000
Work strokemm300300400450550700
Workbench
effective area
Right and leftmm550750900120014001800
Front and backmm400580800100012001500
The max distance from slide block to workbenchmm190250370460520650
Center high of side cylindermm98011001350180019002500
Motor powerKW304574110220330


Application:
It can apply for making stainless steel tee, carbon steel tee,
Features:
1. Hydraulic Tee Forming Press/tee making machine has rigid construction assures highly reliable operation.
2. Adopt Germany technology.
2. Special hydraulic circuit design improve working efficiency.
3. High efficiency and low noise hydraulic system can save energy and improve working environment.
4. User-friendly touch-screen panel provides easy operation and trouble-shooting.
5. The Safety inter-lock device assures perfect operator safety.

Carbon Steel And Stainless Steel Tee Forming Machine 0Carbon Steel And Stainless Steel Tee Forming Machine 1
