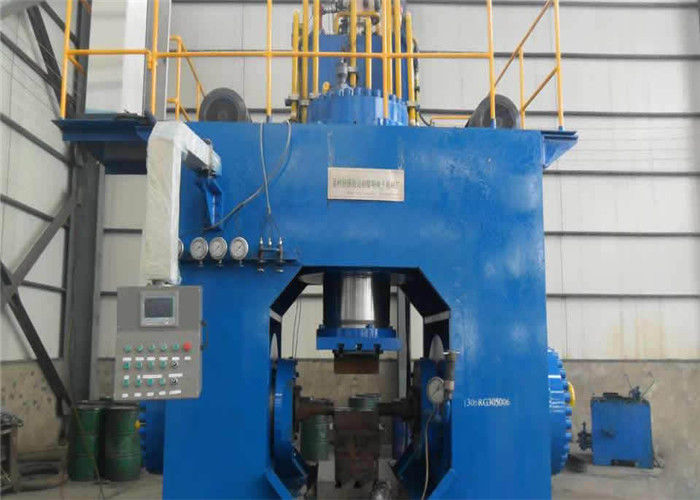

24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure

I'm Online Chat Now

24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure

China 24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure supplier
24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure supplier 24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure supplier 24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure supplier

Large Image :  24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure

Product Details:

Place of Origin: China
Brand Name: HeiYan
Certification: CE
Model Number: HYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 sets per month
Contact Now
Detailed Product Description
Model Number: HYT Voltage: 220V/380V/600V
Motor Power (KW): 30KW Slide Stroke (mm): 200mm
Working Speed: 10-24mm/s Return Force (KN): 300KN
Weight (T): 58T After-sales Service: Field Maintenance And Repair Service

24 inch large carbon steel stainless steel tee machine made in China


Tee molding machine is used for carbon steel, stainless steel pipe into a special hydraulic machine, suitable for a variety of specifications of tee pipe fitting joint extrusion molding change the position of the cylinder, can be processed and manufactured 90 degrees, 135 degrees and other angles of tee pipe joint.The diameter of the tee is 21mm-630mm, and the wall thickness is 3mm-20mm.Hydraulic system of three-way forming machine is hydraulic power mechanism installed on the top of the fuselage, by pump, motor, cartridge valve integration block, fuel tank and other components, the power mechanism includes oil filtration, oil temperature oil level display and other devices.The output flow of the main oil pump is constant power and can vary with the pressure.The structure of the three-way forming machine is the optimized design of the whole frame fuselage to ensure the strength, the welding parts for non-destructive flaw detection, after welding operation aging treatment, to ensure the complete elimination of stress, equipment in use without deformation.Tee machine is provided with T row groove under the slider and above the work table for mounting the mold.The dead point lock device on the slider is provided to prevent the slider from sliding.The power mechanism is placed on the top of the machine, and the top of the fuselage is provided with a safety platform and a fence.Slide guide adopts non-recovery type automatic circulation thin oil ruiyu sliding, and is equipped with oil box and fault display device.


SpecificationUnitHYT-315HYT-500HYT-1000HYT-1500HYT-2000HYT-4000
Tee OD rangelnch1~43~64~88~1210~1620~28
Master
cylinder
Normal forceKN3150500010000150002000040000
Work strokemm4504806106708001200
Go down speedmm/s608080808080
Work forward speedmm/s8~128~128~128~128~128~12
Return stroke speedmm/s80100100100100100
Side
cylinder
Normal forceKN315050008000125001800040000
Work strokemm300320340360410500
Advance speedmm/s10~1510~1510~1510~1510~1510~15
Return stroke speedmm/s606060606060
Push-out
cylinder
Normal forceKN30040050063015002000
Work strokemm300300400450550700
Workbench
effective area
Right and leftmm550750900120014001800
Front and backmm400580800100012001500
The max distance from slide block to workbenchmm190250370460520650
Center high of side cylindermm98011001350180019002500
Motor powerKW304574110220330



Tee Elbow cold forming machine of model YSLT100A could be designed and manufactured for manufacturing equal and reducing tees of sie from 1/2" to 4" with thickness from SCH10 to XXS of stainless steel, carbon steel, alloy steel, monel, nickel alloy, but the normal model just will be designed and manufactured for manufacturing maximum thickness up to SCH80.
Main features:
1. It is constructed with strong metal frame with good apearence and stable functioning.
2. It has individual power construction and electrical system,adopts reliable PLC button centralized control, use programmed touch screen operation system, apply proportional valve to regulate pressure, it will pressurized in curve, which can be conveniently adjusted and operated both manually and automatically.
3. Our specical designing could reduce the blank size of raw material.


24 Inch Large Carbon Steel Tee Forming Machine 360KN Nominal Pressure
