Water Cooling Medium Frequency Power Source For Heating Induction Equipment

Product Details

Place of Origin: Cangzhou,Hebei,China

Brand Name: Heiyan

Certification: ISO,CE,SGS,BV

Model Number: KGPS-200KW

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable and Competitive

Packaging Details: Medium Frequency Power Sourse for Heating Induction Equipment Packaging Details Packed in wooden cases

Delivery Time: 10-30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 30 Sets per Month

Get Best Price
Product Details
Highlight:

power supply unit

,

medium frequency power supply

Product Name:
Medium Frequency Power Sourse For Heating Induction Equipment
Power Source:
Electric
Voltage:
380v
Cooling:
Water
Application:
Heating, Forging, Melting, Hardening And Etc
Work Condition:
Continuously For 24 Hours
System:
IGBT Control
Condition:
New
Warranty:
24 Months
Fter-sales Service Provided:
Engineers Available To Service Machinery Overseas
Product Name:
Medium Frequency Power Sourse For Heating Induction Equipment
Power Source:
Electric
Voltage:
380v
Cooling:
Water
Application:
Heating, Forging, Melting, Hardening And Etc
Work Condition:
Continuously For 24 Hours
System:
IGBT Control
Condition:
New
Warranty:
24 Months
Fter-sales Service Provided:
Engineers Available To Service Machinery Overseas
Product Description

Water Cooling Medium Frequency Power Source For Heating Induction Equipment





The power factor reaches 0.99 under the condition of full power output. The integrated circuit board is adopted and the current and voltage are adjusted internally. The core components are high performance, high density and large-scale ASIC integrated circuit produced in the United States, which are digitized. The rectifier trigger part does not need any adjustment, and has the advantages of high fraud reliability, high pulse symmetry, strong anti-interference ability and fast response speed.



Technical specification of Medium Frequency Power Sourse for Heating Induction Equipment:

Model Rated power

Rated frequency

(KHZ)

Temperature℃

Power consumption

(KWH/T)

Work piece diameter (MM)
KGPS50KW 50KW 10 900-1250 350-450 4-30
KGPS100KW 100KW 8-10 900-1250 350-450 19-41
KGPS150KW 150KW 6-8 900-1250 350-450 19-41
KGPS200KW 200KW 6-8 900-1250 350-450 24-51
KGPS250KW 250KW 6-8 900-1250 350-450 24-51
KGPS300KW 300KW 2-4 900-1250 350-450 29-61
KGPS350KW 350KW 2-4 900-1250 350-450 29-61
KGPS400KW 400KW 2-4 900-1250 350-450 29-81
KGPS500KW 500KW 2-4 900-1250 350-450 39-81
KGPS600KW 600KW 1-2 900-1250 350-450 49-101
KGPS750KW 750KW 1-2 900-1250 350-450 49-101
KGPS1000KW 1000KW 0.5-1 900-1250 350-450 59-121

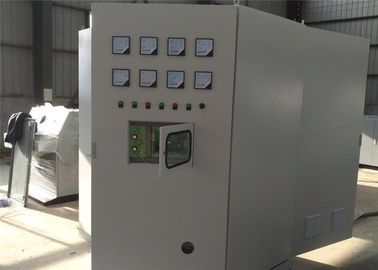

Medium Frequency Power Sourse for Heating Induction Equipment



Induction Heater Parameter of Medium Frequency Power Sourse for Heating Induction Equipment:



Model KGPS-200KW (Three phase)
work power 340V-430V
Maximum input current 300A
Output power 200KW
fluctuating frequency 1-20khz
output current 400-7500A
the flow rate of cooling water 0.08-0.16MPa 20L/Min
water temperature protection point 50C
product size main : 1300 x 800 x 1150 mm
transformer : 950 x 500 x 850 mm
net weight main : 280kg
transformer : 120 kg

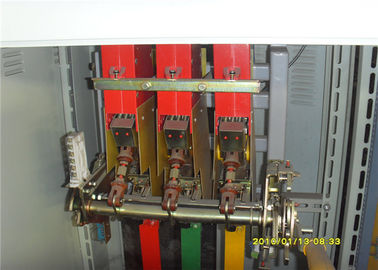

Medium Frequency Power Sourse for Heating Induction Equipment

Features of Medium Frequency Power Sourse for Heating Induction Equipment:

1) Wide frequency tracking range:0.2kHz-600kHz


2) The load adaptation range is wide : series resonance is not afraid of no load , parallel resonance is not afraid of heavy load


3) Intelligent protection function: power regulation range 1%-100%, superior to most domestic manufacturers.


4) Intelligent protection function: with overvoltage, overcurrent, overfrequency, overheating, leakage and other restrictive protection functions, but also with water pressure, lack of phase, short circuit and other conventional hardware protection functions, all faults can be remembered

5)adopt Rital cabinet , equipped with IP54 protection grade and equipped with industrial temperature and humidity adjustment air conditioning,signal transmission by optical fiber to effectively avoid the temperature, humidity, electromagnetic interference caused by power fluctuations and faults.



6)100% success rate of startup: 100% success rate of starting equipment under any working condition


7)High startup speed: equipment startup to maximum power stable output time less than 0.15 seconds, much faster than traditional equipment startup time of 1-2 seconds


8)Good repetition consistency: all digital power control, Power resolution can be achieved 0.25‰,through the touch screen directly input set power, can avoid the traditional equipment with analog potentiometer to adjust the power caused by power fluctuations


9)Multifunctional extended interface: easy to connect with machine tool production line and digital communication interface, can realize centralized control of industrial field.



Advantages of our Medium Frequency Power Sourse for Heating Induction Equipment:

Medium Frequency Power Sourse for Heating Induction Equipment



1. Big reactor design:

Strong filtering ability, greatly reduce harmonic pollution to the grid, suppress the current mutation, protect the transformer.

2. Large section area of current carrying discharge:

Select 8×60 copper row, large cross-sectional area, strong current carrying capacity, reduce heat.

3. Cabinet uses RITTAL brand:

Durable and beautiful

4. Appliances: SCHNEIDER brand

5. Button: IDEC brand

6. Insulating plate:Durable and high insulation grade, beautiful

7. Water segregator: Stainless steel

8. Cooling water pipe: Specially customized, high temperature and high pressure

9. Inverter increase resistance and capacity absorption: it can effectively suppress the instantaneous oscillation and high-frequency current of operating overvoltage, so that the waveform of overvoltage becomes slow, the steepness and amplitude are reduced, plus the damping effect of resistance, so that the high frequency oscillation rapidly attenuates



Medium Frequency Power Sourse for Heating Induction Equipment
