Product Details
Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE, ISO
Model Number: HYBSM200214
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negetiable
Packaging Details: Semi Automatic Band Saw Machinery Stainless Steel band saw cutting Sharpen Blade on pallet or wooden case
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50sets per month
Product Name: |
Band Saw Machinery Stainless Steel Band Saw Cutting Machine Sharpen Blade |
Main Generator Power(kw): |
3 |
Hydraulic Generator Power(kw): |
0.75 |
Cooling Generator Power (kw): |
0.09 |
Working Clamp Style: |
Hydraulic |
Color: |
Black Red |
Product Name: |
Band Saw Machinery Stainless Steel Band Saw Cutting Machine Sharpen Blade |
Main Generator Power(kw): |
3 |
Hydraulic Generator Power(kw): |
0.75 |
Cooling Generator Power (kw): |
0.09 |
Working Clamp Style: |
Hydraulic |
Color: |
Black Red |

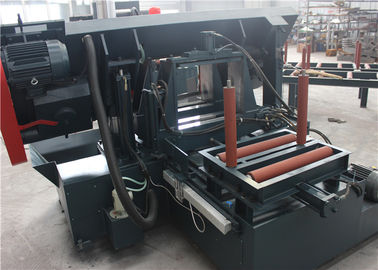

Semi Automatic Band Saw Machinery Stainless Steel band saw cutting Sharpen Blade
Maintenance content
Semi Automatic Band Saw Machinery Stainless Steel band saw cutting Sharpen Blade Daily maintenance:
a. Sufficient lubricating grease (oil) for lubricating parts
b. The transmission mechanism operates normally, and the fastening bolts of all parts are not loose; C. the safety protection device is complete and reliable
d. The motor operates normally, the saw blade is moderately tight, and there is no obvious vibration and noise; e. check whether the hydraulic system pressure is within the rated range, and the instrument indication is sensitive and reliable; F. clean the working vise, guide frame, and sawdust in the front and rear wheel boxes before and after work; g. clean the inside and outside of the machine tool without oil stain. 4.1.2 weekly maintenance
a. Check the operation of saw blade and adjust the verticality, pressure and clearance according to the situation
b. Check whether the fastening bolts of each transmission mechanism are loose, whether the connection is reliable, and whether there is scratch or noise; C. check whether the coolant level is higher than 1 / 2 of the oil level, and if it is less than 1 / 2, supplement it
d. The motor shall be fixed and operated reliably and stably, the air vane shield shall be intact and free of dust, noise and overheating; e. the inside and outside of the distribution cabinet shall be cleaned; the peripheral electrical equipment such as buttons, sensors and electrical control boxes shall be free of oil and dust; F. check whether the cable is damaged, the main engine is grounded reliably, and the sockets and pins are loose; g. check the hydraulic system oil The position is high or low, and it shall be supplemented in time when it is insufficient.
4.1.3 monthly maintenance
a. Semi Automatic Band Saw Machinery Stainless Steel band saw cutting Sharpen BladeCheck the quality of hydraulic oil, if it is dirty, filter or replace it; B. check the filter of oil tank and return oil filter screen, clean the filter screen, and remove foreign matters; C. check the oil level and quality of oil tank, and supplement or replace it according to the situation; D. check whether the coolant level and pipeline are unblocked and deteriorated, and replace them if necessary; e. check the hydraulic electromagnetism Check whether the valve acts sensitively and firmly, and whether there is noise and overheating; g. clean the inside and outside of the distribution cabinet, with clear lines and no dust; F. check the operation of the oil pump for noise and overheating.
4.2 maintenance requirements
a. Weekly maintenance covers daily maintenance and monthly maintenance covers weekly maintenance. B. professional equipment such as distribution box shall be carried out under the guidance and cooperation of equipment maintenance personnel.
4.3 maintenance time and frequency
Daily maintenance shall be carried out after each shift; weekly maintenance shall be carried out at 4:30 p.m. every Friday
1. Pay attention to observe whether all moving parts operate normally at any time. If there is any abnormal sound response, stop immediately and check and eliminate it. A kind of
2. Clean the chips in the working table and saw frame in time to avoid blocking the sawtooth. 3. Regularly check the cleanliness and oil quantity of coolant and hydraulic oil to ensure that the oil supply and water supply are sufficient, and add appropriate cutting fluid to avoid the abnormal operation of the machine due to the blockage of hydraulic components. 4. Add enough lubricating oil (grease) to the guide rail surface and each lubricating point. Add lubricating grease to the saw wheel bearing once in half a year. For the vertical pulling sleeve of saw frame lifting, add oil once per shift. A kind of
5. The surface of the rolling guide rail under the rotating body of the saw frame shall be kept clean, and the oil shall be added frequently when the angle is constantly changed. A kind of
6. After the work, loosen the saw blade. A kind of
7. The lubricating oil in the reducer should be changed regularly (half a year to one year). 8. Wipe the machine tool after work to keep the cleanliness of all parts of the machine tool.
Type | GZ 4235 |
Cut capacity W*H (mm) | round 350 |
square 350*400 | |
Bundle cutting W*H (mm) | Max.350*230 |
Min.200*20 | |
Saw belt size(mm) | 4220*34*1.1 |
belt line speed(m/min) | 40/60/80 |
Main generator power(kw) | 3 |
Hydraulic generator power(kw) | 0.75 |
Cooling generator power (kw) | 0.09 |
Working clamp style | Hydraulic |
Saw belt tighten style | Hand |
Main transmit structure | Turbine |
Loading style | Extra roller |
Packing dimensions(mm) L*M*H | 2100*110*1500 |
Weights of machine (kgs) | 1970 |
