Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving

I'm Online Chat Now

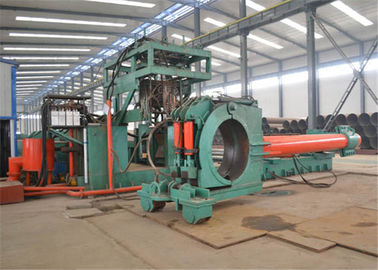

Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving

Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving
Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving

Large Image :  Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving

Product Details:

Place of Origin: China
Brand Name: Hei Yan
Certification: ISO CE
Model Number: HYG

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case or plastic film
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 3 Sets per month
Detailed Product Description
Bending Size: 2-48Inch Process Thickness: 3-100mm
Bending Radius: 2-10D Heating Power: 200-1000kw
Input Power: 380V Control System: PLC
High Light:

tube bending machine

,

pipeline bending machine

Oil Pipeline 5D Long Radius Bends Induction Bending Making Machine





Main model and main technical parameters:



Max size Model Heating power Cylinder capacity Thickness
6” HYG-159 200KW IDΦ140 ODΦ168 5-20
8” HYG-219 200KW IDΦ140 ODΦ168 5-20
12” HYG-325 250KW IDΦ180 ODΦ219 5-20
16” HYG-426 350KW IDΦ180 ODΦ219 5-20
20” HYG-530 400KW IDΦ180 ODΦ219 5-20
24” HYG-630 500KW IDΦ200 ODΦ245 5-20
28” HYG-720 600KW IDΦ200 ODΦ245 5-20
32” HYG-813 800KW IDΦ220 ODΦ273 5-20
36” HYG-914 800KW IDΦ250 ODΦ299 5-20
48” HYG-1220 1000KW IDΦ280 ODΦ325 5-20
56” HYG-1420 1000KW IDΦ280 ODΦ325 5-20
60” HYG-1520 1000KW IDΦ280 ODΦ325 5-20
64” HYG-1620 1000KW IDΦ320 ODΦ377 5-20



Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving 0



The Oil Pipeline 5D Long Radius Bends Induction Bending Making Machine is suitable for oil, natural gas, chemical, electric power, construction and other industries.
The bending machine principle adopt induction heating and hydraulic cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Equipment structure,
Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.
Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.



Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving 1



The numerous advantages of the Oil Pipeline 5D Long Radius Bends Induction Bending Making Machine bending process are now widely recognised and deployed across a diverse range of industries.

Induction bent pipes and tubes are typically used for anything from a large scale conduit to heat exchange and movement of a plethora of liquids and gases.

Bending by Heiyan for structural applications meets N.S.S.S tolerances and conforms to ASME standards for petrochemical applications.

This remarkable application flexibility means that we are able to provide a full service to a wide range of industries, including (but not limited to): -

The numerous advantages of the induction bending process are now widely recognised and deployed across a diverse range of industries.

Induction bent pipes and tubes are typically used for anything from a large scale conduit to heat exchange and movement of a plethora of liquids and gases.

Bending by Heiyan for structural applications meets N.S.S.S tolerances and conforms to ASME standards for petrochemical applications.



Oil Pipeline 5D Long Radius Tube Bending Machine 380V Input Power Energy Saving 2
