Product Details
Place of Origin: CHINA
Brand Name: Hei Yan
Certification: CE ISO
Model Number: HYG
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case or plastic film
Delivery Time: 30 days
Payment Terms: T/T, L/C, MoneyGram, Western Union, D/P
Supply Ability: 6 Sets per month
Usage: |
Steel Pipe Profile Bending |
Bending Size: |
Up To 2000mm |
Bending Thickness: |
Up To 100mm |
Bending Angle: |
0-180degree |
Radius: |
2-10D |
Heating Power: |
200-1000KW |
Usage: |
Steel Pipe Profile Bending |
Bending Size: |
Up To 2000mm |
Bending Thickness: |
Up To 100mm |
Bending Angle: |
0-180degree |
Radius: |
2-10D |
Heating Power: |
200-1000KW |

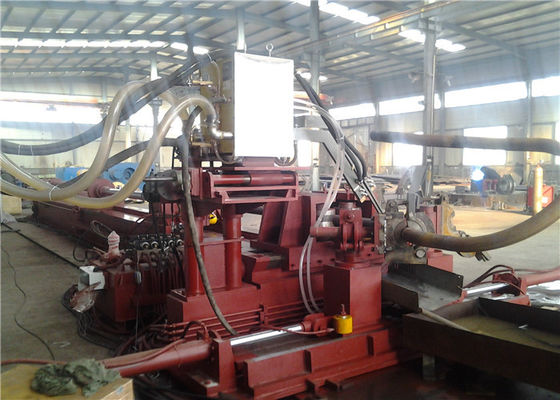

Automatic Control Induction Pipe Bending Machine For Construction
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Equipment structure,
Automatic Control Induction Pipe Bending Machine For Construction including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.
Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.
| Max size | Model | Heating power | Cylinder capacity | Thickness |
| 6” | HYG-159 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 8” | HYG-219 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 12” | HYG-325 | 250KW | IDΦ180 ODΦ219 | 5-20 |
| 16” | HYG-426 | 350KW | IDΦ180 ODΦ219 | 5-20 |
| 20” | HYG-530 | 400KW | IDΦ180 ODΦ219 | 5-20 |
| 24” | HYG-630 | 500KW | IDΦ200 ODΦ245 | 5-20 |
| 28” | HYG-720 | 600KW | IDΦ200 ODΦ245 | 5-20 |
| 32” | HYG-813 | 800KW | IDΦ220 ODΦ273 | 5-20 |
| 36” | HYG-914 | 800KW | IDΦ250 ODΦ299 | 5-20 |
| 48” | HYG-1220 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 56” | HYG-1420 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 60” | HYG-1520 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 64” | HYG-1620 | 1000KW | IDΦ320 ODΦ377 | 5-20 |
The Automatic Control Induction Pipe Bending Machine For Construction principle adopt induction heating and hydraulic cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range
