Product Details
Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: HYBSM200215
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: China Automatic Double Column Horizontal Metal Bandsaw Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Saw Belt Size(mm): |
5370*41*1.1 |
Belt Line Speed(m/min): |
40/60/80 (frequency Control Available) |
Main Generator Power(kw): |
5.5 |
Hydraulic Generator Power(kw): |
1.5 |
Cooling Generator Power (kw): |
0.09 |
Working Clamp Style: |
Hydraulic |
Saw Belt Size(mm): |
5370*41*1.1 |
Belt Line Speed(m/min): |
40/60/80 (frequency Control Available) |
Main Generator Power(kw): |
5.5 |
Hydraulic Generator Power(kw): |
1.5 |
Cooling Generator Power (kw): |
0.09 |
Working Clamp Style: |
Hydraulic |

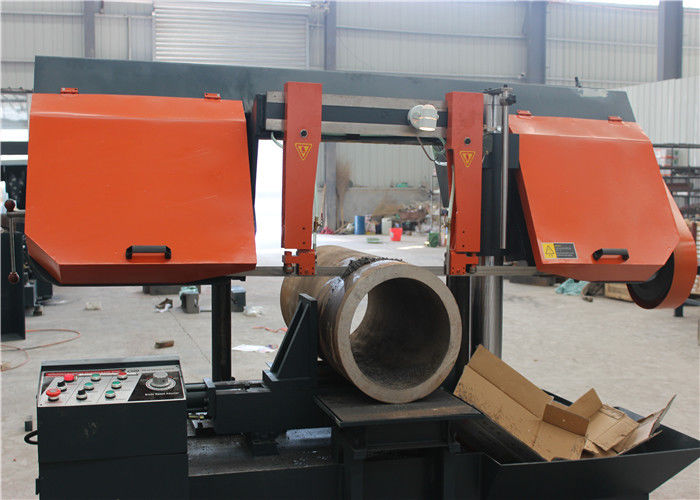

China Automatic Double Column Horizontal Metal Bandsaw Machine
1. The use of this machine tool shall not exceed its specified purpose and scope.
2. Before using the machine tool, you must carefully read the operation manual. A kind of
3. The user must carry out professional training for the operators of the machine tool, so that they can finish safely
Ability of various operations to prevent injury and damage to people and machine tools due to improper operation. A kind of
4. The user must correctly install and use the machine tool in strict accordance with the instructions,
A proper operation area shall be provided around the machine tool. The operation area shall be clean and free from any obstacle that may hinder the operator, so as to carry out safe operation and daily maintenance. A kind of
5. The operator must operate according to the requirements of the training and operation manual and regularly
Maintain the machine tool to maintain safe operation conditions. A kind of
6. The operator must work under the condition that the machine tool has safety protection device and check it frequently
Check their integrity. It is strictly forbidden to remove the safety protection device on the machine tool at will. If necessary, protective fence shall be set around the machine tool. A kind of
7. The operator must cover all protective covers before driving, and at the same time, the band saw blade can be adjusted for protection
Adjust the cover as close to the workpiece as possible. When the machine tool is running, all kinds of protective covers shall not be opened. 8. When removing and replacing the band saw blade, it must be confirmed that the machine tool has stopped running before opening the saw
Wheel guard, and check whether the support of guard is firm and reliable. When disassembling the saw blade, protective gloves must be worn to prevent stabbing and stabbing. A kind of
9. When the machine tool is working, it is strictly forbidden for any part of the body to contact the running band saw blade and enter into the processing
It is forbidden to take stuck or cut-off workpieces. 10. It is forbidden to operate and maintain the machine tool with gloves and loose clothes.
Type | GZ 4250 |
Cut capacity W*H (mm) | round 500 |
square 500*500 | |
Bundle cutting W*H (mm) | / |
/ | |
Saw belt size(mm) | 5370*41*1.1 |
belt line speed(m/min) | 40/60/80 (frequency control available) |
Main generator power(kw) | 5.5 |
Hydraulic generator power(kw) | 1.5 |
Cooling generator power (kw) | 0.09 |
Working clamp style | Hydraulic |
Saw belt tighten style | Hand |
Main transmit structure | Turbine |
Loading style | Extra roller |
Packing dimensions(mm) L*M*H | 2800*1300*1800 |
Weights of machine (kgs) | 2800 |
