Product Details
Place of Origin: China
Brand Name: HeiYan
Certification: CE
Model Number: HYT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 sets per month
Model Number: |
HYT |
Voltage: |
220V/380V/600V |
Motor Power (KW): |
30KW |
Slide Stroke (mm): |
200mm |
Working Speed: |
10-24mm/s |
Nominal Pressure (KN): |
360KN |
Return Force (KN): |
300KN |
After-sales Service: |
Field Maintenance And Repair Service |
Model Number: |
HYT |
Voltage: |
220V/380V/600V |
Motor Power (KW): |
30KW |
Slide Stroke (mm): |
200mm |
Working Speed: |
10-24mm/s |
Nominal Pressure (KN): |
360KN |
Return Force (KN): |
300KN |
After-sales Service: |
Field Maintenance And Repair Service |

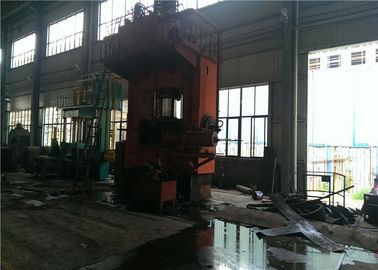

carbon steel and stainless steel tee forming machines made in China for pipe connections
Tee machine is the production of tee machine, here the tee refers to the metal tee, whether it is carbon steel, alloy steel, stainless steel, and titanium alloy the company's production of tee machine can be produced.The production of tee tee machine generally has three kinds, hot draw tee machine, hot press tee machine, cold squeeze tee machine.
The characteristics of the hot draw tee machine is that the cost is low, but the extracted branch is not high enough, the need to weld a section of steel pipe.Hot pressing tee machine this kind of technology must first in order to make the wall thickness of the tee larger than SCH80 tee.
Cold extrusion tee machine, is also the most commonly used tee production method, now the size of the production is 1/2(21mm)-24(630mm), thickness is SCH80, it is characterized by high efficiency, low defective rate, reasonable price,generally a molding.
| Item | Unit | HYT-500A | |
| Nominal Force | KN | 2500*2 | |
| Return Force | KN | 405*2 | |
| Slide stroke | mm | 900 | |
| Opening Height | mm | 1400 | |
| Hydraulic cushion nominal pressure | KN | 1000*2 | |
| Hydraulic cushion return force | KN | 320*2 | |
| Hydraulic cushion stroke | mm | 350 | |
| The speed of the slipper | Idle stroke | mm/s | 200 |
| pressing | mm/s | 10-24 | |
| return | mm/s | 140 | |
| Cushion speed | Knock out | mm/s | 60 |
| Return | mm/s | 120 | |
| Effective table size | LR | mm | 2200 |
| FB | mm | 1600 | |
| Cushion size | LR | mm | 1720 |
| FB | mm | 1120 | |
| Overall dimensions | LR | mm | 5000 |
| FB | mm | 2600 | |
| Height | mm | 7150 | |
| Power of motor | KW | 30*2 | |
| Total weight | T | 70 | |
tee machine is mainly oil pump, motor, PLC control box, water tank, the corresponding model mold composition.Tee machine body belongs to non-standard products, so there is no detailed specifications and models, we can customize the tee machine according to the customer's request.The diameter of the tee is 21mm-630mm and the wall thickness is 3mm-20mm.
Mechanical tee and ordinary tee function difference.Mechanical tee is divided into groove mechanical tee and screw mechanical tee.It can be used to connect branch pipe directly on the steel pipe, and has many applications on the device of fire pipe and spray pipe.In demand for diversion or confluence can be used mechanical tee.Device method first in the steel pipe with a hole opening machine hole, and then the mechanical three card hole, hole by the sealing ring along the wall of the tube.Mechanical tee wire connection and groove type two.When connecting the three mechanical connections, the clearance between the three mechanical connections and holes should be checked.Mechanical tee hole spacing shall not be less than 1m.
