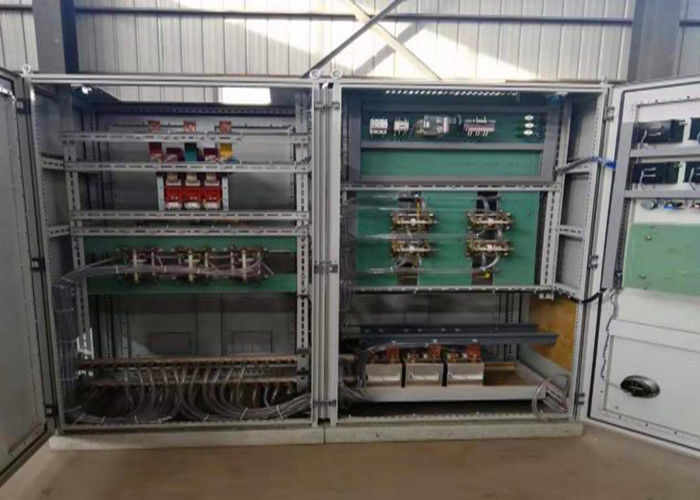

KGPS IGBT Control Medium Frequency Power Source 1T Rated Melting Capacity

I'm Online Chat Now

KGPS IGBT Control Medium Frequency Power Source 1T Rated Melting Capacity

large.img.alt
small.img.alt small.img.alt

Large Image :  KGPS IGBT Control Medium Frequency Power Source 1T Rated Melting Capacity

Product Details:

Place of Origin: Cangzhou,Hebei,China
Brand Name: Heiyan
Certification: ISO,CE,SGS,BV
Model Number: KGPS-200KW-1000KW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Competitive and Negotiable
Packaging Details: Medium Frequency Power Supply Band Heating Induction Equipment Packed in wooden cases
Delivery Time: 10-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets per Month
Detailed Product Description
Voltage: 380v Work Condition: Continuously For 24 Hours
System: KGPS IGBT Control Rated Melting Capacity: 1T For Cast Iron
Condition: New Usage: Melting Furnace, Melting ,iron, Steel,copper, Aluminum
Type: Induction Furnace Working Voltage: 380V±5%, 50/60HZ
High Light:

power supply unit

,

heater power supply

Medium Frequency Power Supply Band Heating Induction Equipment





Features of the our Medium Frequency Power Supply Band Heating Induction Equipment :

• Easy operation:

A full time operator specially for power supply is not needed .There is only one switch for turning on or off and one power adjustment knob. After started, the only thing that needs to be done is rotating the power adjustment knob to the largest location, others are controlled by the device itself.

• Safety protection functions of induction melting furnace:

1. The main circuit and short circuit protection

2. SCR overvoltage protection

3. Main circuit phase fault protection

4. The main circuit phase loss protection

5. Low water pressure protection

6. SCR overcurrent protection

• Highly reliable electrical control board

In the operation, the 3-phase current is balanced. Due to the advanced design, the 3-phase power supply's sequence could be connected randomly. Moreover there is no limit to connect to capacitor cabinet and furnace. All of these jobs can be judged to be adapted automatically by the device itself. It makes the installation and maintenance very easily.



Production Description of Medium Frequency Power Supply Band Heating Induction Equipment

1) Turn on and turn off easily,and power failure.

2) Adopt constant power to control the circuit, maintain constant power while malting, and keep faster melting rate.

3) Set up over voltage, over current and water deficient protector, and run safely.

4) The motherboard adopts CAD technology, integrated circuit board, low-fault-rate, easy-manipulating,effortless maintenance.

5) Zero voltage starts up softly, high initial over, no impact for the electric network.

6) Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, brass, steel,iron,stainless steel etc...



Technical Parameter of Medium Frequency Power Supply Band Heating Induction Equipment:

Model Input power(kw) Semlting capacity(T) Smelting(T/H)
KGPS-50 50 0 0
KGPS-100 100 1/9 1/9
KGPS-160 160 1/7 1/5
KGPS-250 250 1/4 1/3
KGPS-300 300 2/7 3/8
KGPS-400 400 1/2 5/9
KGPS-500 500 3/4 7/9
KGPS-750 750 1 1
KGPS-1000 1000 1 1/2 1 1/2
KGPS-1400 1400 2 2
KGPS-2000 2000 3 2 4/5
KGPS-3000 3000 5 4 2/7
KGPS-4000 4000 7 7
KGPS-4500 4500 8 7 1/2
KGPS-6000 6000 10 10 7/9






KGPS-

100/

1-8

KGPS-

160/

1-8

KGPS-

250/

1-8

KGPS-

350/

1-8

KGPS-

500/

1-8

KGPS-

750/

1-8

KGPS-

1000/

1-8

KGPS-

1500/

1-8

KGPS-

2000/

1-8

KGPS-

3000/

1-8

Rated output power 100 160 250 350 500 750 1000 1500 2000 3000
IF Frequency (Khz) 1-8 1-8 1-8 1-8 0.4-4 0.4-1 0.4-1 0.4-1 0.4-1 0.4-1
Rated input voltage (v) Thress phase 380V 50Hz Thress phase 660V
Rated input current (A) 180 280 440 610 880 1310 1016 1524 2032 3048
Rated direct voltage (V) 500 870

Rated direct

Current (A)

220 343 539 747 1078 1600 1245 1867 2490 3735
Rated output voltage(v) 700 1200
Main D.C.current(A) 250 380 550 800 1100 1700 1400 2000 2650 3900





APPLICATIONS of our Medium Frequency Power Supply Band Heating Induction Equipment:



A. Heating (hot forging, hot fitting and smelting):

B. Heat Treatment (surface quench):

It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:

C. Welding (braze welding, silver soldering and brazing)

It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material and different

D. Annealing (tempering and modulation)

Main control circuit board as the main part of the machine, we made in their research and development, and adopted by the company and built since the automatic welding and testing equipment to ensure that each set of machine can achieve the best effect, and we have main control board in stock lone time, can satisfy the parts supply problems.

Induction coils

The induction coil inside the furnace body is treated with two insulations. The first spray of high temperature insulation paint. The second round of glass fiber tape. The service life of the treated furnace lining and induction coil will increase by more than two times.



Medium Frequency Power Supply Band Heating Induction Equipment
