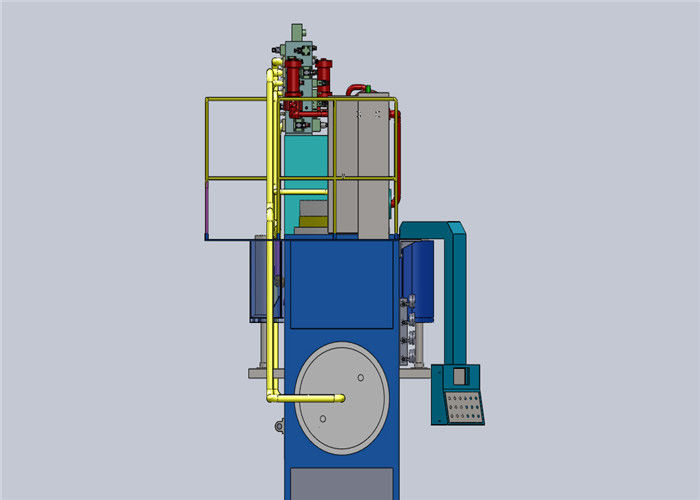

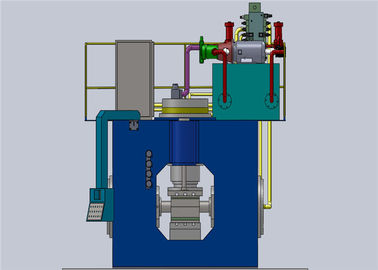

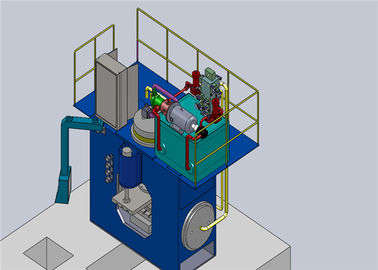

Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved

I'm Online Chat Now

Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved

Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved
Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved

Large Image :  Highly Durable SS Tee Forming Machine 200mm Slide Stroke Designed CE Approved

Product Details:

Place of Origin: Hebei,China
Brand Name: HeiYan
Certification: CE
Model Number: HYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 sets per month
Detailed Product Description
Model Number: HYT Dimension (L*W*H): 5000*2650*7000
Voltage: 220V/380V/600V Motor Power (KW): 30KW
Slide Stroke (mm): 200mm Working Speed: 10-24mm/s
Nominal Pressure (KN): 360KN Return Force (KN): 300KN
Weight (T): 65T After-sales Service: Field Maintenance And Repair Service
High Light:

automatic forming machine

,

tee forming equipment

Diameter 630mm reducing diameter carbon steel and stainless steel tee machine





A tee is a pipe connector.It is also called pipe tee, tee pipe fitting or tee joint, three generality in the central heating pipeline branch, the main purpose is wide, wide industrial area, wide application range.Common copper of tee in the refrigeration industry, the traditional copper tee mainly lead method, the air conditioning copper tube laser cutting certain length, the lead into the molten the air conditioning copper tube wall, after being lead in air conditioning copper tube wall condensation, eliminate the adhesion on the surface of the air conditioning copper, lead, and air conditioning copper tube branch of lead, in air conditioning copper tube extrusion port drill a small hole, then to the grinding tool through four column hydraulic press lead within the tee to parts processing of the pressure makes it will air conditioning copper tube extrusion processing for air conditioning copper pipe tee.Tee forming to the tee to heating the lead after melt out, if the shape of the tee is Y type or other special-shaped tee, only in the molten lead in air conditioning copper tube wall again, after being lead in air conditioning copper tube wall condensation, reoccupy high-speed punch press bending extrusion processing and processing of semi-finished products into the required shape, laser cutting away the product capacity, heating to make products in the lead melt out of the products covered in the acid to remove adhesion in air conditioning copper tube wall of lead, in addition to the lead after cold water to clean.In order to prevent the product rebound, but also with high - speed punch press or other equipment shaping.The three branches of the flat tee pipe are then passivated, dried, tested and packed by pickling.It is easy to cause human body to contact with lead in the process of processing the three tong in the way of injecting lead, and lead can cause serious harm to human body, it mainly ingests the body through respiratory system and digestive system, if lead enters human body, it is difficult to discharge even through drug treatment.Lead chemicals can enter the body through the lungs, digestive organs, skin and other ways, in the human body slowly scrimping, it can prevent the growth and development of red blood cells, harm the nerve center, resulting in memory loss.Meanwhile, rising prices for lead, a non-renewable source of energy, have made the three links more expensive to manufacture.



Specification Unit HYT-315 HYT-500 HYT-1000 HYT-1500 HYT-2000 HYT-4000
Tee OD range lnch 1~4 3~6 4~8 8~12 10~16 20~28
Master
cylinder
Normal force KN 3150 5000 10000 15000 20000 40000
Work stroke mm 450 480 610 670 800 1200
Go down speed mm/s 60 80 80 80 80 80
Work forward speed mm/s 8~12 8~12 8~12 8~12 8~12 8~12
Return stroke speed mm/s 80 100 100 100 100 100
Side
cylinder
Normal force KN 3150 5000 8000 12500 18000 40000
Work stroke mm 300 320 340 360 410 500
Advance speed mm/s 10~15 10~15 10~15 10~15 10~15 10~15
Return stroke speed mm/s 60 60 60 60 60 60
Push-out
cylinder
Normal force KN 300 400 500 630 1500 2000
Work stroke mm 300 300 400 450 550 700
Workbench
effective area
Right and left mm 550 750 900 1200 1400 1800
Front and back mm 400 580 800 1000 1200 1500
The max distance from slide block to workbench mm 190 250 370 460 520 650
Center high of side cylinder mm 980 1100 1350 1800 1900 2500
Motor power KW 30 45 74 110 220 330



Tee Elbow cold forming machine of model YSLT100A could be designed and manufactured for manufacturing equal and reducing tees of sie from 1/2" to 4" with thickness from SCH10 to XXS of stainless steel, carbon steel, alloy steel, monel, nickel alloy, but the normal model just will be designed and manufactured for manufacturing maximum thickness up to SCH80.

Main features:
1. It is constructed with strong metal frame with good apearence and stable functioning.
2. It has individual power construction and electrical system,adopts reliable PLC button centralized control, use programmed touch screen operation system, apply proportional valve to regulate pressure, it will pressurized in curve, which can be conveniently adjusted and operated both manually and automatically.
3. Our specical designing could reduce the blank size of raw material.
