Product Details
Place of Origin: Cangzhou,Hebei,China
Brand Name: Heiyan
Certification: ISO,CE,SGS,BV
Model Number: KGPS-200KW-1000KW
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Competitive and Negotiable
Packaging Details: Medium Frequency Power Source Use For Hot Pipe Bending Machine Packed in wooden cases
Delivery Time: 10-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets per Month
Power Source: |
Electric |
Condition: |
New |
Warranty: |
24 Months |
Usage: |
Melting Furnace, Melting ,iron, Steel,copper, Aluminum |
Working Voltage3: |
Phase , 380V±5%, 50/60HZ |
Output Power: |
100-10000kw |
Feature: |
Fasting Melting |
Start-up Success Rate: |
100% |
Max Temperature: |
500C - 2300C (custom Made) |
Power Source: |
Electric |
Condition: |
New |
Warranty: |
24 Months |
Usage: |
Melting Furnace, Melting ,iron, Steel,copper, Aluminum |
Working Voltage3: |
Phase , 380V±5%, 50/60HZ |
Output Power: |
100-10000kw |
Feature: |
Fasting Melting |
Start-up Success Rate: |
100% |
Max Temperature: |
500C - 2300C (custom Made) |

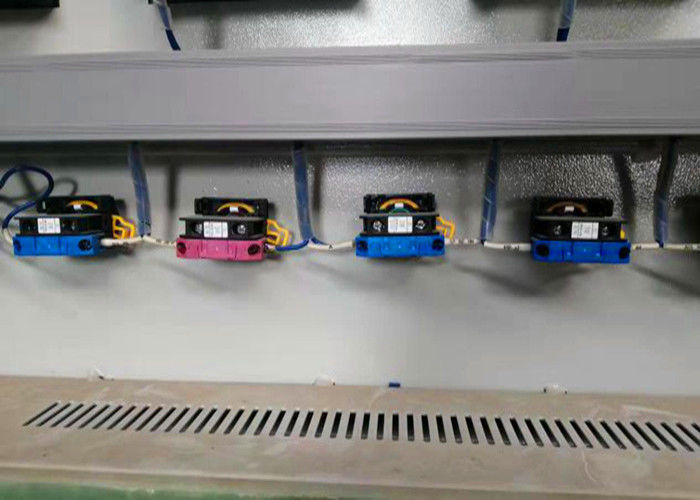

Medium Frequency Power Source Use For Hot Pipe Bending Machinet
Brife Introduction of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
KGPS Series Thyristor transducer is a quiescent device to change Three phase alternating current energy into Single phase Intermediate Frequency electric energy. This kind of device is apply to induction diathermy,melting,quenching.
Production Description of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
The product is suitable for casting industry, mainly used for smelting cast iron, carbon steel, high manganese steel, gray iron, ordinary scrap iron, alloy steel, non-ferrous metal (such as: copper, aluminum, silicon, etc.) and metals.The furnace body used is GW0.15t-0.20t.Best (note: aluminum housing, stainless steel housing, magnetic yoke steel housing).The selected customer factory must choose power transformer capacity range: 250KVA-315KVA. The failure rate is small, the maintenance is simple, the price is low and the durability is long.And get the plant going again.The power factor of this product reaches above 0.85 when running at full load.Please consult our sales staff before you choose this product.Only after knowing your usage and the actual situation of your factory can we select the best products for you.
Production Description / Brief Introduction of Medium Frequency Power Source Use For Hot Pipe Bending Machine:
1) Turn on and turn off easily,and power failure.
2) Adopt constant power to control the circuit, maintain constant power while malting, and keep faster melting rate.
3) Set up over voltage, over current and water deficient protector, and run safely.
4) The motherboard adopts CAD technology, integrated circuit board, low-fault-rate, easy-manipulating,effortless maintenance.
5) Zero voltage starts up softly, high initial over, no impact for the electric network.
6) Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, brass, steel,iron,stainless steel etc...
Production Description of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
Medium frequency kgps heating power supply for induction furnace
melting time: 0.5t/one hour
Configuration of KGPS-400KW induction furnace
1. power cabinet 400kw ,
2. aluminum shell furnace
3. capacitor
4. tilting reducer
5. tilting control box
6. water cable
Auxiliary device: (optional)
cooling tower
transformer
Production Description of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
KGPS Intermediate Frequency Power Supply for induction heater
1. Full NC Structure: It features in high control precision and high reliability
2. Voltage & Current Dual-close-loop control system. It can assure the system operated stably and reliably
3. Perfect Protection System: It features in all kind of protection system, such as over voltage, over current,phase loss, water under-pressure, water over-temperature and etc, which can assure elements and components not being damaged in case of errors.
4. Running Characteristics in High Power Factor: It can maximize efficiency and power factor of the set of the equipment.
5. Perfect External Control Interface: Closed control can be fulfilled conveniently for external temperature and etc.
6. Power Supply Starting Performance being 100% (in reliability)
The Specification of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
| Power | Input Power | Output Power | Cool Water | Cooling | Out-Dimension | Weight |
| Model | (V) | (KW) | (T/h) | Water Pressure | (mm)(L×W×H) | (KG) |
| (Mpa) | ||||||
| KGPS60 | 380 | 60 | 2.5 | 0.25 | A750×800×1980 | 400 |
| KGPS100 | 380 | 100 | 3 | 0.25 | A750×800×1980 | 480 |
| KGPS160 | 380 | 160 | 5 | 0.3 | B750×800×1980 | 600 |
| KGPS250 | 380 | 250 | 5 | 0.3 | B-1400×800×1980 | 700 |
| KGPS400 | 380 | 400 | 6 | 0.4 | C-1800×800×1980 | 850 |
| KGPS500 | 380 | 500 | 6 | 0.4 | C-1800×800×1980 | 1000 |
| KGPS750 | 380 | 750 | 8 | 0.4 | C-1800×800×1980 | 1250 |
| KGPS1000 | 380 | 1000 | 10 | 0.4 | D-2200×800×2100 | 1250 |
| KGPS1500 | 380 | 1500 | 12 | 0.4 | E-3600×800×2100 | 1750 |
| KGPS2000 | 380 | 2000 | 18 | 0.4 | E-3600×800×2100 | 2000 |
| KGPS2500 | 380 | 2500 | 20 | 0.4 | E-3600×800×2100 | 2500 |
| KGPS3200 | 380 | 3200 | 35 | 0.4 | E-3600×800×2100 | 2800 |
| KGPS6500 | 380 | 6500 | 50 | 0.4 | F-5200×800×2100 | 3500 |
| Other customized specifications are welcomed. | ||||||
The Specification of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
|
KGPS- 100/ 1-8 |
KGPS- 160/ 1-8 |
KGPS- 250/ 1-8 |
KGPS- 350/ 1-8 |
KGPS- 500/ 1-8 |
KGPS- 750/ 1-8 |
KGPS- 1000/ 1-8 |
KGPS- 1500/ 1-8 |
KGPS- 2000/ 1-8 |
KGPS- 3000/ 1-8 |
|
| Rated output power | 100 | 160 | 250 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 |
| IF Frequency (Khz) | 1-8 | 1-8 | 1-8 | 1-8 | 0.4-4 | 0.4-1 | 0.4-1 | 0.4-1 | 0.4-1 | 0.4-1 |
| Rated input voltage (v) | Thress phase 380V 50Hz | Thress phase 660V | ||||||||
| Rated input current (A) | 180 | 280 | 440 | 610 | 880 | 1310 | 1016 | 1524 | 2032 | 3048 |
| Rated direct voltage (V) | 500 | 870 | ||||||||
|
Rated direct Current (A) |
220 | 343 | 539 | 747 | 1078 | 1600 | 1245 | 1867 | 2490 | 3735 |
| Rated output voltage(v) | 700 | 1200 | ||||||||
| Main D.C.current(A) | 250 | 380 | 550 | 800 | 1100 | 1700 | 1400 | 2000 | 2650 | 3900 |
The Specification of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
| Model | Input power KW | Input voltage V | Input current A | DC voltage V | Direct current A | Resonance frequency HZ |
| KGPS-175-1-A | 175KW | 380V | 280A | 500 | 350A | 1000 |
| KGPS-200-1-A | 200kw | 380V | 320A | 500 | 400A | 1000 |
| KGPS-250-1-A | 250KW | 380V | 400A | 500 | 500A | 1000 |
| KGPS-300-1-A | 300kw | 380V | 480A | 500 | 600A | 1000 |
| KGPS-350-1-A | 350KW | 380V | 560A | 500 | 700A | 1000 |
| KGPS-400-1-A | 400KW | 380V | 640A | 500 | 800A | 800 |
| KGPS-500-1-A | 500KW | 380V | 800A | 500 | 1000A | 800 |
| KGPS-600-1-A | 600kw | 380v-575v | 960A | 500-800 | 1200A-850A | 780 |
| KGPS-750-0.5-A | 750KW | 380-575V | 1200A | 500-800 | 1600-1400A | 650 |
| KGPS-1000-0.5-A | 1000KW | 380-575V | 1250A | 500-800 | 2000-1500A | 580 |
The Specification of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
| Model | Power Input | Power Output | Usage | ||
| Inlet line Voltage (V) | Inlet Currency | Frequency | Power Rate | ||
| 3 phases or 6 phases | (A) | (KW) | |||
| 50Hz | |||||
| KGPS-100 | 380 | 160 | 1--8 | 100 | Surface hardening, heating, melting. |
| KGPS-120 | 380 | 200 | 1--8 | 120 | Surface hardening, heating, melting. |
| KGPS-160 | 380 | 260 | 1--8 | 160 | Surface hardening, heating, melting |
| KGPS-200 | 380 | 320 | 1--8 | 200 | Surface hardening, heating, melting |
| KGPS-250 | 380 | 400 | 1--8 | 250 | Surface hardening, heating, melting |
| KGPS-300 | 380 | 480 | 1--8 | 300 | Surface hardening, heating, melting |
| KGPS-400 | 380 | 640 | 1--4 | 400 | Surface hardening, heating, melting |
| KGPS-500 | 380 | 800 | 0.5--2.5 | 500 | Surface hardening, heating, melting |
| KGPS-750 | 380 | 1200 | 0.5--2.5 | 750 | Surface hardening, heating, melting |
| KGPS-800 | 380/660 | 1300/730 | 0.5--1 | 800 | heating, melting |
| KGPS-1000 | 660 | 920 | 0.5--1 | 1000 | heating, melting |
| KGPS-1200 | 660 | 1100 | 0.5--1 | 1200 | heating, melting |
| KGPS-1500 | 660/750 | 1400/600 | 0.5--1 | 1500 | heating, melting |
| KGPS-2000 | 660/750 | 1800/800 | 0.2--0.5 | 2000 | heating, melting |
| KGPS-2500 | 660/750 | 2300/1000 | 0.2--0.3 | 2500 | heating, melting |
| KGPS-3000 | 660/750 | 2700/1200 | 0.2--0.3 | 3000 | heating, melting |
| KGPS-4000 | 750/950 | 1600/1280 | 0.2--0.3 | 4000 | melting |
| KGPS-5000 | 750/950 | 2000/1600 | 0.15--0.2 | 5000 | melting |
| KGPS-8000 | 950 | 2500 | 0.15--0.2 | 8000 | melting |
| KGPS-10000 | 950 | 3000 | 0.15--0.2 | 10000 | melting |
APPLICATIONS of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
A. Heating (hot forging, hot fitting and smelting):
B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material and different
D. Annealing (tempering and modulation)
Electric Board
The main control circuit board is the core component of the machine.high quality. We have many stocks.
Main control circuit board as the main part of the machine, we made in their research and development, and adopted by the company and built since the automatic welding and testing equipment to ensure that each set of machine can achieve the best effect, and we have main control board in stock lone time, can satisfy the parts supply problems.
Induction coils
The induction coil inside the furnace body is treated with two insulations. The first spray of high temperature insulation paint. The second round of glass fiber tape. The service life of the treated furnace lining and induction coil will increase by more than two times.
Features of the Medium Frequency Power Source Use For Hot Pipe Bending Machine:
1. Comprehensive protection function
Control system protection measures include:
High grid voltage, low grid voltage, high DC voltage, high thyristor current, high capacitor voltage, high furnace voltage, high operating frequency, high cooling water temperature, low cooling water pressure, low cooling water flow, and electric furnace leakage
2. the control system :Digital inverter control
IF power adopts advanced all-digital control system based on high-performance microcontrollers.
The digital inverter controller is integrated inside the CPU. Using power, voltage, current three closed-loop control algorithm. During normal operation, the voltage, current and power are sent to the CPU through their respective converters. The control software detects these parameters and adjusts the operating frequency to ensure that the output power is always equal to the rated power.
When the empty furnace power transmission (too much impedance) or the frozen furnace power transmission (impedance is too small), control software can automatically call the limiting voltage or current limiting algorithm, limiting the output voltage or current does not exceed the allowable.
The control software has a variety of parameter limiting functions, including: maximum power limit, thyristor current output limit, furnace voltage limit, capacitor voltage limit, maximum and minimum operating frequency limits
The parameters of the control algorithm can be set by the keyboard and they are stored in the EEPROM of the control board. The parameters are easily changed so that half-bridge series inverters are suitable for melting different metals, such as cast iron, copper, aluminum, etc.
The thyristor is a controlled shutdown device. The start-up of the inverter is completely controlled by the trigger pulse, so the inverter can start 100% under any conditions.
Features of the Medium Frequency Power Source Use For Hot Pipe Bending Machine:
• The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.
• The thick T2 standard tube is taken use for induction coil to provides high melting efficienccopper y.
• Open type furnace hearth reduces moisture,and design cooling rings on the bottom, which extend the furnace lining life time.
• The titling is controlled by reducer gear box. The remote control panel can set the furnace in any position when titling. The max tilting angle is 95 degrees.
Features of the Medium Frequency Power Source Use For Hot Pipe Bending Machine:
• Easy operation:
A full time operator specially for power supply is not needed .There is only one switch for turning on or off and one power adjustment knob. After started, the only thing that needs to be done is rotating the power adjustment knob to the largest location, others are controlled by the device itself.
• Safety protection functions of induction melting furnace:
1. The main circuit and short circuit protection
2. SCR overvoltage protection
3. Main circuit phase fault protection
4. The main circuit phase loss protection
5. Low water pressure protection
6. SCR overcurrent protection
Features of the Medium Frequency Power Source Use For Hot Pipe Bending Machine:
• The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.
• The thick T2 standard tube is taken use for induction coil to provides high melting efficienccopper y.
• Open type furnace hearth reduces moisture,and design cooling rings on the bottom, which extend the furnace lining life time.
• The titling is controlled by reducer gear box. The remote control panel can set the furnace in any position when titling. The max tilting angle is 95 degrees.
Techinical Feature of our Medium Frequency Power Source Use For Hot Pipe Bending Machine:
1. Atuotmatically digital control system
2. Less power consumption, because o enough copper connections
3. 100% start rate, it can be start sucessfully from low temperature
4. Easy to debugging and conveninent to maintanance. You just need to control buttons
Advantages of Our Heiyan Medium Frequency Power Source Use For Hot Pipe Bending Machine:
KGPS Medium Frequency Furnace Power Supply
1) Wide frequency scope
2) Constant capacity control
3) Protections of overcurrency, overvoltage, undercurrency, undervoltage, lack of water, default phase
4) Frequency-sweep zero voltage start
