Q1245 Table Type Pipe Bevel Machine , Electric Pipe Beveler Cutter Diameter 450mm

I'm Online Chat Now

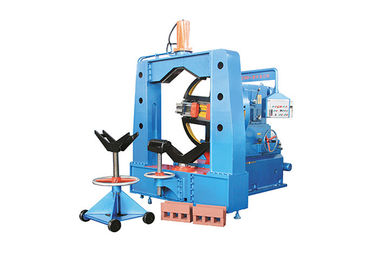

Q1245 Table Type Pipe Bevel Machine , Electric Pipe Beveler Cutter Diameter 450mm

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Q1245 Table Type Pipe Bevel Machine , Electric Pipe Beveler Cutter Diameter 450mm

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: ISO9001
Model Number: Q1245

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Q1245 Electric Beveller Good Quality Table Type Pipe Bevelling Machine on pallet or wooden case ,as your required
Delivery Time: 15-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Motor Power: 7.5KW,n=960rpm Knife Bracket Difference Forward Speed: 0,0.1,0.25 Mm/r
Processing Range Od Of Pipe: Φ159mm--Φ800mm Bevel Type: Single V, Double V, U, Etc.
Brand Name: HEIYAN Angle Adjust Of Cutter Supporter: 0-35°
High Light:

elbow beveling machine

,

pipe bevel machine

Q1245 Electric Beveller Good Quality Table Type Pipe Bevelling Machine





1, Motor power:N=5.5KW , n=960rpm
2, Cutterhead speed:n=54-206rpm 6positions
3, Processing range:Pipe diameter 30-426mm Pipe wall thickness 6-100mm
4, Angle kinfe frame regulation range:Between 0-35o
5, Differential speed automatic feeding spdde:0,0.17mm/r
6, Axial movement speed manual:18.8mm/r Axial movement of stroke:250mm
7, Styles can be machined groove:Single V, double V, U and other forms
8, Cutter diameter:450mm
9, Machine Center High:H=1000mm



1) The company's pipe end beveling machine is currently the most advanced end beveling machine in China, with both radial and axial feeding functions, is a combination of radial end beveling machine and axial end beveling machine;

2) The tool used is standard tool, which can meet the requirements of v-shaped, double-v-shaped, u-shaped and i-shaped groove processing, no need to customize molding tool, convenient and quick. In the market, when using other machine to bevel double V, U groove, need to replace another homemade molding tool that will increase production labor, high cost, and low efficiency, and poor operability.

3) For pipes with ordinary wall thickness, axial feed function is adopted to complete high-speed groove; for pipes with thick wall thickness or compound groove of double V type and U type, radial feed function is adopted to complete compound groove processing without changing blades.

4) General Performace:
Meet the "quality and efficiency" principle.
With high precision, high stiffness, high efficiency, high degree of automation, high reliability.
After a long period of continuous use of precision maintenance ability to adapt to the environment, can quickly form the production capacity.
The groove has the function of radial and axial feed, and the technology is advanced.
Greatly improve the efficiency and precision of pipe groove processing.
The equipment has independent intellectual property rights.



Parameter/model YQ-89 YQ-168 YQ-325 YQ-630 YQ-820 YQ-1020 YQ-1800
Turning diameter(mm) 21-89 89-168 168-325 325-630 630-820 820-1020 1020-1800
Revolution of cutter head(rpm) 600 350 200 150 100 80 40
Feeding turn volume(mm/r) 0.25 0.25 0.25 0.25 0.25 0.25 0.25
