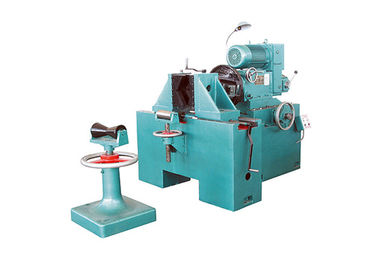

Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed

I'm Online Chat Now

Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed

Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed
Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed

Large Image :  Q12130-III High Efficiency Pipe Beveling Machine 175mm/min Electric Rapid Retracting Speed

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: ISO9001
Model Number: Q12130

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Q12130 Beveller Piping Line And Fittings Any Parts Beveling Machine on pallet or wooden case ,as your required
Delivery Time: 15-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Knife Wheel Diameter: 1000mm Effective Movement: 285mm
Electric Rapid Retracting Speed: 175mm/min, Manual Adjustment 0.18mm/r Motor Power: 7.5KW,n=960rpm
Bevel Type: Single V, Double V, U, Etc. Knife Bracket Difference Forward Speed: 0,0.1,0.25 Mm/r
High Light:

elbow beveling machine

,

pipe bevel machine

Q12130-III Electric Beveller High Efficiency Electric Pipe Elbow End Beveling Machine





Bevel shape: U, x, v and double v
Cutting direction: Radial automatic differential cutting feed or axial semi-automatic motor cutting feed(inlet frequency); Radial nc motor cutting feed or axial nc motor cutting feed
Retracting direction: Radial automatic motor retracting or axial automatic motor retracting(inlet frequency); Radial nc motor retracting or axial nc motor retracting



Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling
Automatic aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the elbow, so as to bevel the elbows with different diameter
Conveying system: End beveling vf conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.

The processing principle is using the left& right clamping mechanism to fix the pipe from left side to right side. With automatic radial differential feed or axial feed. Automatic radial differential feed using milling power head drives the cutter spindle rotation and drive differential mechanism to realize the radial turret automatic processing. The axial feed using dynamic head or spindle axial movement, driven by the axial feed rotating cutter machining, tool radial position does not move when processing; after processing the tool can automatically retract.



Pipe Dia applicable: DN50-400 (φ60-426mm) DN100-600(φ114-610 ) DN200-800 (φ219-813 mm)
Pipe wall thickness applicable: 4-90mm 6-180mm 6-180mm
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40) ≤ 5min /pipe bevel (dn200 sch40) ≤ 5min /pipe bevel (dn200 sch40)
Bevel angle of tool rest: 0° ~45° 0° ~45° 0° ~45°



Fixed-Type High Speed Numerical Control Eblow Beveling Machine
CNC Elbow BEVELING MACHINE(PLC)

Performance features
On-line performance: Good(designed as per the on-line equipment of the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of pipe-fittings with heavy wall thickness

Technical parameters
Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, ect.



Parameter/model YQ-89 YQ-168 YQ-325 YQ-630 YQ-820 YQ-1020 YQ-1800
Turning diameter(mm) 21-89 89-168 168-325 325-630 630-820 820-1020 1020-1800
Revolution of cutter head(rpm) 600 350 200 150 100 80 40
Feeding turn volume(mm/r) 0.25 0.25 0.25 0.25 0.25 0.25 0.25
