Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness

I'm Online Chat Now

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness
Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness

Large Image :  Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE
Model Number: HYW

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: By container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3 sets per month
Detailed Product Description
Material: CS And AS Elbow Size: 15-1020mm
Elbow Thickness: 2-70mm Elbow Radius: 1D 1.5D
Heating System: Induction Heating Heating Power: 80-1000KW
High Light:

elbow making machine

,

elbow hot forming machine

Pipe Elbow Machine Induction Hot Heating Machine Elbow Mandrel Machine





materials used by this Pipe Elbow Machine Induction Hot Heating Machine Elbow Mandrel Machine:

seamlsee steel pipe, welded steel pipe and rolled steel pipe.

The equipment can produce the elbows in varieties:

outer size: 25mm ~ 1420mm;

thickness: 5mm ~ 120mm; angle: 45 , 60 , 90 , 180 and the angle required by user.

Gost Standard Elbow Mandrel Forming Machine material:

carbon seamless steel,20 G, A106B, A106Welded pipe:235 B,345 B, X42, X52, X60, X70.

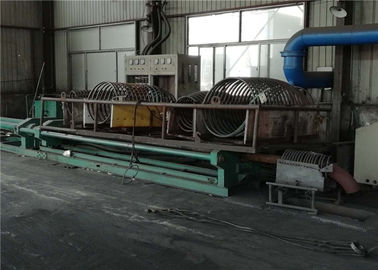

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness 0



Elbow size outer diameter Φ25mm(1″)~Φ1420mm(56″)
Wall thickness 5~120mm
Bent diameter ≤3
Bent degree 22.5°,45°,90°,135° etc.
Hydraulic cylinder 2/4sets



Machine composition

1. machine base/frame
2. Main cylinder and supporting plate
3. pushing plate
4. front supporting plate
5. loading table
6. induction coils and adjusting device
7. medium frequency power supply
8. electrical control system
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine



Hei Yan Group owns HYW Series of steel products line including Pipe Elbow Machine Induction Hot Heating Machine Elbow Mandrel Machine Hot Forming Machine Making Elbow,steel pipe expanding machine, steel pipe bending machine,hydraulic tee forming machine,bevelling machine. The HY Series machinery are designed for customer's point and needs.
Hydraulic Hot Forming Elbow Machine Hot Forming Machine Making Elbow is our traditional products with year's experience.The machine can process carbon steel, alloy steel etc and it can make OD114mm, OD159mm,OD219mm,OD426mm,OD630mm etc.


 Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness 1

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness 2

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness 3

Hot Heating Elbow Making Equipment , Induction Elbow Machine 5 - 120mm Wall Thickness 4
