| Material: | CS | Elbow Size: | 15-914mm |
|---|---|---|---|
| Elbow Thickness: | 2-80mm | Elbow Radius: | 1D 1.5D 3D |
| Heating System: | Induction Heating | Heating Power: | 80-1000KW |
| High Light: | elbow making machine,elbow hot forming machine |
||

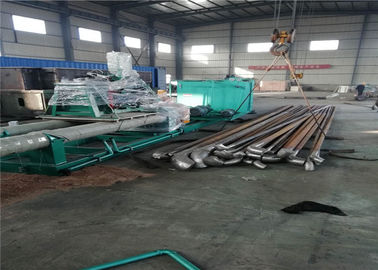

90 Degree Stainless Steel Elbow Hot Induction Making Machine
Specifications of 90 Degree Stainless Steel Elbow Hot Induction Making Machine 1. Production range: OD 21-1420mm 2. Radius: 1D, 1.5D, 2D 3. Thickness: 3mm-100mm 4. Material: carbon steel 5. Drive type: Hydraulic, Chain Design: Hydraulic pushing Hydraulic clamp cylinder Automatic lifting material Medium Frequency heating system All controllings are in one operation case.
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
90 Degree Stainless Steel Elbow Hot Induction Making Machine is designed and constructed for manufacturing the small radius (1D/1.5D) carbon steel elbows,alloy steel elbows. Medium Frequency Steel Elbow Machine has various designed ways, can be produce 2 piece of elbows in a time or support producing of elbow as well as 180 degree bend. And also sizes below 219mm, the machine can automatic working with our PLC control system. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power and food, etc
Machine composition
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
| 9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine |
Elbow Hot Mandrel Induction Heating Erw Welded Elbow Forming Machine is composed by: Hydraulic main pushing machine, hydraulic pump, operate panel, control panel of generators, medium frequency, compensating capacitor, water cable, induction coils adjust frame, reactor.
The following parts shall be ready by customer:
a. cooling system (tank, water pump, water shed, water pipeline low and above)
b. connection cables
c. hydraulic oil : L-HM anti- wear hydraulic oil
d. heating coils, mandrils according to production scope
e. related machine: press machine, cutting machine for ends of pipe, elbow testing machine .
We also supply:
Tee cold forming machine, hot mandrel elbow machine, induction tube bending machine, elbow chamfer machine, tee beveling machine, reducer beveling machine, pipe&tube processing machine, pipe end facing machine, die mould and mandrills, pipe fittings.
