Product Details
Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE
Model Number: HYW
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: By container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3 sets per month
Material: |
CS |
Elbow Size: |
15-1220mm |
Elbow Thickness: |
2-70mm |
Elbow Radius: |
1D 1.5D |
Heating System: |
Induction Heating |
Heating Power: |
80-1000KW |
Material: |
CS |
Elbow Size: |
15-1220mm |
Elbow Thickness: |
2-70mm |
Elbow Radius: |
1D 1.5D |
Heating System: |
Induction Heating |
Heating Power: |
80-1000KW |

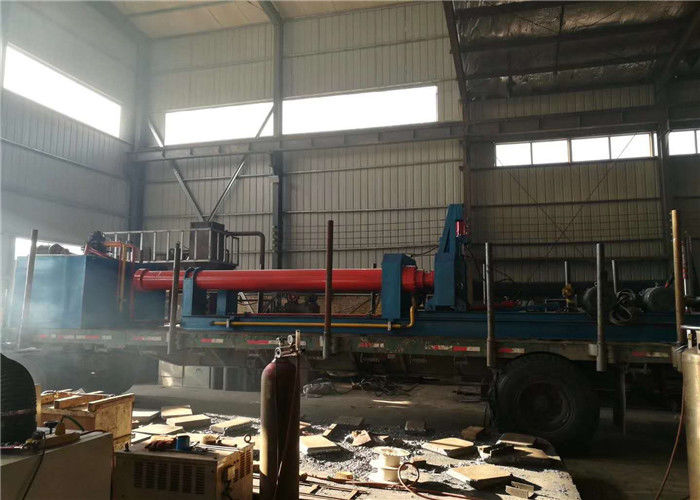

Elbow Hot Mandrel Induction Heating Erw Welded Elbow Forming Machine
The Elbow Hot Mandrel Induction Heating Erw Welded Elbow Forming Machine are designed for customer's point and needs.Hydraulic Hot Forming Elbow Machine Hot Forming Machine Making Elbow has novel structure, safe using, reasonable price.Welcome to contact us
Characteristics: High speed and no damage for internal structure of steel
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
Machine composition
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
| 9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine |
Elbow Hot Mandrel Induction Heating Erw Welded Elbow Forming Machine is composed by: Hydraulic main pushing machine, hydraulic pump, operate panel, control panel of generators, medium frequency, compensating capacitor, water cable, induction coils adjust frame, reactor.
The following parts shall be ready by customer:
a. cooling system (tank, water pump, water shed, water pipeline low and above)
b. connection cables
c. hydraulic oil : L-HM anti- wear hydraulic oil
d. heating coils, mandrils according to production scope
e. related machine: press machine, cutting machine for ends of pipe, elbow testing machine .
We also supply:
Tee cold forming machine, hot mandrel elbow machine, induction tube bending machine, elbow chamfer machine, tee beveling machine, reducer beveling machine, pipe&tube processing machine, pipe end facing machine, die mould and mandrills, pipe fittings.
