Product Details
Place of Origin: CHINA
Brand Name: HEIYAN
Certification: ISO9001
Model Number: Q1245
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Butt Welding Elbow Tee Cross Bender Pipe Fittings Beveling Machine on pallet or wooden case ,as your required
Delivery Time: 15-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 sets per month
Angle Adjust Of Cutter Supporter: |
0-35° |
Frequency Control Axial Movement Speed: |
50~400mm/r |
The Machine Center Height: |
1140mm |
Processing Range Od Of Pipe: |
Φ159mm--Φ800mm |
Processing Range Bevel Thickness: |
10~150mm |
Motor Power: |
7.5KW,n=960rpm |
Angle Adjust Of Cutter Supporter: |
0-35° |
Frequency Control Axial Movement Speed: |
50~400mm/r |
The Machine Center Height: |
1140mm |
Processing Range Od Of Pipe: |
Φ159mm--Φ800mm |
Processing Range Bevel Thickness: |
10~150mm |
Motor Power: |
7.5KW,n=960rpm |
U Bevel Type From Electric Full Automatic Pipeline Bevel Machine
Fixed-Type High Speed Numerical Control Eblow Beveling Machine

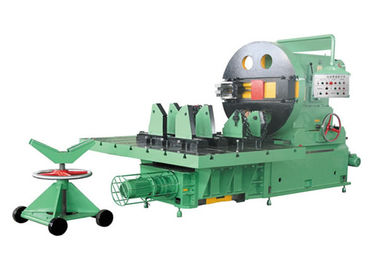

CNC Elbow BEVELING MACHINE(PLC)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm
Conveying system: End beveling vf conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.
1. Elbow beveling machine has the features of unique design, compact structure, beautiful look and convenience to operate.
It is an ideal equipment for chamfering metal right-angel elbow end.
The products processed by the machine are comply with relevant elbow beveling standard.
2. This machine drives strongly, cuts quickly and works efficiently.
It contains novel- structured floating cutter support, well and truly oriented workpiece clamp and qualified excellent hydraulic feed lock device to ensure normal and quick forward/ backward movement of the workpiece on the slipway,
It could beveling at both ends to confirm the correct 90 and 180 degree.
| Pipe Dia applicable: | DN50-400 (φ60-426mm) | DN100-600(φ114-610 ) | DN200-800 (φ219-813 mm) |
| Pipe wall thickness applicable: | 4-90mm | 6-180mm | 6-180mm |
| Beveling speed: | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) |
| Bevel angle of tool rest: | 0° ~45° | 0° ~45° | 0° ~45° |
|
