LPG Car Parts Cylinder Shot Blasting Machine Easy To Repair And Maintenance

I'm Online Chat Now

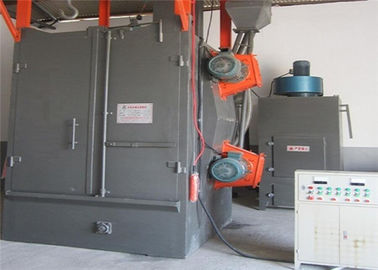

LPG Car Parts Cylinder Shot Blasting Machine Easy To Repair And Maintenance

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  LPG Car Parts Cylinder Shot Blasting Machine Easy To Repair And Maintenance

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: ISO9001
Model Number: Q378

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Hanger Type Blaster Lpg Car Parts Cylinder Shot Blasting Machine as your required
Delivery Time: 25-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50Sets per month
Detailed Product Description
Cleaning Standard: GB8923-88 A-B Sa2 1/2 Standard Clean Workpiece Type: Max(L×W×H) 1500mm×1500mm×1200mm
Brand Name: HEIYAN SHOT/PILL: Ф0.3~2.5
Certification: CE, ISO, ISO9001 Cleaning Process: 0.3t
Elevator: Lifting Capacity:25t/h Power:2.2kw Segregator: Separating Capacity:30t Separating Are Wind Speed:4~5m/s Qualified Pill/shot Content In Waste:≤1%
High Light:

shot blasting chamber

,

industrial shot blaster

Ce /Iso Full Automatic Carbon Steel Fittings Shot Blasting Machine





1. Shot blasting chamber body is made of 6mm manganese steel precision welding; the body with double wear-resistant manganese steel shield fastened by high wear-resistant nuts; Easy to repair and maintenance, greatly improving the maintenance. Machine body ensure 20 years use life.

2. Y type double rail input and output convey system, manual control loading and unloading, input and output convey(This way is safe)

3. The shot blasting chamber adopts compact and closed design, to ensure no steel shots splash.

4. Adopting Mayflay precision casting high performance shot blaster which is equipped with semi-automatic flow control valve to adjust the shot flow.

5. The recovery steel shot adopts spiral pusher + elevator+ air separator, the bottom is equipped with photo electricity induction system to monitor and alarm the pellet recovery system which is stable and reliable.

6. Dust collecting system uses dry dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 50 mg/m3.

7. Electrical system adopts Siemens system, and human-machine interface use 7 inches color touch control panel, 3D animation guidance prompt, powerful function.





How To Operate The Double Hooks Shot Blasting Machine ?

Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Operation:

Shot Blast Machine ideal to treat parts of all sizes and/or particularly fragile parts.
The available units are provided with hooks or hoists for heavier parts.
By installing magnetic drums and with appropriate devices it is also possible to carry out desanding operations.

Hook enter the Blasting Room interval in the set position for the back and forth movement and rotation of the workpiece are fully ejections, reduce ejections dead ends. Two hooks, a hook shot blasting indoor ejections, another hook handling the workpiece. The blasting treatment time can be adjusted. Shot blasting machine stops running after shot blasting chamber door open to bring in and take out the workpiece. The dust generated by blasting treatment two dust collector filter emissions.



Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Features:

Shot Blasting Machine And Shot Peening Machine Abratorsand Blasting Machines

1.After the blasting program begins, the machine door is automatically closed and electro-pneumatically locked. As the work pieces rotate, they are blasted at three different blasting stations according to the pre-set blasting times.

2.The blasting abrasive is continuously cleaned, recirculated and reused. An abrasive metering device feeds the cleaned abrasive from the abrasive storage bunker to the high-performance turbines.

3.Upon completion of the blasting cycle and after the turbines have come to a complete stop, the machine door opens automatically and the suspended work pieces return to their initial position.



China Supplier Bulk Casting Special Hook Type Shot Blasting Detailed product description:

Need shot blasting process workpiece directly hanging on a hook or hanger, artificial brought to the front Blasting Room traction system the hook automatically enters Blasting Room. Hook into the Blasting Room, shot blasting chamber goalkeeper pneumatic Close electrical interlock to prevent the workpiece in the blast chamber Shot Blasting the others mistakenly opened Blasting Room door.



Model Size of cleaning piece Max. Lifting height Total blasting capacity Total power
HSK-7/7Y

700*1100MM

800*1100MM

0.5T 180KG*2

7.5KW*2
23KW
Q377/7S
HSK-9/9Y

900*1600MM

1000*1500MM

1.0T 240KG*2

11.0KW*2
36KW
Q379/9S
HSK-10/10Y

1200*1500MM

900*1850MM

1.0T 240KG*2

11.0KW*2
39KW
KTHG-10F
KSB20/30/50/80 Designed and manufactured according to the workpiece size 2.0T-20.0T According to the design specifications Shot reasonable amount of artifacts Shot size according to the amount of power and ancillary components
KTHG-20/30/50



LPG Car Parts Cylinder Shot Blasting Machine Easy To Repair And Maintenance 0
