Green And Orange Color Hydraulic Metal Press Machine High Efficiency Elbow Calibration

Product Details

Place of Origin: China

Brand Name: Hei Yan

Certification: ISO CE

Model Number: HYY

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Wooden case and plastic film

Delivery Time: 30-60 working days

Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram

Supply Ability: 6Sets per month

Get Best Price
Product Details
High Light:

industrial hydraulic press

,

hydraulic metal press

Product Name:
Hydraulic Metal Pressing Machine Wholesale From China
Press Force:
80-1000T
Usage:
Elbow Calibration
Input Voltage:
380V
Control Way:
By Button
Color:
Customized
Product Name:
Hydraulic Metal Pressing Machine Wholesale From China
Press Force:
80-1000T
Usage:
Elbow Calibration
Input Voltage:
380V
Control Way:
By Button
Color:
Customized
Product Description

Hydraulic Metal Pressing Machine Wholesale From China





The Hydraulic Metal Pressing Machine Wholesale From China used for lifting or compressing large items. The force is generated through the use of hydraulics to increase the power of a standard mechanical level. This type of machine is typically found in a manufacturing environment.
Main machine including machine body,main cylinder,ejection cylinder and topping up device.Actual unit is combined by oil case,high pressure pump,low pressure control system,generators and various hydraulic valves,direction valves.Electric device according to hydraulic system progress,choose ruled working style,according to instruct,finish craft cycle actions.Actual unit is under control of electric device,via pump and cylinders and various hydraulic valves,realize energy transfer and finish every craft cycle working.



Specification
Item Unit HYY-63 HYY-100 HYY-200 HYY-315 HYY-315A HYY-500 HYY-500A HYY-630 HYY-800 HYY-1000 HYY-1600 HYY-2000 HYY-2500
Nominal Pressure KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 16000 20000 25000
Ejecting Force KN 180 190 300 400 400 1000 1000 1000 1000 1000 2000 2500 -
Back Stroke Force KN 190 320 470 600 600 1000 1000 1000 1100 1300 1000 2600 1000
Stroke Length mm 400 600 710 800 800 900 900 900 900 900 1000 1000 1200
Ejecting Stroke mm 150 200 200 250 250 350 350 350 350 350 400 300 -
Opening Height mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 2500 2500
Speed of Slide Idle Stroke mm/S 76 80 120 100 100 100 140 80 120 120 150 150 150
  Work mm/S 15 10 10-15 6-12 6-12 4-10 4-10 4-10 5-12 4-12 5-12 4-10 5-12
  Back Stroke mm/S 70 50 80 65 65 80 80 70 90 90 150 150 120
Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 65 80 50 40 -
  Back mm/S 160 160 135 135 135 160 160 220 200 170 80 120 -
Bolster Surface L.R. mm 520 690 1000 1260 2000 1400 2200 1600 1500 1500 2500 2000 2800
  F.B. mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1800 2000 2400
Overall Dimension L.R. mm           4060 5000 5145 5100 4900 8300 8000 3650
  F.B. mm           3525 3525 4600 4200 3400 3000 3000 5900
  Above Ground mm 2592 3090 3950 4390 4680 5700 5700 6000 7100 7500 5925 7660 7530
Power of Motor KW 7.5 7.5 22 22 22 44 46 60 74 68 91..6 183 156
Weight Kg 3000 3500 10500 15500 28000 29000 42000 42000 51000 54000 142000 148000



Applications of Hydraulic Metal Pressing Machine Wholesale From China:
hydraulic press machine is Used for pressing technology of plasticity material. Such as flanging, sheet tensile, bending etc, can also used for correct, pressing, could extrusion and pressure molding process of plastic products and the powder product.
4 column hydraulic press is suitable for the pressing, drawing, edging, bending, adjusting, cold installing, cold and hot forging and etc for metal and non-metal materials.

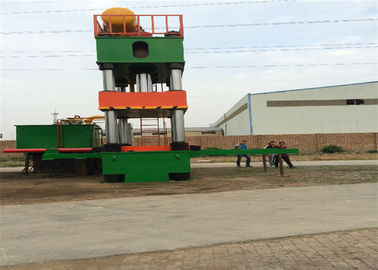

Green And Orange Color Hydraulic Metal Press Machine High Efficiency Elbow Calibration 0

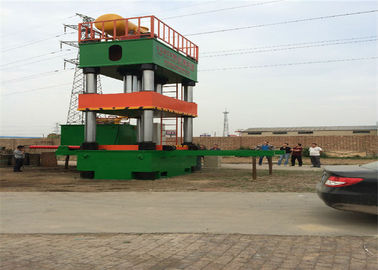

Green And Orange Color Hydraulic Metal Press Machine High Efficiency Elbow Calibration 1

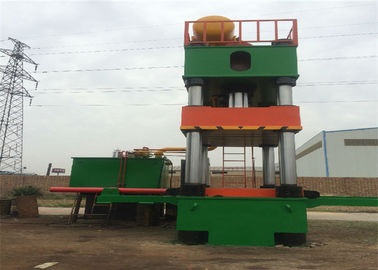

Green And Orange Color Hydraulic Metal Press Machine High Efficiency Elbow Calibration 2

Green And Orange Color Hydraulic Metal Press Machine High Efficiency Elbow Calibration 3
