Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming

I'm Online Chat Now

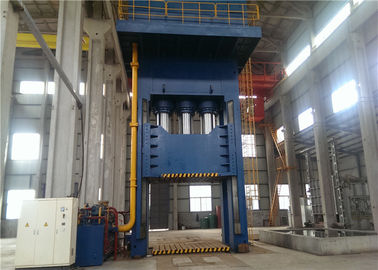

Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming

Product Details:

Place of Origin: China
Brand Name: Hei Yan
Certification: ISO CE
Model Number: HYY

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: By container with plastic film
Delivery Time: 60 working days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 3 Sets per month
Detailed Product Description
Product Name: Four Column Type Hydraulic Press Machine For Cap Cold Forming Press Force: 80-1000T
Usage: Elbow Calibration Type: Four Column Or H Frame
Input Voltage: 380V Control Way: By Button
Color: Customized
High Light:

hydraulic power press

,

industrial hydraulic press

Four Column Type Hydraulic Press Machine For Cap Cold Forming





Four Column Type Hydraulic Press Machine For Cap Cold Forming is a mechanical machine used for lifting or compressing large items. The force is generated through the use of hydraulics to increase the power of a standard mechanical level. This type of machine is typically found in a manufacturing environment.

Main machine including machine body,main cylinder,ejection cylinder and topping up device.Actual unit is combined by oil case,high pressure pump,low pressure control system,generators and various hydraulic valves,direction valves.Electric device according to hydraulic system progress,choose ruled working style,according to instruct,finish craft cycle actions.Actual unit is under control of electric device,via pump and cylinders and various hydraulic valves,realize energy transfer and finish every craft cycle working.



Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming 0



Specification
Item Unit HYY-63 HYY-100 HYY-200 HYY-315 HYY-315A HYY-500 HYY-500A HYY-630 HYY-800 HYY-1000 HYY-1600 HYY-2000 HYY-2500
Nominal Pressure KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 16000 20000 25000
Ejecting Force KN 180 190 300 400 400 1000 1000 1000 1000 1000 2000 2500 -
Back Stroke Force KN 190 320 470 600 600 1000 1000 1000 1100 1300 1000 2600 1000
Stroke Length mm 400 600 710 800 800 900 900 900 900 900 1000 1000 1200
Ejecting Stroke mm 150 200 200 250 250 350 350 350 350 350 400 300 -
Opening Height mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 2500 2500
Speed of Slide Idle Stroke mm/S 76 80 120 100 100 100 140 80 120 120 150 150 150
  Work mm/S 15 10 10-15 6-12 6-12 4-10 4-10 4-10 5-12 4-12 5-12 4-10 5-12
  Back Stroke mm/S 70 50 80 65 65 80 80 70 90 90 150 150 120
Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 65 80 50 40 -
  Back mm/S 160 160 135 135 135 160 160 220 200 170 80 120 -
Bolster Surface L.R. mm 520 690 1000 1260 2000 1400 2200 1600 1500 1500 2500 2000 2800
  F.B. mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1800 2000 2400
Overall Dimension L.R. mm           4060 5000 5145 5100 4900 8300 8000 3650
  F.B. mm           3525 3525 4600 4200 3400 3000 3000 5900
  Above Ground mm 2592 3090 3950 4390 4680 5700 5700 6000 7100 7500 5925 7660 7530
Power of Motor KW 7.5 7.5 22 22 22 44 46 60 74 68 91..6 183 156
Weight Kg 3000 3500 10500 15500 28000 29000 42000 42000 51000 54000 142000 148000



Four Column Type Hydraulic Press Machine For Cap Cold Forming Used for pressing technology of plasticity material. Such as flanging, sheet tensile, bending etc, can also used for correct, pressing, could extrusion and pressure molding process of plastic products and the powder product.

Frame Type Hydraulic Pressing Machine is suitable for the pressing, drawing, edging, bending, adjusting, cold installing, cold and hot forging and etc for metal and non-metal materials.



Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming 1

Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming 2

Four Column Type Hydraulic Press Machine 80 - 1000T For Cap Cold Forming 3
