Product Details
Place of Origin: China
Brand Name: Hei Yan
Certification: CE ISO
Model Number: HYG
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 4 Sets per month
Bending Size: |
114-1420mm |
Bending Thickness: |
3-100mm |
Bending Radius: |
1.5-20D |
Bending Material: |
CS SS AS |
Heating System: |
IGBT |
Input Power: |
380V |
Applicable Shape: |
Round |
Bend Radius: |
Up To 10D |
Frequency: |
50Hz |
Core Components: |
Motor, Pump, Engine |
Bending Size: |
2-780 Inch |
Extra Services: |
Cut To Length |
Operation: |
Easy And Stable |
Warranty: |
1 Year |
Color: |
Customized |
Voltage: |
220V |
Year: |
2023 |
Material: |
Steel |
Weight: |
150kg |
Function: |
Bending |
Bending Size: |
114-1420mm |
Bending Thickness: |
3-100mm |
Bending Radius: |
1.5-20D |
Bending Material: |
CS SS AS |
Heating System: |
IGBT |
Input Power: |
380V |
Applicable Shape: |
Round |
Bend Radius: |
Up To 10D |
Frequency: |
50Hz |
Core Components: |
Motor, Pump, Engine |
Bending Size: |
2-780 Inch |
Extra Services: |
Cut To Length |
Operation: |
Easy And Stable |
Warranty: |
1 Year |
Color: |
Customized |
Voltage: |
220V |
Year: |
2023 |
Material: |
Steel |
Weight: |
150kg |
Function: |
Bending |

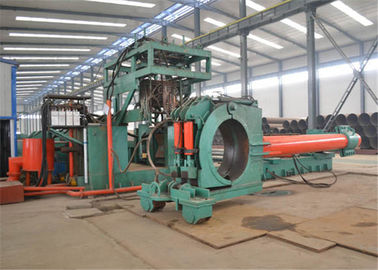

Fully Automatic Pipe Bending Machine Airport Roof Steel Bending Machine
| Max size | Model | Heating power | Cylinder capacity | Thickness |
| 6” | HYG-159 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 8” | HYG-219 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 12” | HYG-325 | 250KW | IDΦ180 ODΦ219 | 5-20 |
| 16” | HYG-426 | 350KW | IDΦ180 ODΦ219 | 5-20 |
| 20” | HYG-530 | 400KW | IDΦ180 ODΦ219 | 5-20 |
| 24” | HYG-630 | 500KW | IDΦ200 ODΦ245 | 5-20 |
| 28” | HYG-720 | 600KW | IDΦ200 ODΦ245 | 5-20 |
| 32” | HYG-813 | 800KW | IDΦ220 ODΦ273 | 5-20 |
| 36” | HYG-914 | 800KW | IDΦ250 ODΦ299 | 5-20 |
| 48” | HYG-1220 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 56” | HYG-1420 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 60” | HYG-1520 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 64” | HYG-1620 | 1000KW | IDΦ320 ODΦ377 | 5-20 |
The Fully Automatic Pipe Bending Machine Airport Roof Steel Bending Machine is suitable for oil, natural gas, chemical, electric power, construction and other industries.
The bending machine principle adopt induction heating and hydraulic cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Equipment structure,
Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.
Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.
We supply high quality Bends Making Pipe Plc Control Induction Bending Machinee, induction heating pipe bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service
The HYG series Bends Making Pipe Plc Control Induction Bending Machine is designed for manufacturing the long radius(2.5D-6D) bended pipes with diameter from 1/2" to 28". These produced bended pipes are widely used in the connection of the industrial pipelines for the Petrochemical, Gas and Oil pipes, Electrical Power, Food, etc.
Main features
1. It is constructed with srtong metal fram with good appearance and stable functioning
2. It has individual power construction and electrical system, adopts two kinds of heating methods, high frequency and intermediate frequency, the speed of pushing could be randomly adjusted, the speed of adding raw material pipes is fast and the machine is easy to operate.
Suitable environment for Beam Bends Making Induction Fully Automatic Pipe Bending Machine:
Temperature -5-45℃,reversely humidity≤80%, input voltage is three phase four line 380V( -10% — +15%),Frequency 50Hz±2%,working time 8-24 hours/day, No corrosive media, enough running space without wind and rain.
