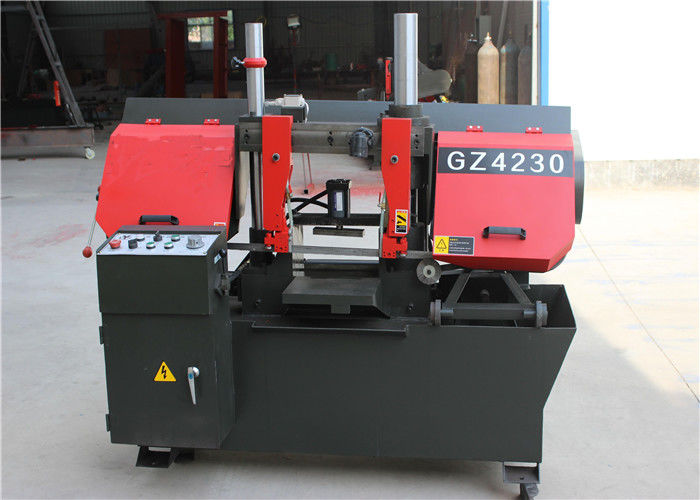

Wood cutting 60m/Min GZ4230 300mm Band Saw Machine

I'm Online Chat Now

Wood cutting 60m/Min GZ4230 300mm Band Saw Machine

Wood cutting 60m/Min GZ4230 300mm Band Saw Machine
Wood cutting 60m/Min GZ4230 300mm Band Saw Machine Wood cutting 60m/Min GZ4230 300mm Band Saw Machine Wood cutting 60m/Min GZ4230 300mm Band Saw Machine

Large Image :  Wood cutting 60m/Min GZ4230 300mm Band Saw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE/ISO
Model Number: GZ4230

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Cutting Horizontal Electric Control Band Saw Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Cut Capacity: Round 300MM Square 300*300MM Saw Belt Size: 3620*27*0.9MM
Selt Line Speed: 40/60/80(m/min) Main Generator Power: 3(kw)
Hydraulic Generator Power: 0.75(kw) Cooling Generator Power: 0.04(kw)
Working Clamp Style: Hydraulic Saw Belt Tighten Style: Hand
Main Trasmit Structure: Turbine Packing Dimensions: L*M*H 1750*2200*1450MM
Loading Style: Extra Roller Weights Of Machine: 700kgs
High Light:

300mm Band Saw Machine

,

GZ4230 Band Saw Machine

,

60m/Min Band Saw Machine

GZ4230 Cutting Capacity300mm Hydraulic Cut Pipe Fittings Band Saw Machine



GZ4230 horizontal CNC band sawing machine set the essence of similar products at home and abroad, reasonable structure, stable technical performance, convenient operation, it is mainly used for large iron and steel group, pipeline, water and electricity machinery, heavy forging, die steel and other large material cutting processing, has the curf narrow, material and energy saving, high cutting precision, high efficiency advantages.This machine adopts the stepless speed change of the line speed of the saw blade, which is especially suitable for the efficiency of sawing large materials and saving the use cost of the saw blade



Band sawing machine 1.Man-machine interface replaces traditional control panel mode, digital setting of sawing parameters,PLC programmable controller, flexible setting and changing of sawing mode.



Band sawing machine 2.After setting the parameters of the machine tool, it has the functions of automatic clamping, automatic feeding, automatic fast rising (i.e. cutting back) and automatic feeding through machinery, electrical and hydraulic, without manual operation.



Band sawing machine3, the cutting feed of the machine tool, in the given range, can be stepless speed regulation.



Band sawing machine4. Hydraulic feed is adopted for work feed, and raster ruler is adopted for feeding positioning. Positioning error.Poor & lt;The 0.02 mm



Band sawing machine5. Hard chrome plated cylinder is used for the rising and falling motion of the saw frame, with high precision.



Band sawing machine6. Stepless speed regulation of saw belt.

Type GZ 4230
Cut capcity W*H (mm) round 300
  square 300*300
Bundle cutting W*H (mm) Max.200*90
  Min.100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 40/60/80
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hand
Main trasmit structure Turbine
Loading style Extra roller
Packing dimensions(mm) L*M*H 1750*2200*1450
Weights of machine (kgs) 700kgs

Wood cutting 60m/Min GZ4230 300mm Band Saw Machine 0Wood cutting 60m/Min GZ4230 300mm Band Saw Machine 1

Band sawing machine1. CNC band sawing machine series is suitable for cutting materials of the same specification in large quantities, with fast cutting speed, high efficiency, stability, energy saving and material saving.It can be equipped with small material into a bundle clamping device.
Band sawing machine2. The equipment has manual, automatic and emergency stop functions, hydraulic feed work, stepless speed regulation, hydraulic clamping work, automatic stop, break the belt stop protection device.
Band sawing machine3. Man-machine interface replaces the traditional control panel function, digital setting, indicator light, etc. to display system status, operation instructions and parameter setting at any time;All Settings can be completed in the human-machine interface dialog box, all information displayed in Chinese, the operation is very simple.
Band sawing machine4. PLC programmable controller, set the whole process of sawing automatic program.
Band sawing machine5. Feeding length is controlled by servo motor. Feeding length error & LT;0.2 mm;Five sets of sawing parameters can be set at one time.
Band sawing machine6. The function of turning Angle can be added according to customers' requirements
