Product Details
Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE/ISO
Model Number: BS-1018B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden box package
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40 sets per month
Type: |
Band Saw Machine BS-1018B |
Main Motor Power: |
1.5（kw） |
Weight: |
385（kg） |
Dimensions: |
1830*830*1150（mm） |
Cutting Capacity: |
254（mm） |
Slit Width: |
0.9（mm） |
Control Type: |
Manpower |
Layout Form: |
Horizontal Type |
Mounting Type: |
Floor Model |
Service: |
One Year Warranty |
Type: |
Band Saw Machine BS-1018B |
Main Motor Power: |
1.5（kw） |
Weight: |
385（kg） |
Dimensions: |
1830*830*1150（mm） |
Cutting Capacity: |
254（mm） |
Slit Width: |
0.9（mm） |
Control Type: |
Manpower |
Layout Form: |
Horizontal Type |
Mounting Type: |
Floor Model |
Service: |
One Year Warranty |

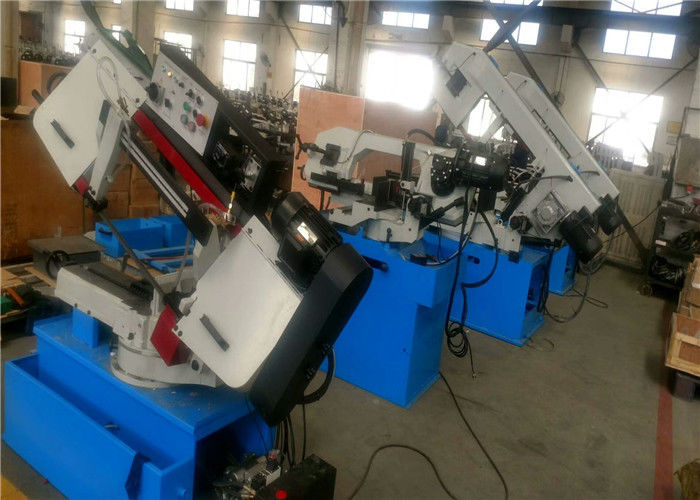

Removable Multi Angle Minitype Metal Wood Cutting Band Saw Machine
Band Saw For Metal Cutting BS-1018RH Portable Band Saw Machine BS1018
Coolant pump ensures longer service life of saw blade band saw
Scale on the vise allows easy adjustments for angle cuts
Quick adjusting vise for angular cuts-the saw frame swivels, not the material
| Model | BS-1018R | |
| Capacity | Circular@90° | 254mm(10″) |
| Rectangular@90° | 160×406mm(6.3″×16″) | |
| Circular@45° | 170mm(6.7″) | |
| Rectangular@45° | 160×190mm(6.3″×7.5″) | |
| Blade speed | @60Hz | 35,60,88,115MPM |
| @50Hz | 29,50,73,95MPM | |
| Blade size | 27×0.9×3215mm | |
| Motor power |
1.5kW 2HP(3PH)
|
|
| Driver | V-belt | |
| Packing size | 189×84×134cm | |
| N.W/G.W | 300/360kg | |
Main Features:
Reasonable structure, stable performance, simple and reliable operation, narrow incision, high efficiency, energy-saving.
Performance and configuration:
Mechanical, hydraulic and electrical integrated control, reliable movement, stable operation;
Worm gear reducer is adopted;
The workpiece is clamped by hydraulic pressure;
Cutting feed: hydraulic stepless speed regulation;
Hydraulic components: Handa, Boxin;
Electrical components: transformers are made by China Tianzheng or Pujiang Xingcheng, buttons and contactors are made by China Zhengtai.
