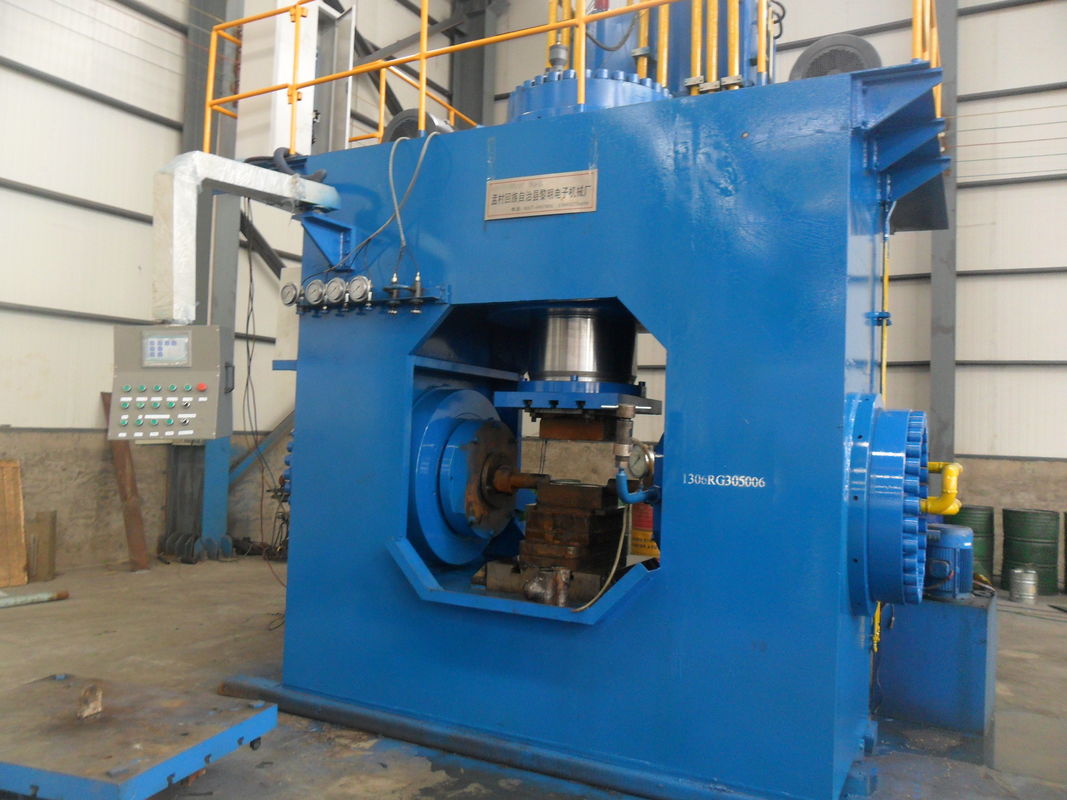

2 Inch To 24 Inch Carbon Steel CE Certification Tee Forming Machine
Tee molding machine is used for carbon steel, stainless steel pipe into a special hydraulic machine, suitable for a variety of specifications of tee pipe fitting joint extrusion molding change the position of the cylinder, can be processed and manufactured 90 degrees, 135 degrees and other angles of tee pipe joint.The diameter of the tee is 21mm-630mm, and the wall thickness is 3mm-20mm.Hydraulic system of three-way forming machine is hydraulic power mechanism installed on the top of the fuselage, by pump, motor, cartridge valve integration block, fuel tank and other components, the power mechanism includes oil filtration, oil temperature oil level display and other devices.
| Specification | Unit | HYT-315 | HYT-500 | HYT-1000 | HYT-1500 | HYT-2000 | HYT-4000 | |
| Tee OD range | lnch | 1~4 | 3~6 | 4~8 | 8~12 | 10~16 | 20~28 | |
| Master cylinder |
Normal force | KN | 3150 | 5000 | 10000 | 15000 | 20000 | 40000 |
| Work stroke | mm | 450 | 480 | 610 | 670 | 800 | 1200 | |
| Go down speed | mm/s | 60 | 80 | 80 | 80 | 80 | 80 | |
| Work forward speed | mm/s | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | |
| Return stroke speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 | |
| Side cylinder |
Normal force | KN | 3150 | 5000 | 8000 | 12500 | 18000 | 40000 |
| Work stroke | mm | 300 | 320 | 340 | 360 | 410 | 500 | |
| Advance speed | mm/s | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | |
| Return stroke speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 | |
| Push-out cylinder |
Normal force | KN | 300 | 400 | 500 | 630 | 1500 | 2000 |
| Work stroke | mm | 300 | 300 | 400 | 450 | 550 | 700 | |
| Workbench effective area |
Right and left | mm | 550 | 750 | 900 | 1200 | 1400 | 1800 |
| Front and back | mm | 400 | 580 | 800 | 1000 | 1200 | 1500 | |
| The max distance from slide block to workbench | mm | 190 | 250 | 370 | 460 | 520 | 650 | |
| Center high of side cylinder | mm | 980 | 1100 | 1350 | 1800 | 1900 | 2500 | |
| Motor power | KW | 30 | 45 | 74 | 110 | 220 | 330 | |
Tee Elbow cold forming machine of model YSLT100A could be designed and manufactured for manufacturing equal and reducing tees of sie from 1/2" to 4" with thickness from SCH10 to XXS of stainless steel, carbon steel, alloy steel, monel, nickel alloy, but the normal model just will be designed and manufactured for manufacturing maximum thickness up to SCH80.
Main features:
1. It is constructed with strong metal frame with good apearence and stable functioning.
2. It has individual power construction and electrical system,adopts reliable PLC button centralized control, use programmed touch screen operation system, apply proportional valve to regulate pressure, it will pressurized in curve, which can be conveniently adjusted and operated both manually and automatically.
3. Our specical designing could reduce the blank size of raw material.
