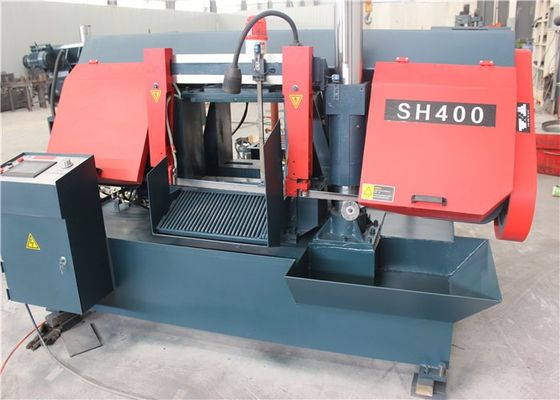

Hydraulic Full Automatic 60m/Min Metal Cutting Band Saw Machine

I'm Online Chat Now

Hydraulic Full Automatic 60m/Min Metal Cutting Band Saw Machine

small.img.alt small.img.alt small.img.alt

Large Image :  Hydraulic Full Automatic 60m/Min Metal Cutting Band Saw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEI YAN
Certification: CE
Model Number: SH-260

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden packing or according to the customer's requests
Delivery Time: 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2 sets per month
Detailed Product Description
Cut Capcity: W*H (mm) Round 260 Square260*260 Bundle Cutting: W*H (mm) Max.200*90 Min.100*20
Saw Belt Size(mm): 3505*27*0.9 Belt Line Speed(m/min): 40/60/80
Main Generator Power(kw): 2.2 Hydraulic Generator Power(kw): 0.75
Packing Dimensions: L*M*H 1750*2200*1450 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hydraulic Weights Of Machine (kgs): 1100
High Light:

60m/min metal cutting band saw machine


2.2KW metal cutting band saw machine


60m/min band saw cutting machine

High Precision HydraulicFull Automatic Cutting Metal Cutting Band Saw Machine


Type SH-260
Cut capcity W*H (mm) round 260
Bundle cutting W*H (mm) Max.200*90
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 40/60/80
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hand
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 1600
Packing dimensions(mm) L*M*H 1750*2200*1450


1. Purpose
In order to guide the maintenance of the sawing machine, extend the service life of the sawing machine, and ensure that the products produced meet the specified requirements, this instruction is specially formulated.

2. Scope
This instruction is applicable to the maintenance of all sawing machines in the company.

3. Responsibilities
3.1 The production department is the centralized management department of this instruction. A kind of
3.2 the operator of the sawing machine of the production department shall be responsible for the maintenance of the sawing machine used, and make maintenance records as required.

3.3 the equipment manager of the production department is responsible for supervising and inspecting the maintenance work of the saw operator.
4. Procedure
4.1 maintenance content
4.1.1 daily maintenance
a. Sufficient lubricating grease (oil) for lubricating parts
b. The transmission mechanism operates normally, and the fastening bolts of all parts are not loose;

c. the safety protection device is complete and reliable
d. The motor operates normally, the saw blade is moderately tight, and there is no obvious vibration and noise; e. check whether the hydraulic system pressure is within the rated range, and the instrument indication is sensitive and reliable; F. clean the working vise, guide frame, and sawdust in the front and rear wheel boxes before and after work; g. clean the inside and outside of the machine tool without oil stain.

4.1.2 weekly maintenance
a. Check the operation of saw blade and adjust the verticality, pressure and clearance according to the situation
b. Check whether the fastening bolts of each transmission mechanism are loose, whether the connection is reliable, and whether there is scratch or noise;

c. check whether the coolant level is higher than 1 / 2 of the oil level, and if it is less than 1 / 2, supplement it
d. The motor shall be fixed and operated reliably and stably, the air vane shield shall be intact and free of dust, noise and overheating;

e. the inside and outside of the distribution cabinet shall be cleaned; the peripheral electrical equipment such as buttons, sensors and electrical control boxes shall be free of oil and dust;
f. check whether the cable is damaged, the main engine is grounded reliably, and the sockets and pins are loose;
g. check the hydraulic system oil The position is high or low, and it shall be supplemented in time when it is insufficient.

Hydraulic Full Automatic 60m/Min Metal Cutting Band Saw Machine 0Hydraulic Full Automatic 60m/Min Metal Cutting Band Saw Machine 1
