0.09kw Double Column Horizontal Cnc Bandsaw Cutting Machine

I'm Online Chat Now

0.09kw Double Column Horizontal Cnc Bandsaw Cutting Machine

small.img.alt small.img.alt small.img.alt small.img.alt

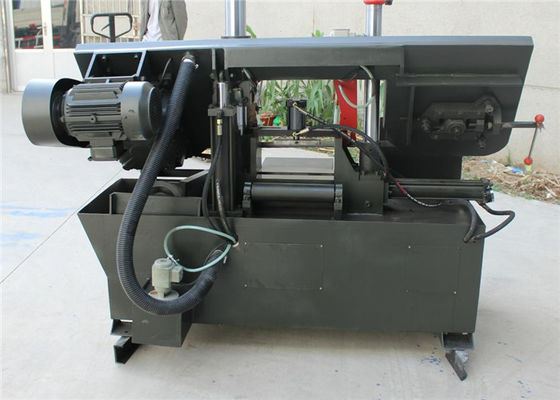

Large Image :  0.09kw Double Column Horizontal Cnc Bandsaw Cutting Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: GZ4230

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Cooling Generator Power (kw): 0.09
Working Clamp Style: Hydraulic Saw Belt Tighten Style: Hand
Loading Style: Extra Roller Name: Double Column Horizontal Band Sawing Machine
High Light:

double column cnc bandsaw cutting machine


horizontal cnc bandsaw cutting machine


double column bandsaw machine cnc

Double Column Horizontal Band Sawing Machine 2021 from China​



Supply Ability
Supply Ability
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
china main Port


Operation regulation of sawing machine
1. The operators are the employees who have received professional training in sawing machine operation. Chinese style
2. Employees who have not been trained or carefully read this specification are not allowed to operate the sawing machine. Those who violate this specification will be responsible for the consequences. 3. Check before startup
(1) Confirm whether the power cord is in good condition. A kind of
(2) Make sure that the starting of the sawing machine will not affect the surrounding safety.

(3) safe operation
(4) Turn on the cooling water power supply and confirm whether there is cutting fluid. If not, add it.

(5) adjust the speed control handle of the sawing machine to the rising position, turn on the power supply of the saw bow, and the saw bow starts to rise. After it stops, clamp the saw material on the table, then adjust the speed control handle to the falling position, and the saw bow will fall. Pay attention to the control of the falling speed. When the saw blade is lowered to the position close to the saw material, adjust the handle to the saw bow stop, turn on the power supply of the saw bow, move the saw bow, and adjust the handle to the appropriate falling position Position, turn on the cutting fluid, start sawing, pay attention to the lowering speed of the saw bow during sawing, if it is fast, slow down.

(6) board or board shall be used for the surface of the saw to prevent from being pinched, and the saw shall be placed flat to prevent the cut from being vertical. A kind of
(7) The operator is strictly prohibited to place his hand, head or any part of his body under the saw bow; any part of his body is strictly prohibited to be within 20cm from the saw bow. A kind of
(8) The operator shall know the saw size in detail before sawing, and measure whether the cutting size is accurate before cutting the clamped material.
4. Equipment maintenance
(1) After using, the user shall stop all the power supply of the saw, clean the equipment, remove the saw foam, clean the working site and surrounding environment, return the tools and fixtures
(2) inject oil into the guide rail and the gear pair every day. A kind of
(3) Check whether all wires are in good condition every month, or replace them.
(4) change the hydraulic oil of the governor box every half a year

Type GZ4230
Cut capcity W*H (mm) round 300
square 300*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450
