Full Automatic Hydraulic Metal Cutting Double Column Bandsaw Machine

I'm Online Chat Now

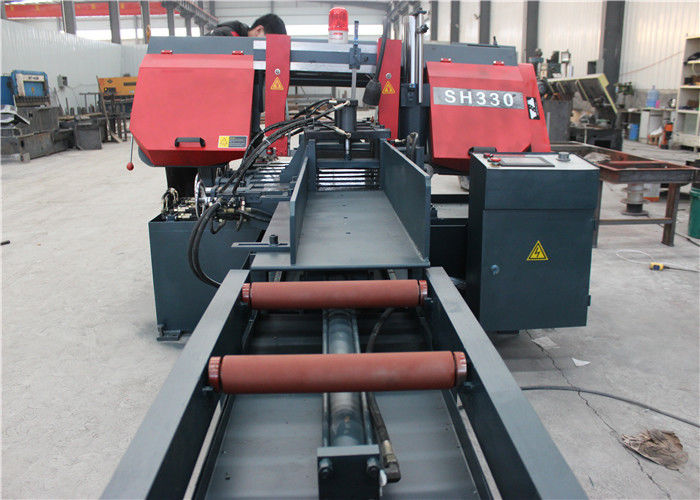

Full Automatic Hydraulic Metal Cutting Double Column Bandsaw Machine

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Full Automatic Hydraulic Metal Cutting Double Column Bandsaw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: SH400

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Main Generator Power(kw): 3
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Loading Style: Extra Roller
High Light:

metal cutting double column bandsaw machine

,

full automatic double column bandsaw machine

,

fully automatic bandsaw machine hydraulic

Full Automatic Hydraulic Metal Cutting Band Saw Machine from China



The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Type SH400
Cut capcity W*H (mm) round 400
square 400*400
Bundle cutting W*H (mm) Max. 400*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450







Full Automatic Hydraulic Metal Cutting Double Column Bandsaw Machine 0



4. Equipment maintenance
(1) After using, the user shall stop all the power supply of the saw, clean the equipment, remove the saw foam, clean the working site and surrounding environment, return the tools and fixtures
(2) inject oil into the guide rail and the gear pair every day. A kind of
(3) Check whether all wires are in good condition every month, or replace them.
(4) change the hydraulic oil of the governor box every half a year
