Home > products > Band Saw Machine > Horizontal Metal Pipe Profile 40m/Min Double Column Band Saw Machine

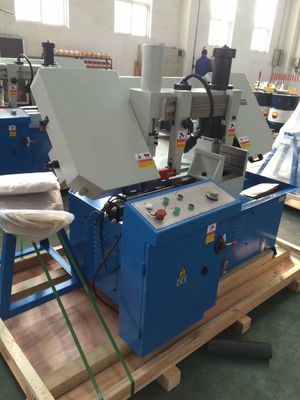

Horizontal Metal Pipe Profile 40m/Min Double Column Band Saw Machine

Product Details

Place of Origin: CHINA

Brand Name: HEIYAN

Certification: CE/ISO

Model Number: GZ4230

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: NEGOTIABLE

Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE

Delivery Time: 7-15DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 50SETS PER MONTH

Get Best Price
Product Details
High Light:

iso double column band saw machine

,

40m/min double column band saw machine

,

double column hydraulic bandsaw machine

Belt Line Speed(m/min):
40/60/80
Main Generator Power(kw):
3
Cooling Generator Power (kw):
0.09
Working Clamp Style:
Hydraulic
Saw Belt Tighten Style:
Hand
Loading Style:
Extra Roller
Name:
Double Column Horizontal Metal Pipe Profile Band Saw Machine
Certification:
CE
Belt Line Speed(m/min):
40/60/80
Main Generator Power(kw):
3
Cooling Generator Power (kw):
0.09
Working Clamp Style:
Hydraulic
Saw Belt Tighten Style:
Hand
Loading Style:
Extra Roller
Name:
Double Column Horizontal Metal Pipe Profile Band Saw Machine
Certification:
CE
Product Description

Double Column Horizontal Metal Pipe Profile Band Saw Machine



The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Type GZ4230
Cut capcity W*H (mm) round 300
square 300*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450



1, when the sawing is completed, it will automatically stop and raise the saw frame for high efficiency operation.
2, the saw belt can adjust the load to ensure that the band saw does not fatigue and the feed rate is steplessly changed, and can be adjusted to the best cutting effect.
3, when the sawing machine can cut the cutting speed according to the material structure properties, the saw blade can effectively improve the service life of the saw blade.
4, hydraulic tensioning saw blade (easy operation and improve work efficiency)
5, saw blade break automatically stop (safe)



Horizontal Metal Pipe Profile 40m/Min Double Column Band Saw Machine 0
