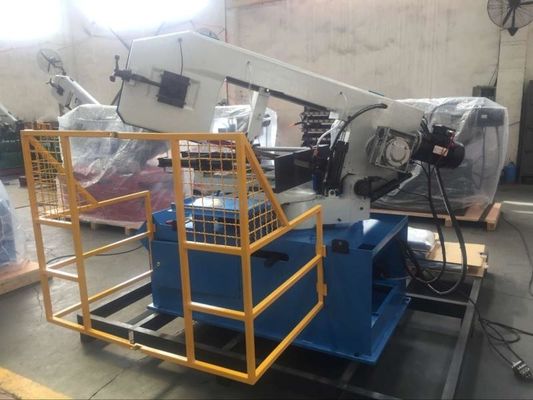

12 Inch Double Column Metal Cutting Big Bandsaw Machine

I'm Online Chat Now

12 Inch Double Column Metal Cutting Big Bandsaw Machine

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  12 Inch Double Column Metal Cutting Big Bandsaw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: GZ4230

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Main Generator Power(kw): 3
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Loading Style: Extra Roller
Name: 12 Inch Double Column Metal Cutting Band Saw Machine Certification: CE
High Light:

metal cutting big bandsaw machine

,

double column big bandsaw machine

,

big 12 inch bandsaw machine

12 Inch Double Column Metal Cutting Band Saw Machine



The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.


Type GZ4230
Cut capcity W*H (mm) round 300
square 300*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450



Q1: How to install?
A1:We adjusted machines well before we deliver. When customers receive them, you can work with them directly.

Q2:How to ensure the safety?
A2:There have the overload and over heat protection, it ensure working people safety.

Q3:How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.

Q4:what is the Delivery time?
A4: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.

Q5:Where is your company located?
A5:We are Chinese company. Our city is Hebei. It is the biggest seaport in the north of China.

Q6:Are there any requirements for the dealer?
A6:There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
