Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine

I'm Online Chat Now

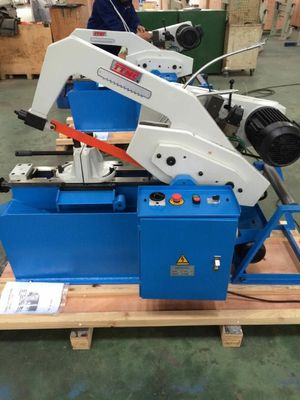

Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine

Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine
Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine

Large Image :  Horizontal Swivel Head Double Column Metal Cutting Bandsaw Machine

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: G300

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Main Generator Power(kw): 3
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Loading Style: Extra Roller
Name: Horizontal Swivel Head Double Column Metal Cutting Band Saw Machine Certification: CE
High Light:

double column metal cutting bandsaw machine

,

swivel head metal cutting bandsaw machine

,

40m/min horizontal metal cutting bandsaw machine

Horizontal Swivel Head Double Column Metal Cutting Band Saw Machine



The sawing wheel is divided into the upper sawing wheel and the lower sawing wheel; the lower sawing wheel is the driving wheel, the upper sawing wheel is the driven wheel, and the weight of the upper sawing wheel should be 2.5 ~ 5 times lighter than that of the lower sawing wheel.



① The thickness of the band saw blade shall be suitable for the matching band saw wheel. Avoid the use of large thickness saw blade for small wheel, which may cause fracture and injury.
② The saw teeth shall be sharp and the tooth depth shall not exceed 1 / 4 of the saw blade width.
③ The welding of the band saw blade shall be firm and smooth, with more than 3 joints. The length between the two joints shall be more than 1 / 5 of the total length, and the thickness of the joint shall be basically the same as that of the saw blade.


Type G300
Cut capcity W*H (mm) 90° round 300
      square 300*400
  45° round 280
        square 280*280
  60° round 280
        square 180*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450



1)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us, We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?
A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.

We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend yuo most suitable model!
